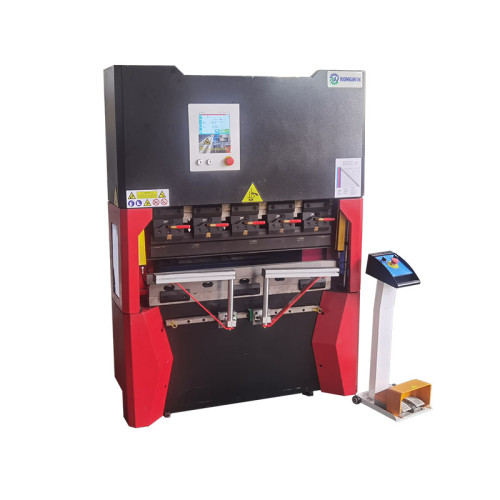

RONGWIN High-Precision 30T1000 CNC Hydraulic Press Brake Machine Small Stainless Steel Plate Bending with Motor Core Component

RONGWIN High-Precision 30T1000 CNC Hydraulic Press Brake Machine Small Stainless Steel Plate Bending with Motor Core Component

Price: US $7500-10000

Model: WD67K-series

MOQ: 1 set

Item specifics

Slider stroke (mm): 300

Throat depth (mm): 180

Workbench width (mm): 1000

Motor power (KW): 3

Core component warranty period: 1 Year

Review

Description

Basic product information

Introduction to Configuration

Product advantages

Packing & shipping

Technical Parameter

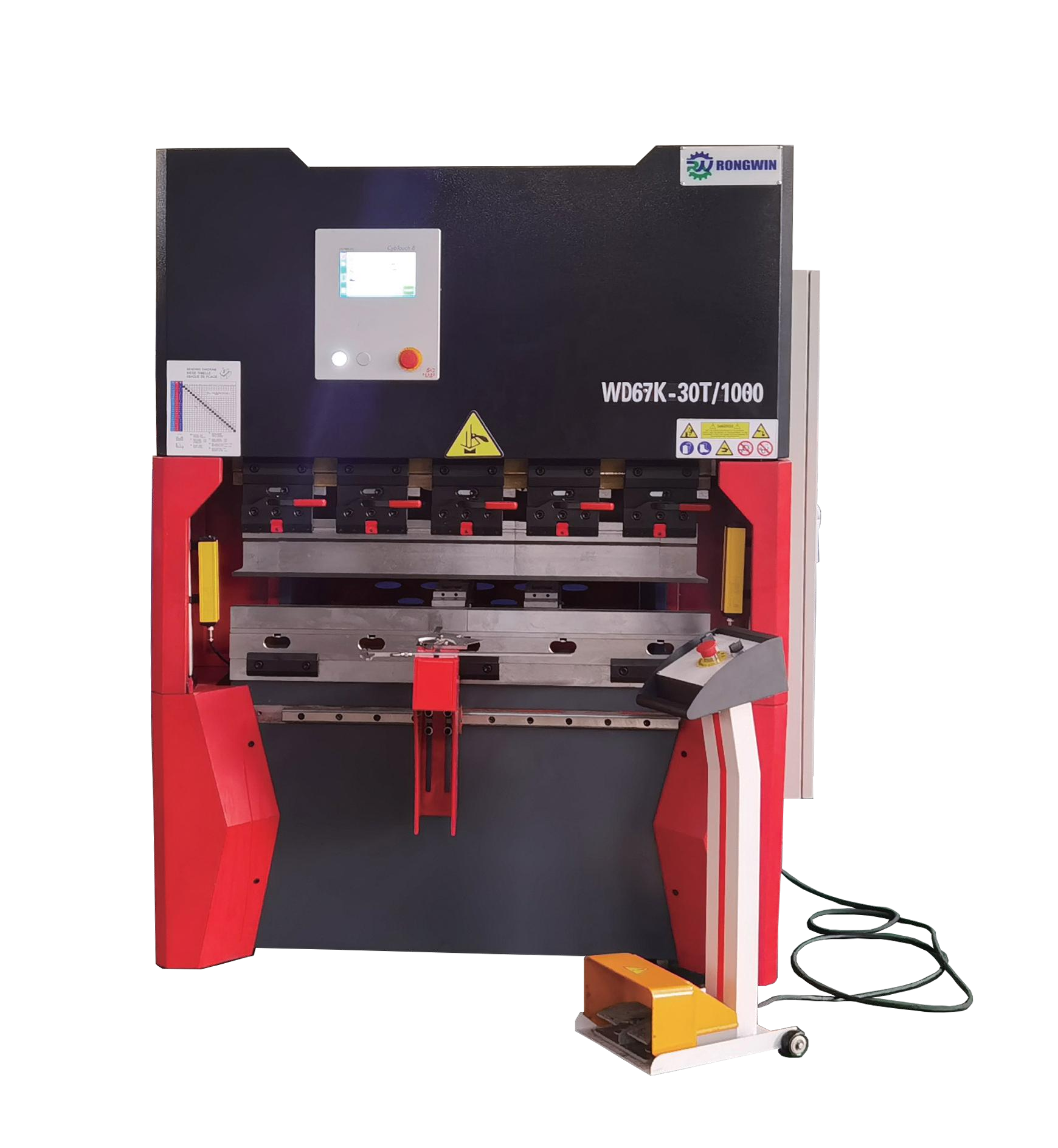

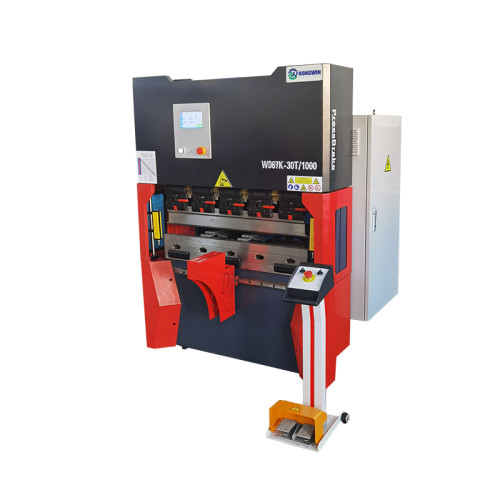

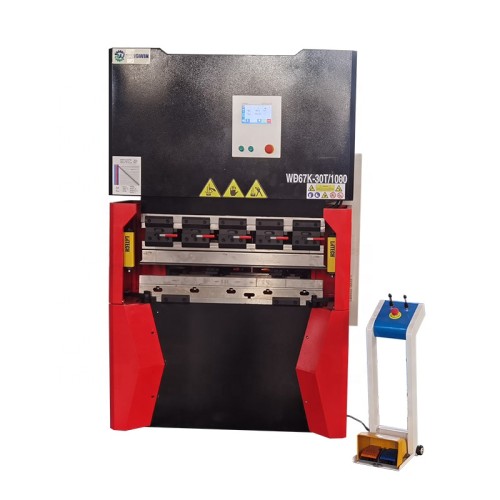

WD67K-series Torsion Bar Two Axis Hydraulic CNC Press Brake

Economical Sheet Metal Bending Machine with DA-41T Controller, easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

Controller: DELEM DA-41T

Electrics: Schneider Electric - France

Main Motor: Siemens Motor-Germany

Servo Motor: ESTUN

Foot Switch: KACON - South Kore

Hydraulic System: FIRST - USA

Oil Pump: FIRST-USA

Sealing Ring: PARKER- America

High Efficiency Motor - Class lE3

Tube Connector: EMB-Germany

Backgauge: SHAC -Taiwan

Grating Ruler: Fagor

Introduction to Configuration

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for Sheet Metal Bending Machine and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above.

DELEM NC Control System

DELEM DA-41T Control

1. Colour LCD display, 7" widescreen TFT, high brightness

2. 1024 x 600 pixels, 32 bit colour

3. Program memory for 100 programs,25 steps per program

4. Full touch screen control (PCT-touch)

5. Tool library

6. Beam stop control (Y)

7. Backgauge control (X)

8. Retract functionality

9. Manual movement of all axes

Why RONGWIN Hydraulic Press Brake?

Sheet Metal Bending Machine BackGauge System

Backgauge (X) are automatically control by CNC controller.

Button control R, Z1, Z2 axis.The buttons control up, down, left, and right, and can achieve the effect of 6+1 axes based on the twisting axis.

Punches & Dies

The Sheet Metal Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

Optional systems

E310P

1. Smart and Ergonomic Design: 10.1” intelligent screen, clear display, fastresponse, and integrated suspension for easy and elegant operation.

2. EasyOperation: New Ul, one-page programming, and quick function keys foruser-friendly experience.

3. Advanced Control: CAN bus motion control, simple wiring, accuratepositioning, and one-key recovery to reduce service costs.

4. Flexible Settings: Supports Chinese/English language and metric/imperial unitswitching.

5. Powerful Features: Y, X, R axis servo control, C axis compensation, portmonitoring, mold library, and safety functions.

Cybtouch 8P

1.Large, vivid and high-contrast fully touch screen

2. Simple pages, clear display, large keys

3.Complete programming allows eficient mass-production ofparts with multiple bends

4. Available in many languages

TP10S

1.Simple interface and easy operation

2.Support Chinese and English bilingual

3.System can systematically compensate the Y axis to achieve the correction of the bending angle

4.Lower die protection function, more secure

More Details of Sheet Metal Bending Machine

Hydraulic valve

Self lubricating ram guide plate

Main motor

Measurement

Backgauge

Front Support arm

Quick clip

Hydraulic Press Brake Technical Parameter

NO	Name	Parameter	Unit
1	Nominal force	300	KN
2	Worktable length	1000	MM
3	Distance between vertical	800	MM
4	Slider Travel	100	MM
5	Maximum open height	300	MM
6	Throat depth	180	MM
7	Throat depth	400	MM
