Advanced Sheet press brake WF67K-E | EIntegrating CNC and Hydraulic Press Brake Systems

Model: WF67K-E

Item specifics

Color: Red

Bending angle: 0-180 degrees

Repeat positioning accuracy: ±0.01mm

Bending length: 1600 mm - 14000 mm

Main motor power: 5.5 KW - 2x55 KW

Stroke: 500 mm - 1000 mm

Hydraulic System: ？

Tonnage: ？

Material Thickness and Width: ？

Review

s***y: 2024/7/3 14:18

"The accuracy and efficiency of the WF67K-E bending machine are amazing, which greatly improves our production efficiency." ——Saudi Arabian customer

Description

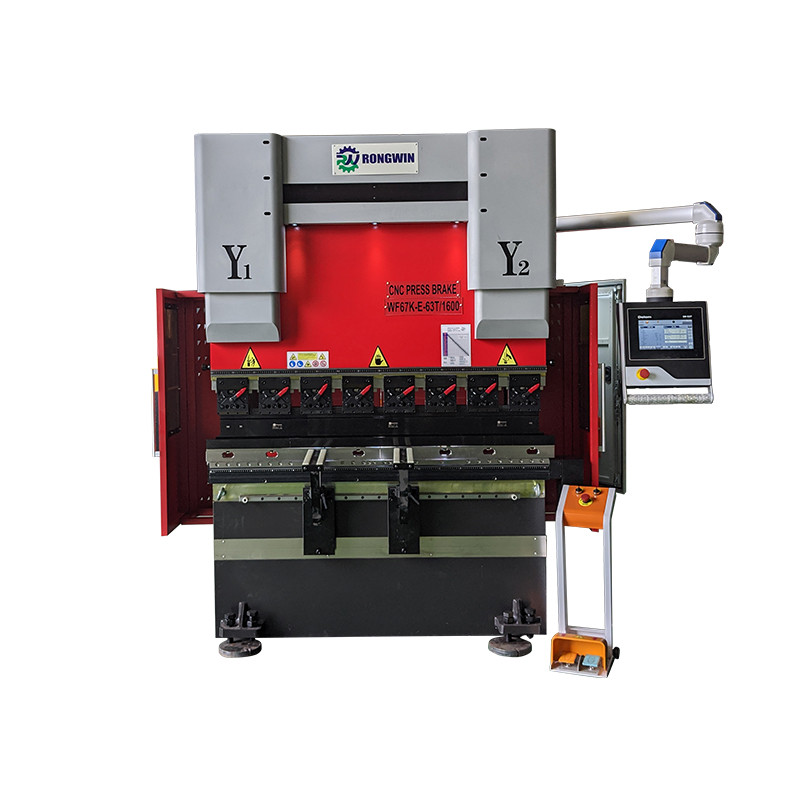

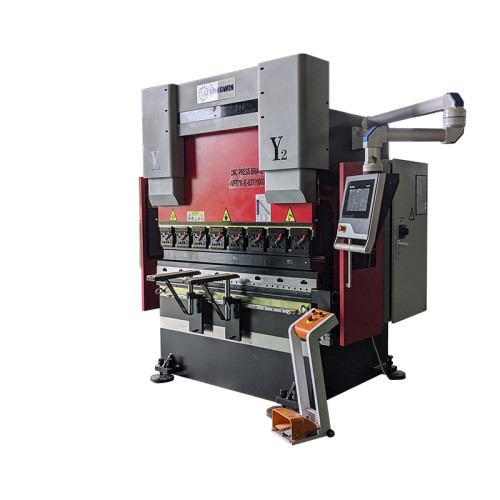

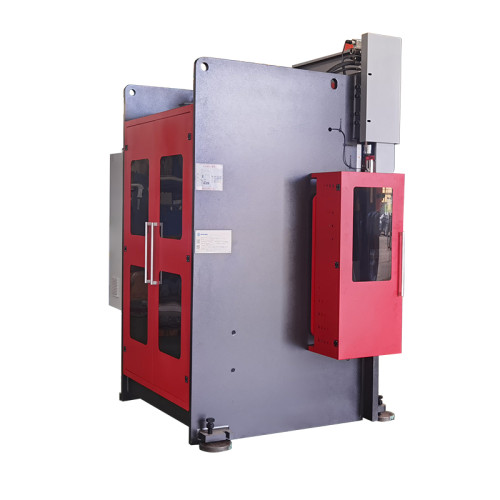

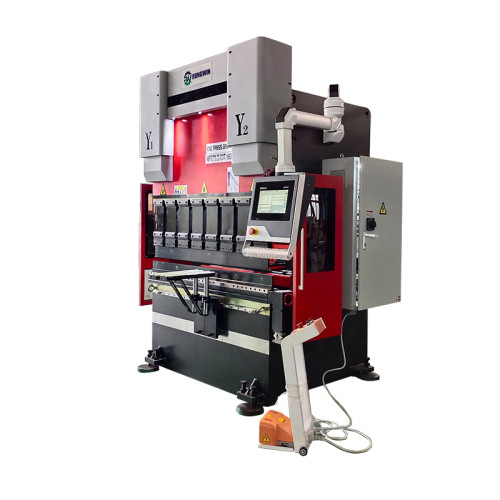

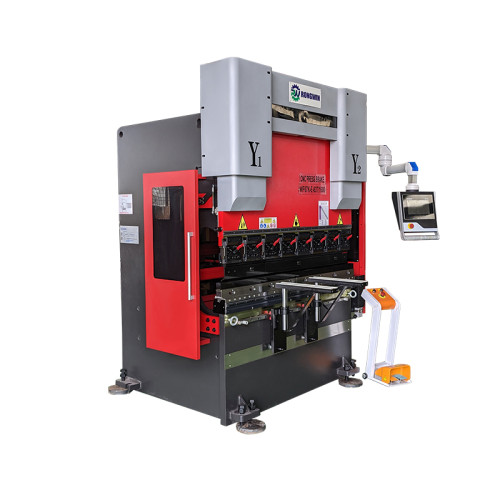

WF67K-E Sheet Bending Machine Overview

High Precision Bending Machine

The WF67K-E press brake adopts German imported electro-hydraulic servo valve and grating ruler closed-loop control to achieve high precision and high-speed operation. The whole machine adopts integral welding and aging treatment before overall processing to ensure accuracy and reliability.

The high-configuration DA69T system supports 3D and 2D graphic touch screen programming, 3D visualization, Windows application suite and multiple interfaces. Optional mechanical torsion compensation system and multi-machine linkage function can further improve bending accuracy and production efficiency.

Features:

1.

2.

3.

WF67K-E Sheet Bending Machine Technical Parameters

WF67K-E press brake series offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:

Parameter		Content
Bending angle：		0-180 degrees
Repeat positioning accuracy：		±0.01mm
Power requirement：		380V, 50Hz
Nominal pressure：		400 mm - 30000 mm
Bending length：		1600 mm - 14000 mm
Pole distance：		1260 mm - 11000 mm
Throat depth：		300 mm - 700 mm
Sliding stroke：		150 mm - 400 mm
Opening height：		420 mm - 1000 mm
Main motor power：		5.5 KW - 2x55 KW
Stroke：		500 mm - 1000 mm
Minimum weight：		3800 Kg (maximum model weight depends on specific configuration)

Parameters within this range reflect the wide applicability of the WF67K-E series press brakes in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.

WF67K-E Sheet Bending Machine Details Display

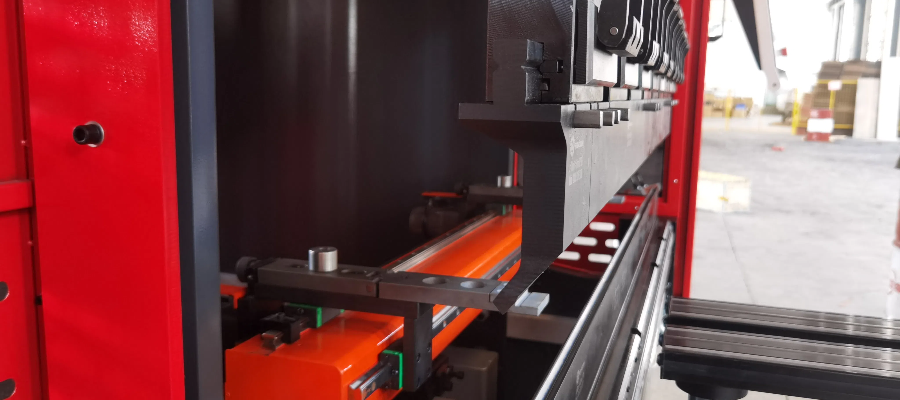

Rear Stopper

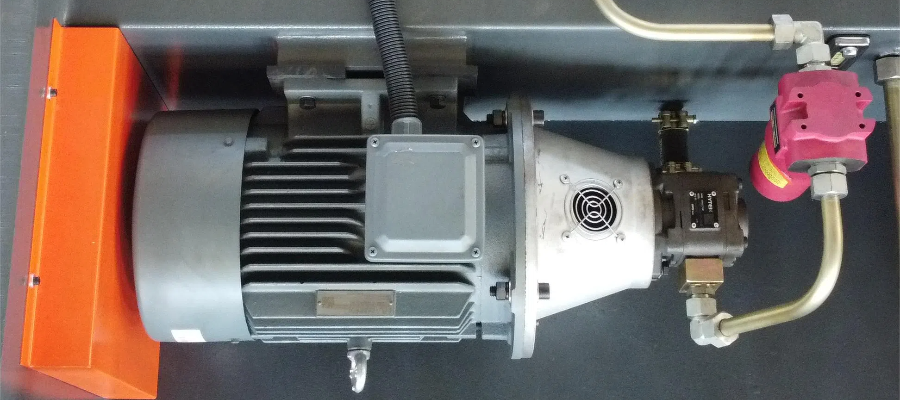

Main Motor

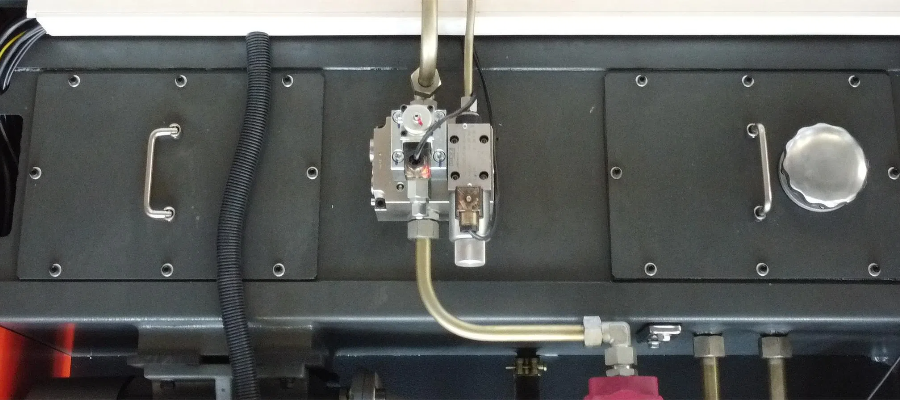

Oil Pump

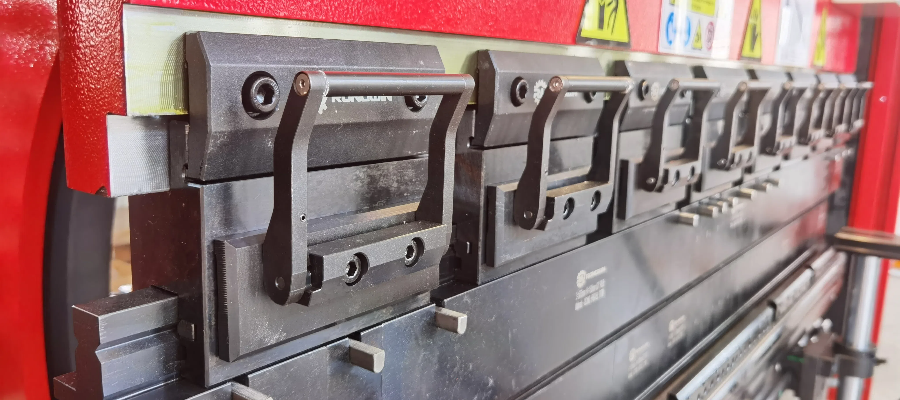

Quick Clamp

Upper Die

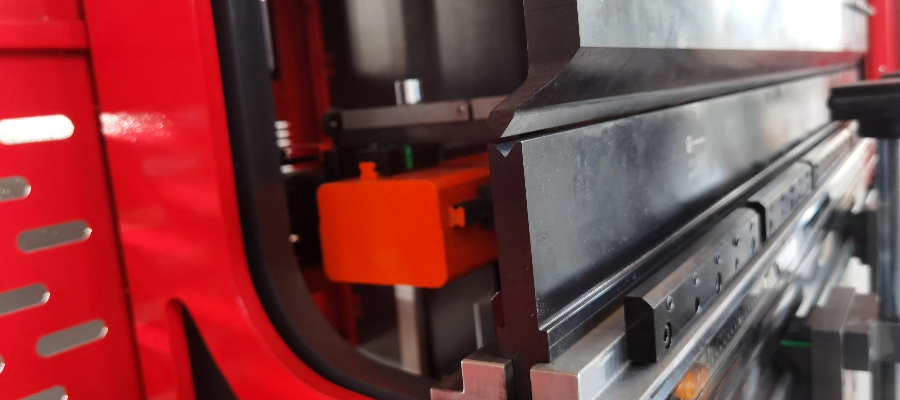

Lower Die

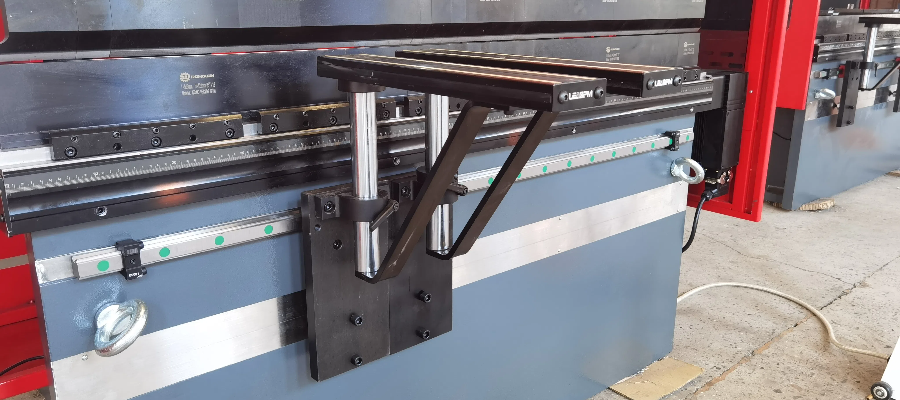

Front Support

Grating Ruler

WF67K-E Sheet Bending Machine Applicable Scene

WF67K-E Sheet Bending Machine FAQ

What types of materials can the WF67K-E Sheet Bending Machine?

Our press brake can handle a wide range of materials, such as steel, aluminum, copper, and stainless steel, ensuring versatility for different manufacturing applications.

Do you offer training for operators using the Sheet Bending Machine?

We offer extensive training programs for machine operators, covering setup, operation, safety protocols, and troubleshooting. Our training is valid for the lifetime of the machine, and new training sessions can be provided as needed for equipment upgrades and modifications.
