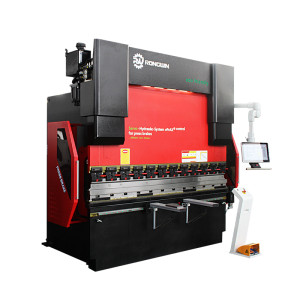

WF67K-M Electro-Hydraulic Servo CNC Press Brake | Precise and can bend to meet various needs
- Price
- US $4800-5000
- Model
- WF67K-M 80T/2500
- MOQ
- 1 piece
Item specifics
- color
- Red and black
- Machine Type
- Hybrid
- Workbench length (mm)
- 2500 mm
- Degree of automation
- Fully Automatic
- Degree of oldness
- New
- country of origin
- China
- Machinable materials
- Mild Steel，Stainless Steel，Aluminum
- Core selling point
- Energy saving
- Warranty
- 3 years
- Marketing Type
- New Product 2024
- Video factory inspection
- Provided
- Mechanical test report
- Provided
Review
Description

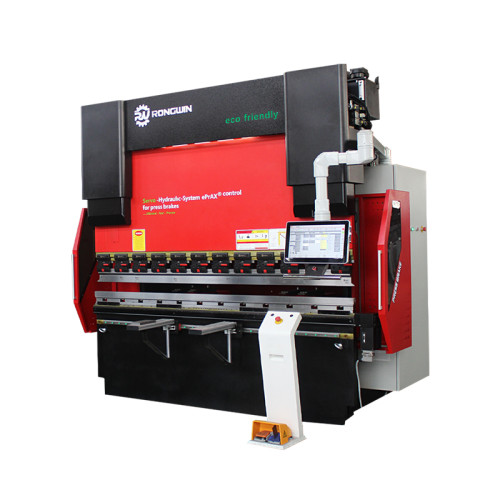

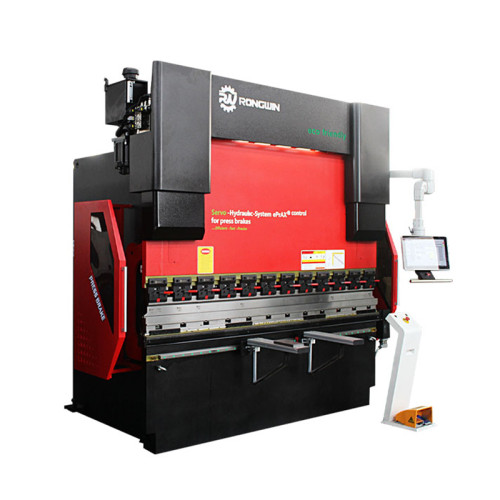

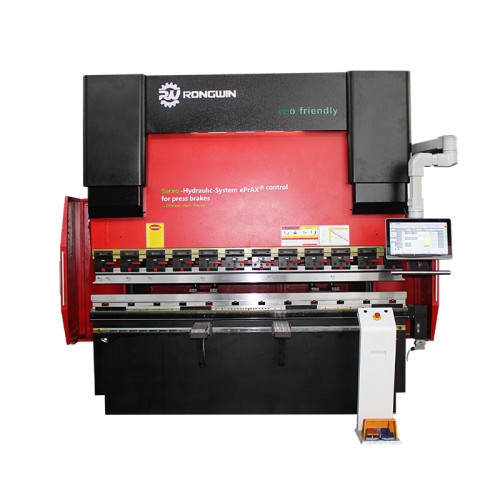

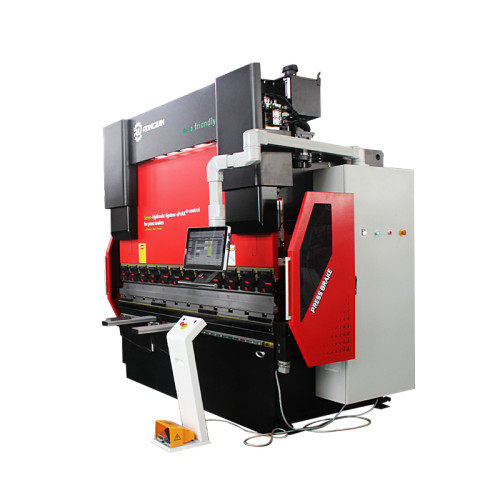

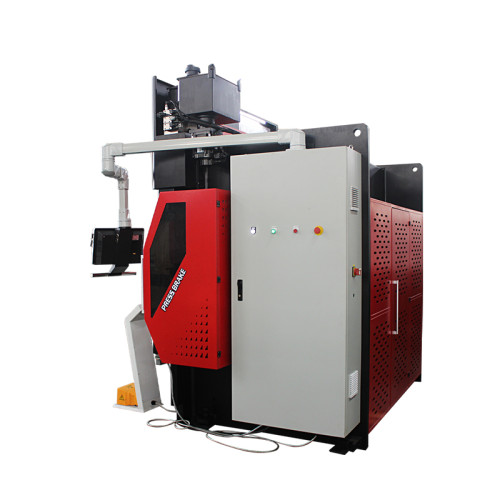

WF67K-M Hydraulic Servo CNC press brake
High Precision Press Brake Machine
ePrAX control is a newly developed electro-hydraulic control scheme, whichcombines the advantages of two driving technologies: strong hydraulic powerand durability, compact design without external pipelines, and directly installedon the cylinder, cleaner and leak-free.
The system converts electrical signal transmission is carried out between CNC controller into mechanical linear motion. In order to accomplish thismotion, signal transmission is carried out between CNC controller of machinetool and motor drive controller. The synchronous cylinder controls thefollowing work and fast running according to the preset working curve .
Avariable speed servo pump unit is used to drive and control the position ofthe bending tool and the bending force in the bending process.

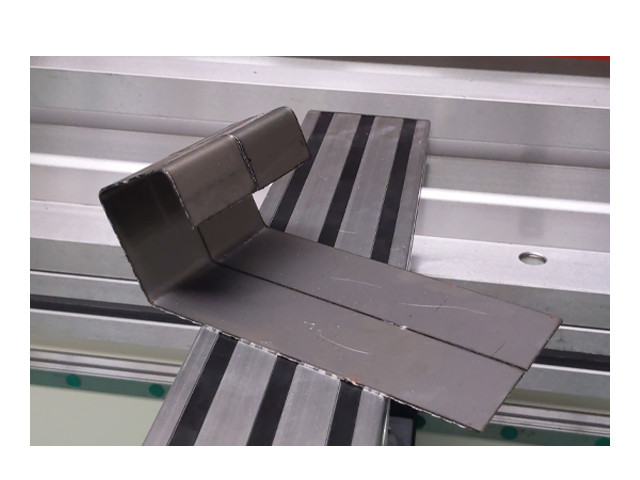

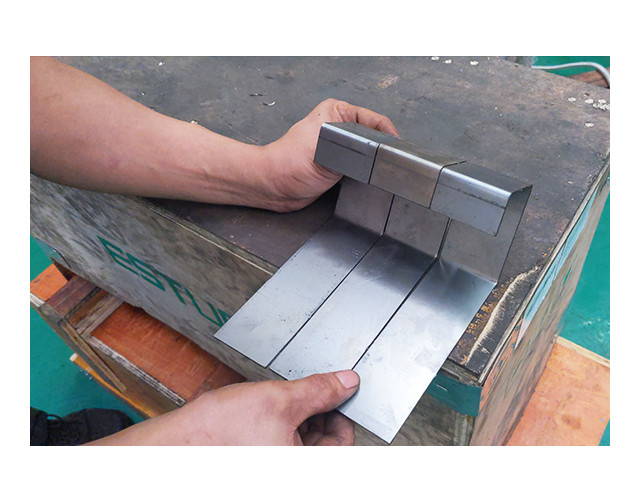

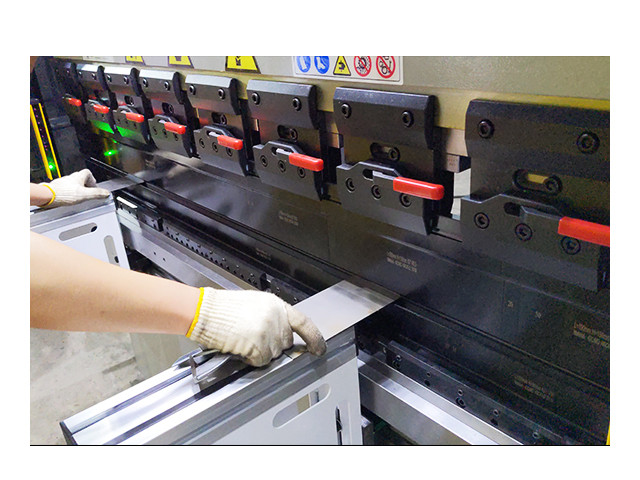

WF67K-M Hydraulic Servo CNC press brake Application Scenario
WF67K-M Hydraulic Servo CNC press brake Advantages
Feature 1

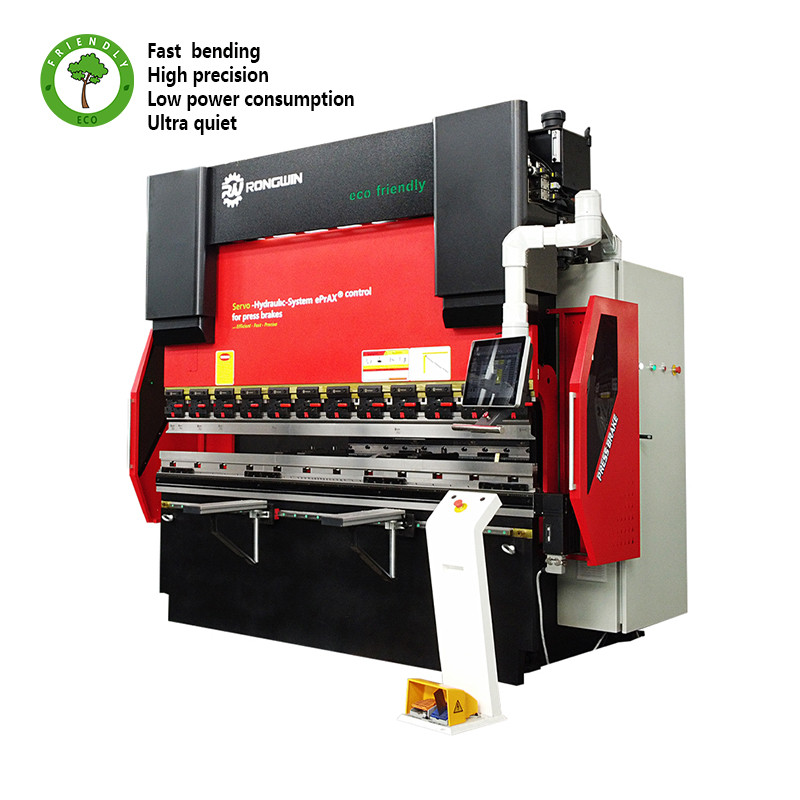

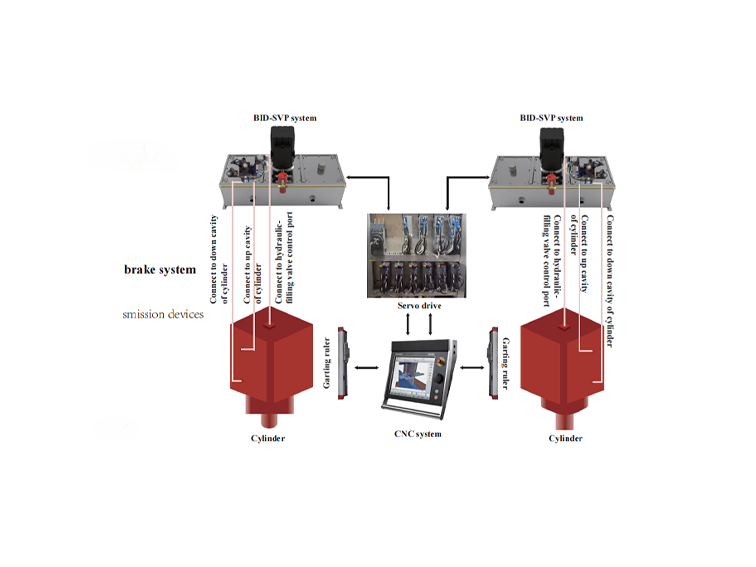

D-SVP high-performance dual-servo electro-hydraulic servo press brake system

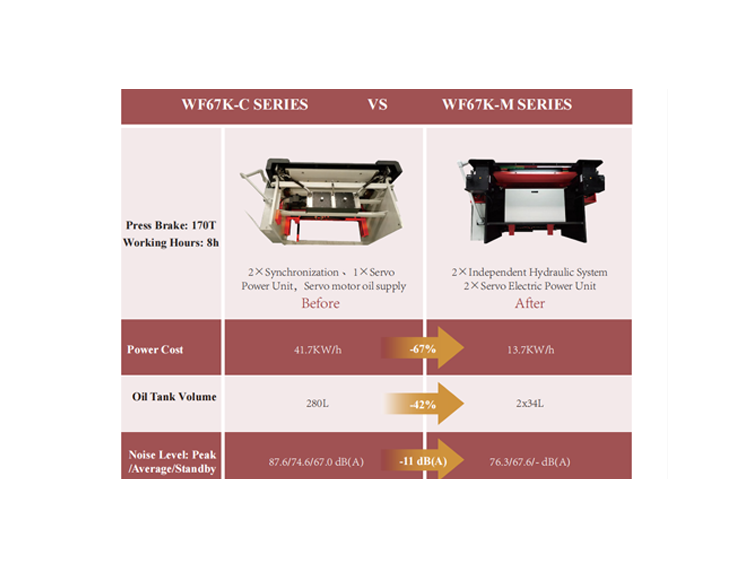

D-SVP system advantages
Economy - 60% less electricity consumption compared to traditional transmission devices
High - 30% higher work efficiency (reduced cycle time)
Accurate - more accurate positioning accuracy, up to 5 um
Quiet - reduced noise, quieter machine operation
Less - very little hydraulic oil is used, only 30% of the traditional one
Easy - easier machine manufacturing, easier maintenance, lower failure rate
Feature 2
Hybrid-type and electric-hydraulic press brakes each have their unique advantages, mainly differing in their energy efficiency, precision, and maintenance needs:
Hybrid Type:
Efficiency: Operates with a hybrid of electric and hydraulic power, providing higher energy efficiency compared to fully hydraulic models, as it only activates the hydraulic system when needed.
Precision: Known for high precision, with accurate force and position control ideal for intricate metal bending applications.
Maintenance: Generally has lower maintenance needs due to less hydraulic component use, reducing oil consumption and system wear.
Electric-Hydraulic Type:
Power and Force: Uses a purely hydraulic system powered by electricity, making it suitable for handling larger or thicker materials due to the high force output.
WF67K-M press brake Machine Technical Parameters
WF67K-M press brake series offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Model
WF67K-series | Nominal
Pressure
(mm) | Bending
Length
(mm) | Poles
distance
(mm) | Throat
depth
(mm) | SlipperStroke(mm) | Max
Opening
Height
(mm) | Main
motor
(KW) | Travel
(mm) | Weight
(Kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 500 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 500 | 4800 |
80T/2500 | 800 | 2500 | 2000 | 350 | 200 | 480 | 7.5 | 600 | 5700 |
|
100T/3200
|
1000
|
3200
|
2700 | 400 |
200/250
|
480/520 | 7.5 | 600 | 8500 |
|
100T/4000
|
1000
|
4000
|
3600 | 400 |
200/250
|
480/520 | 7.5 | 600 | 9300 |
|
160T/3200
|
1600
|
3200
|
2700 | 400 |
200/250
|
480/520 | 11 | 600 | 9500 |
160T/4000 | 1600 | 4000 | 3600 | 400 | 200/250 | 480/520 | 11 | 600 | 12100 |
|
200T/3200
|
2000
|
3200
|
2700 | 400 |
250
|
530 | 15 | 600 | 11000 |
200T/4000 | 2000 | 4000 | 3600 | 400 | 250 | 530 | 15 | 600 | 13500 |
250T/3200 | 2500 | 3200 | 2700 | 400 | 250 | 530 | 18.5 | 600 | 13000 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 600 | 15500 |
250T/5000 | 2500 | 5000 | 4300 | 400 | 250 | 530 | 22 | 600 | 18000 |
300T/3200 | 3000 | 3200 | 2700 | 400 | 300 | 580 | 22 | 600 | 19200 |
300T/4000 | 3000 | 4000 | 3600 | 400 | 300 | 580 | 22 | 600 | 22500 |
400T/4000 | 4000 | 4000 | 3600 | 400 | 320 | 580 | 30 | 600 | 25500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 600 | 31500 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 320 | 590 | 37 | 600 | 34500 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 320 | 590 | 37 | 800 | 43500 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 320 | 590 | 37 | 800 | 53000 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 320 | 640 | 45 | 800 | 57000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 320 | 640 | 45 | 800 | 68000 |
600T/7000 | 6000 | 7000 | 6000 | 500 | 320 | 640 | 45 | 800 | 79000 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 800 | 90000 |
800T/7000 | 8000 | 7000 | 6000 | 600 | 400 | 800 | 55 | 800 | 105000 |
800T/8000 | 8000 | 8000 | 7000 | 600 | 400 | 800 | 55 | 800 | 120000 |
1000T/6000 | 10000 | 6000 | 5000 | 600 | 400 | 800 | 2x37 | 800 | 100000 |
1000T/8000 | 10000 | 8000 | 6900 | 700 | 400 | 800 | 2x37 | 800 | 130000 |
1000T/10000 | 10000 | 10000 | 8000 | 700 | 400 | 800 | 2x37 | 800 | 150000 |
1200T/6000 | 12000 | 6000 | 4220 | 700 | 400 | 1000 | 2x45 | 1000 | 130000 |
1200T/7000 | 12000 | 7000 | 5220 | 700 | 400 | 1000 | 2x45 | 1000 | 160000 |
1600T/6000 | 16000 | 6000 | 4900 | 700 | 400 | 1000 | 2x55 | 1000 | 150000 |
1600T/7000 | 16000 | 7000 | 5900 | 700 | 400 | 1000 | 2x55 | 1000 | 170000 |
1600T/8000 | 16000 | 8000 | 6900 | 700 | 400 | 1000 | 2x55 | 1000 | 190000 |
1600T/10000 | 16000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 210000 |
2000T/8000 | 20000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | 260000 |
2000T/10000 | 20000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 290000 |
2000T/12000 | 20000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | 320000 |
2000T/14000 | 20000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | 350000 |
3000T/8000 | 30000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/10000 | 30000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/12000 | 30000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/14000 | 30000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
Parameters within this range reflect the wide applicability of the WF67K-Mseries press brakes in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
WF67K-M press brake Machine Details Display

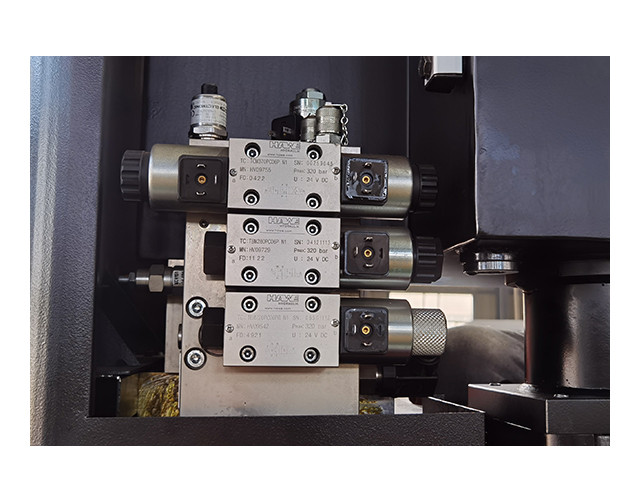

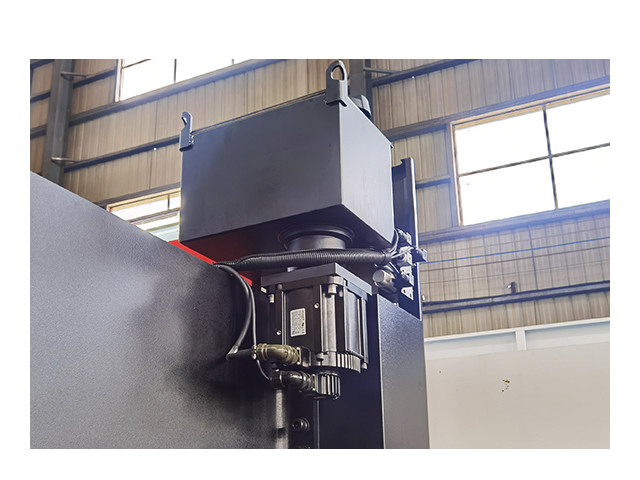

Hydraulic valve group

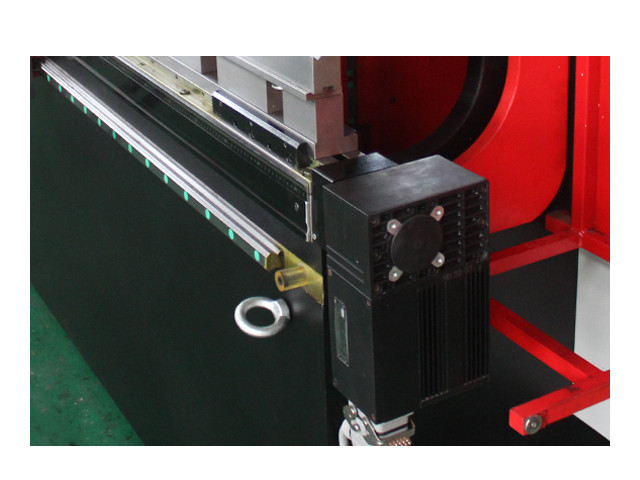

Main motor x2
Stop finger

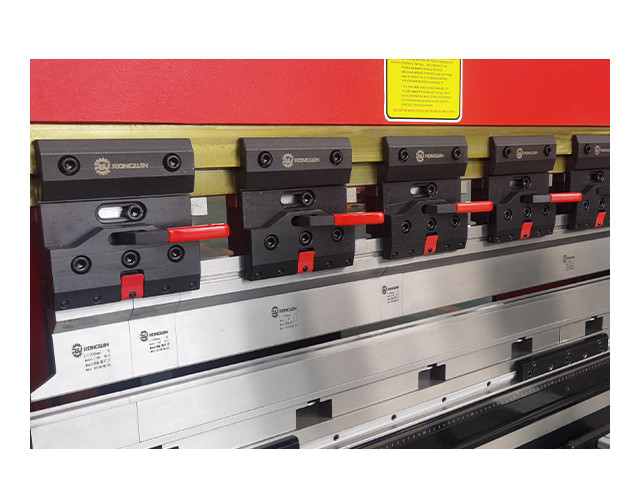

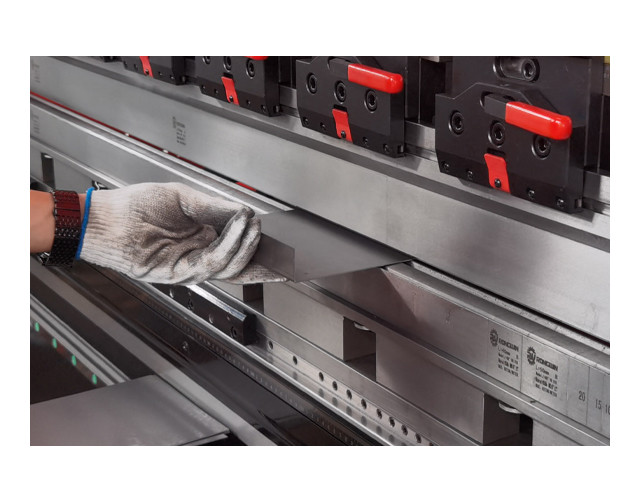

Fast clamp

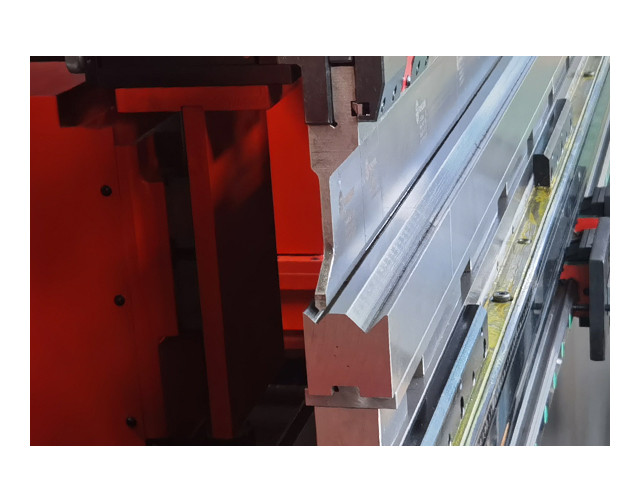

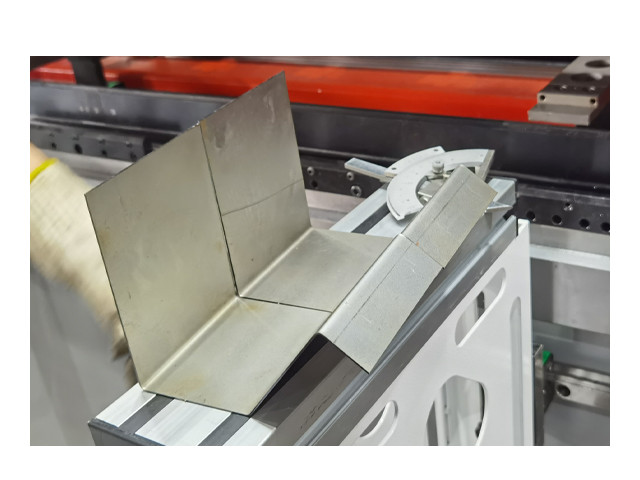

Press brake tooling
Crowning table

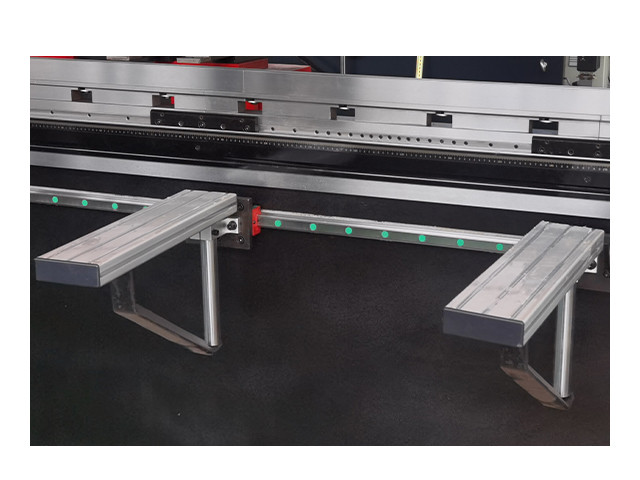

Front support

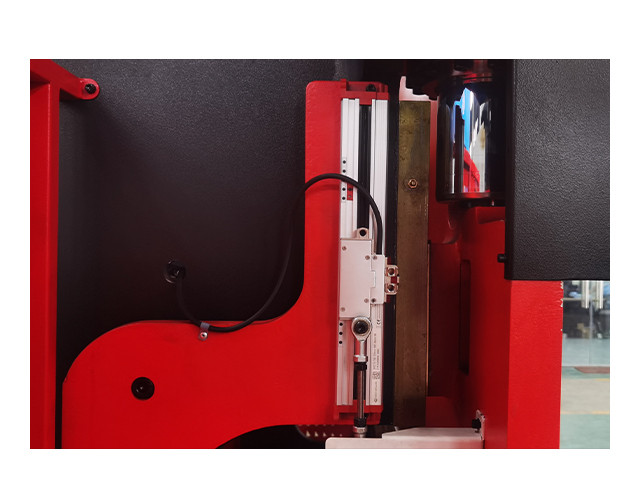

Grating ruler
WF67K-M press brake Machine FAQ
What is the WF67K-M press brake?
The WF67K-M series is a Hybrid CNC Press Brake that combines hydraulic and electric drive systems to deliver high precision, energy efficiency, and versatile bending capabilities for a wide range of metal sheet applications.
What is the warranty for the WF67K-M press brake?
The WF67K-M press brake typically comes with a one-year warranty for parts and labor, with extended warranties available depending on the region or specific machine configuration.
What are the key features of the WF67K-M press brake?
1.Hybrid Drive System: Combines hydraulic and electric components for better energy efficiency and faster operations.

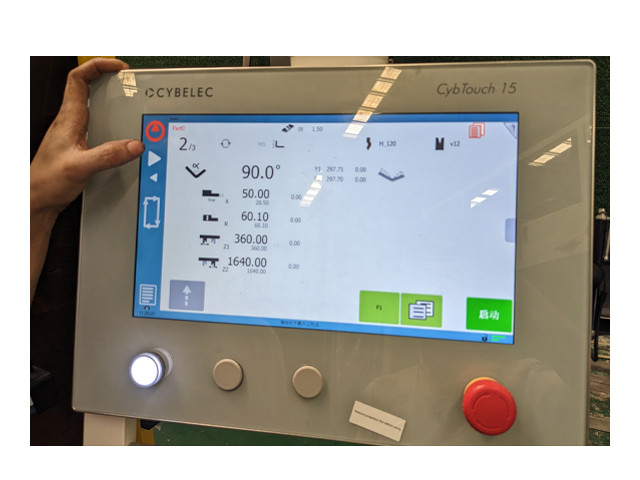

2.Advanced CNC Control: Equipped with a CNC system for accurate, easy-to-use multi-axis control (X, Y1, Y2, R, Z1, Z2).
3.High Precision: Delivers consistent, high-quality bending results across various materials and thicknesses.
4.Durability: Built to last with high-quality materials and a robust frame that can handle heavy-duty production.
5.Safety Features: Includes safety light curtains, emergency stop buttons, and protective shields for operator protection.
What bending capacities are available with the WF67K-M?
The WF67K-M series offers different tonnages and bending lengths to meet various needs:
1.Maximum Bending Force: Up to 250 tons.
2.Bending Length: Options available up to 4100mm or more.
Customization: Available in different sizes and configurations based on production requirements.
