RONGWIN Mini Press Brake 30T | Easy to use and Suitable for Creating Complex Shapes and Designs
- Price
- US $7000-11000
- Model
- WD67K-series 30T 1000
- MOQ
- 1 set
Item specifics
- Slider stroke (mm)
- 300
- Throat depth (mm)
- 180
- Workbench width (mm)
- 1000
- Motor power (KW)
- 3
- Core component warranty period
- 1 Year
Review
Description

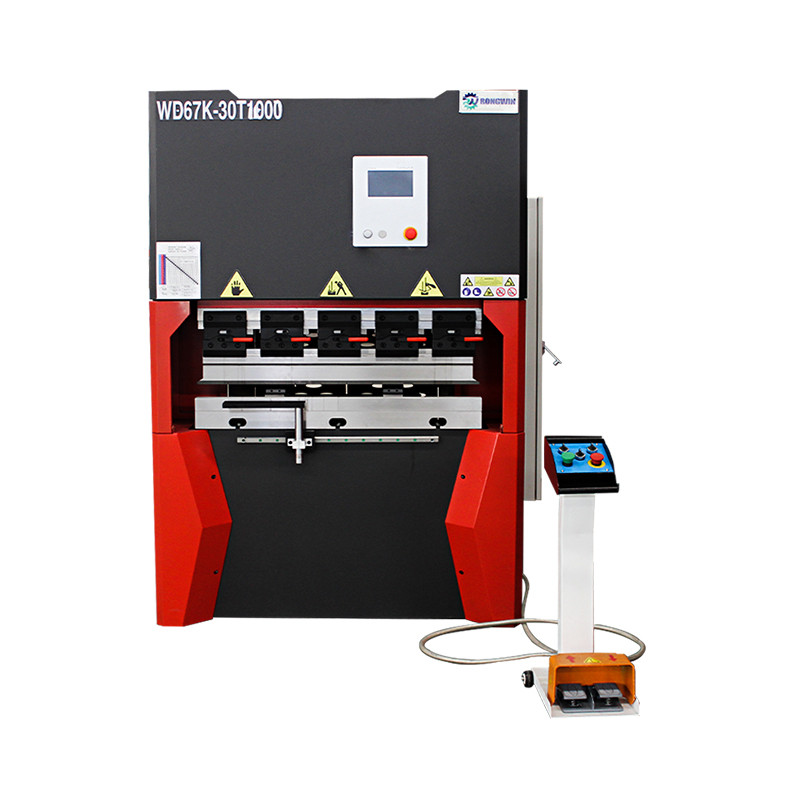

WD67K-series Torsion Bar Two Axis Hydraulic CNC Press Brake

High Precision Press Brake Machine

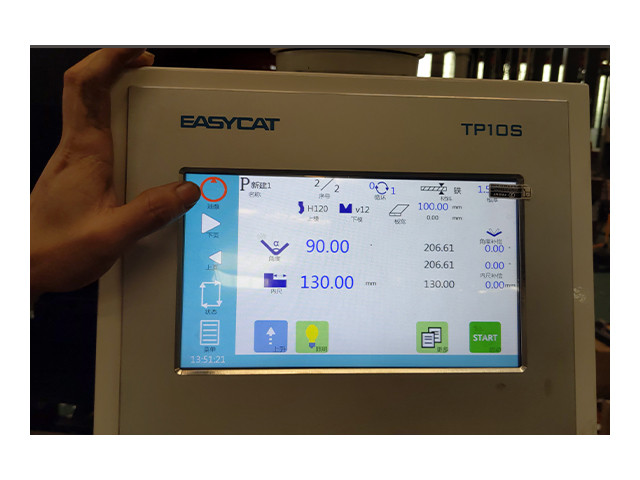

Economical Sheet Metal Bending Machine with DA-41T Controller, easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

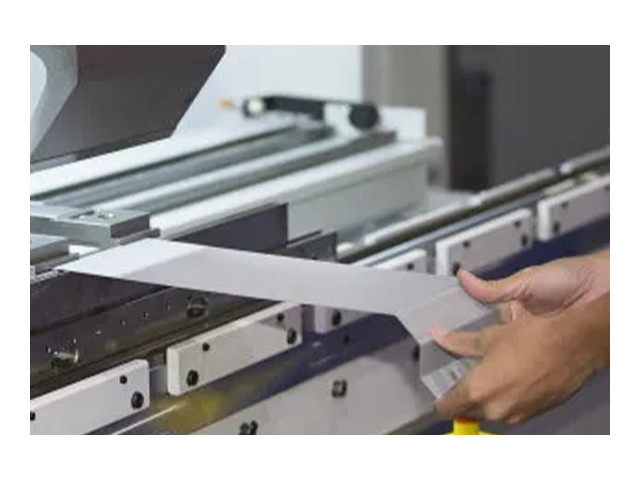

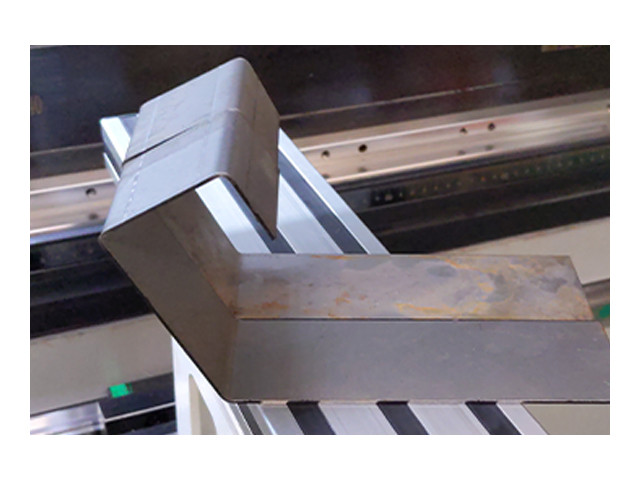

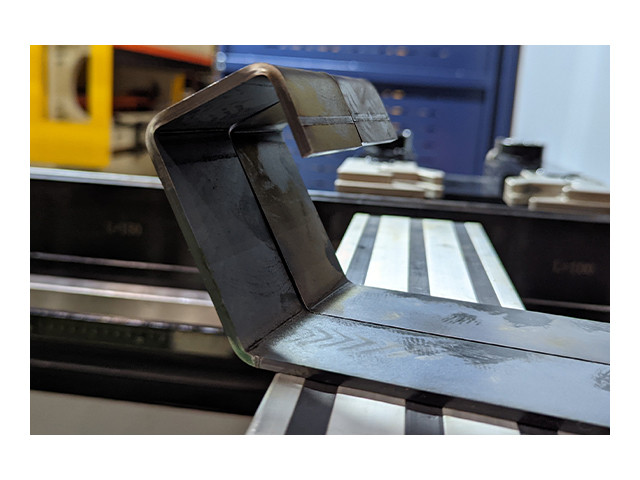

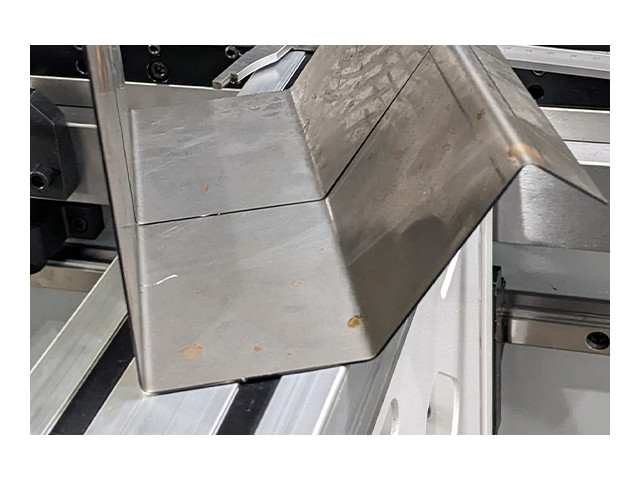

Application Scenario
Advantages
Feature 1
Save money
The WD67K-30T small press brake offers the same features as largermodels at alower price,providing a full-featured machinewithinthe same budget.
Feature 2
Save space

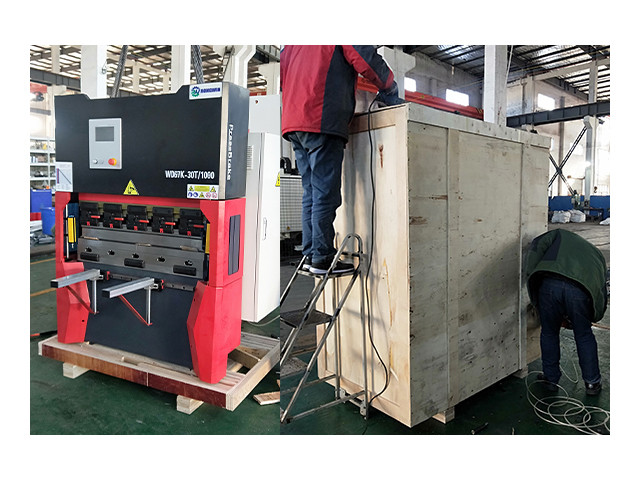

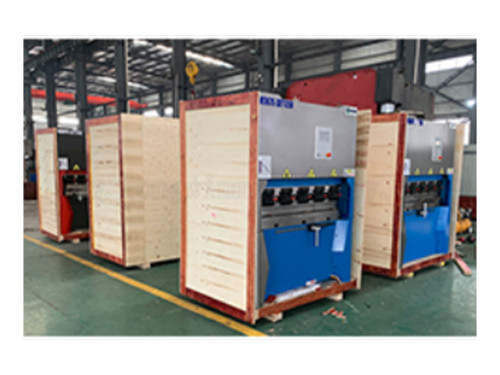

Machine weight 1800kg6 units can fit a small containersmall wooden box packagingSave space, reasonabledesign saves freight
Hydraulic Press Brake Technical Parameter
|
NO
|
Name
|
Parameter
|
Unit
|
1 | Nominal force | 300 | KN |
2 | Worktable length | 1000 | MM |
|
3
|
Distance between vertical
|
800
|
MM
|
4 | Slider Travel | 800 | MM |
5 | Maximum open height | 300 | MM |
|
6
|
Throat depth
|
180
|
MM
|
|
7
|
Throat depth
|
400
|
MM
|
WD67K-30T press brake Machine Details Display

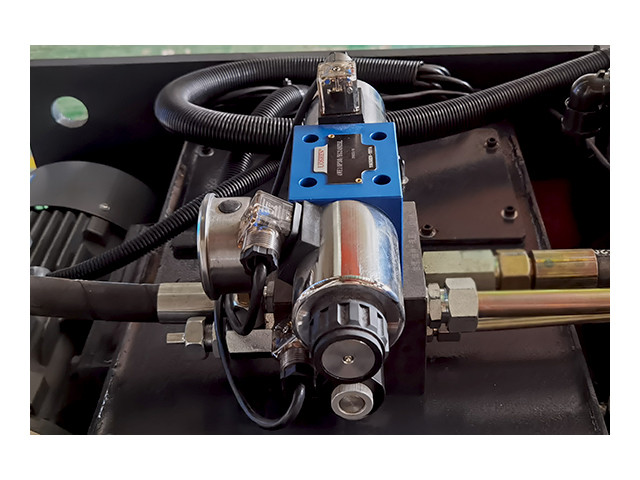

Hydraulic valve group

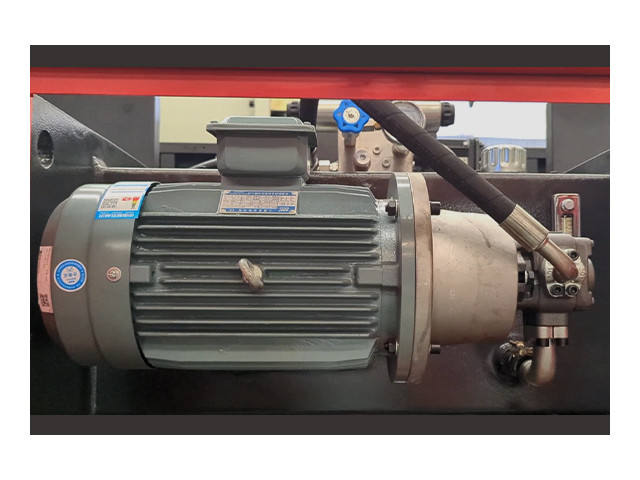

Main motor

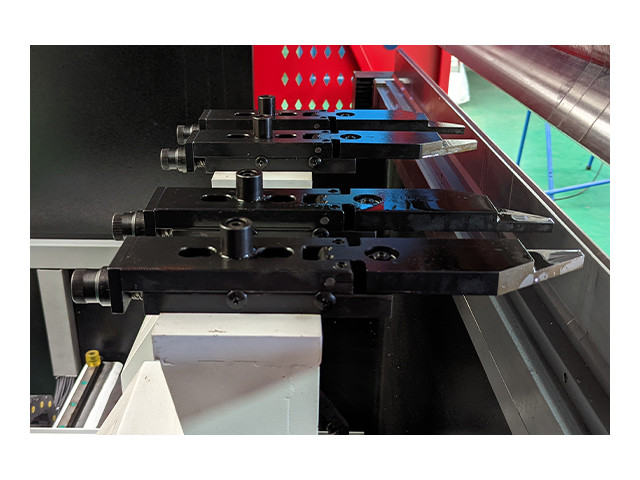

Stop finger

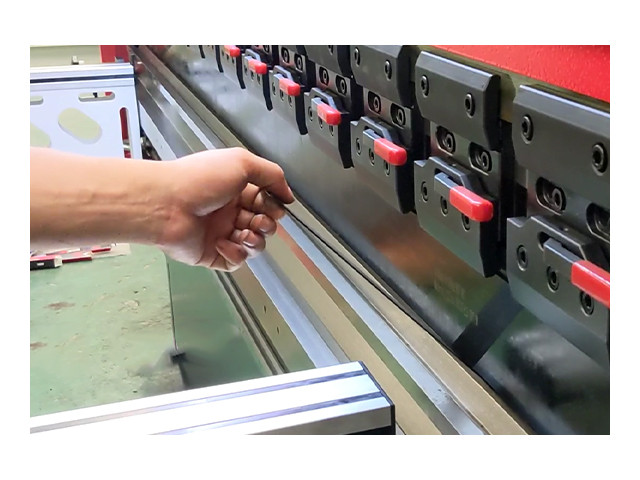

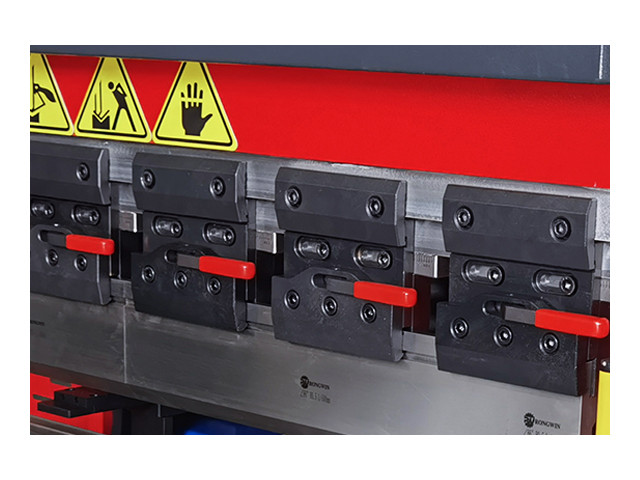

Fast clamp

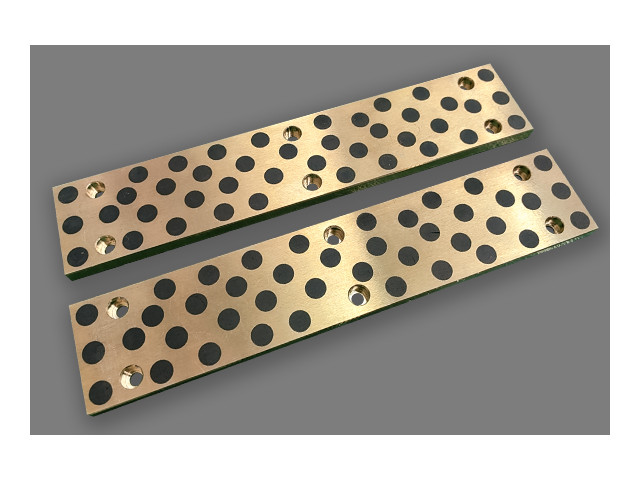

Self lubricating ram guide plate

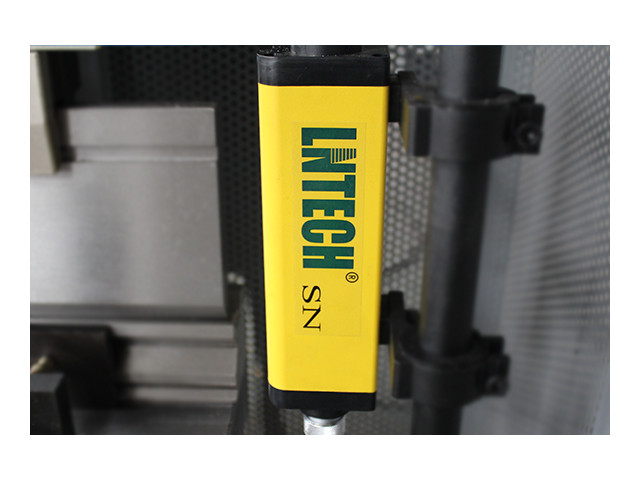

Photoelectric protection

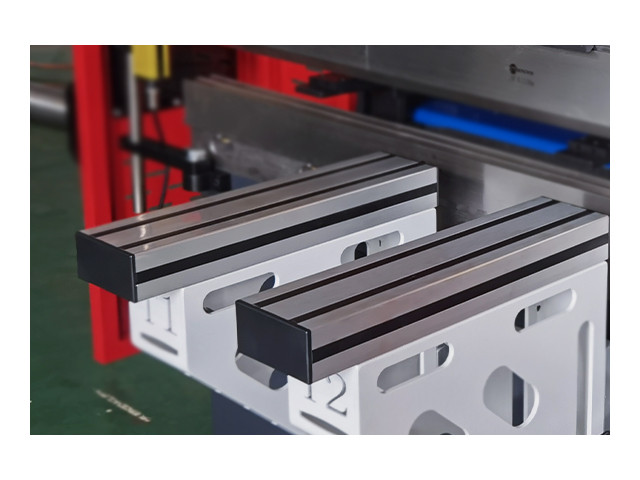

Front support

Grating ruler
WD67K-30Tpress brake Machine FAQ
1、Compact 30T/1000 CNC Press Brake.WD67K 30T/1000 is a compact torsion-bar hydraulic CNC press brake designed for small workshops, garages, vocational training and prototype production, combining practical bending capacity with a space-saving structure.
2、110V/220V Single-Phase Power Supply.Supports 110V/220V single-phase power, allowing the WD67K to operate in homes, garages and small factories without requiring standard industrial three-phase power infrastructure.
3、Only 1.47 m² Floor Space.With a compact footprint of approximately 1.47 m², the WD67K saves valuable workshop space and is easier to transport and install than larger conventional press brake systems.
4、Comparable Functionality at Lower Cost.The WD67K is designed to provide functionality comparable to 6+1 axis models while targeting approximately half the equipment cost, making CNC bending more accessible to small fabrication businesses.
5、、High Bending Accuracy.The machine specifies an angle tolerance of approximately ±0.25° and repeat positioning accuracy of ±0.05 mm, supporting consistent bending quality for precision sheet metal applications.
6、Servo-Controlled X and Y Axes.X and Y axis stroke adjustment is controlled by servo motors, while the CNC system manages key bending movements to improve positioning accuracy and operational efficiency.
7、Ball Screw Backgauge System.The backgauge uses a ball screw and axis guide structure to improve positioning accuracy, while motor-driven adjustment with digital display provides more stable and convenient operation.

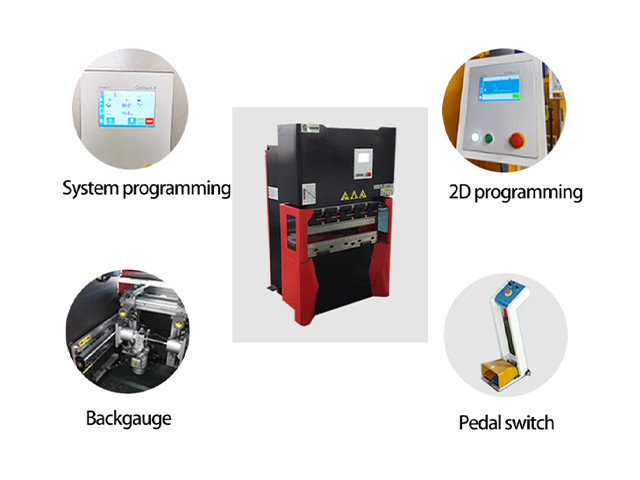

8、2D Programming and Automatic Bend Sequence.WD67K supports 2D programming and automatic bending sequence functions, helping simplify CNC press brake programming and improve efficiency for repetitive or small-batch production.
9、Enhanced Safety Protection.The machine supports laser guarding, emergency shutoff, power-off protection and danger-stop functions, helping improve operator safety during press brake bending operations.
10、Low-Noise Operation.The system is designed for low-noise operation, with the brochure stating noise levels reduced to approximately 50 dB, making it more suitable for compact workshops and training environments.
11、Energy-Efficient Servo Drive.Servo motor closed-loop speed control delivers high dynamic performance while improving energy efficiency by up to 35% compared with traditional systems, helping reduce long-term operating costs.
12、Flexible Customization Options.Optional configurations include laser alignment, customized molds, domestic or imported laser safety guards, cooling systems and customized fast clamps, allowing the WD67K to be adapted to different bending requirements.
What are the key features of the WD67K-series press brake?
1.Equipped with torsion bar synchronization for precise bending.
2.CNC controls for X and Y axes ensure accurate positioning.
3.Durable hydraulic system with consistent performance.
What industries benefit from using this press brake?
1.Metal fabrication, automotive, and construction industries.
2.Ideal for processing stainless steel, carbon steel, and aluminum sheets.
What materials can the WD67K-series handle?
Suitable for a variety of metal sheets with different thicknesses.
Is it customizable?
Options available for extended bending lengths, tonnage, and additional tooling.
What are the key differences between hydraulic and servo-electric press brakes?
The brochure does not directly compare pure hydraulic and servo-electric press brakes. Nanjing RONGWIN WD67K is a compact torsion-bar hydraulic CNC press brake using a servo drive for axis control, combining hydraulic bending force with precise CNC positioning for flexible small-shop production.
What safety features should I look for in a new press brake?
For a new press brake, key safety features include laser guarding, emergency shutoff, power-off protection and protective doors. Nanjing RONGWIN WD67K provides laser protection, danger-button emergency control and power-off protection to improve operator safety during CNC bending.
How do I calculate the required tonnage for a bending application?
The Nanjing RONGWIN WD67K brochure does not provide a tonnage formula. Required press brake tonnage should be determined from material type, sheet thickness, bending length and tooling configuration. WD67K 30T/1000 provides 30-ton bending capacity with a 1000 mm bending length.
What are the advantages of using offline programming software for a bending machine?
The Nanjing RONGWIN WD67K brochure does not specify offline programming software. It supports 2D programming and automatic bending sequence functions, helping simplify CNC press brake setup, reduce operator workload and improve bending workflow for small-batch and training applications.
How does a CNC press brake work compared to manual models?
Nanjing RONGWIN WD67K uses CNC-controlled Y1, Y2 and X axes, while R, Z1 and Z2 are adjusted by electrical buttons. Servo-controlled X/Y positioning, ball-screw back gauge and 2D programming provide better repeatability and automation than conventional manual press brakes.
What Are the Best Press Brake Machines for Small Fabrication Shops?
The brochure does not rank press brakes, but Nanjing RONGWIN WD67K is specifically designed for garages and small workshops. Its 1.47 m² footprint, 110V/220V single-phase power, 30T/1000 capacity and compact CNC design make it suitable for small-batch production, training and prototyping.
What Are the Differences Between Electric and Hydraulic Press Brake Machines?
Nanjing RONGWIN WD67K is a compact hydraulic CNC press brake with servo-assisted axis control, not a fully electric press brake. It uses hydraulic bending force while servo motors control positioning functions, combining hydraulic forming capability with accurate CNC back gauge movement.
