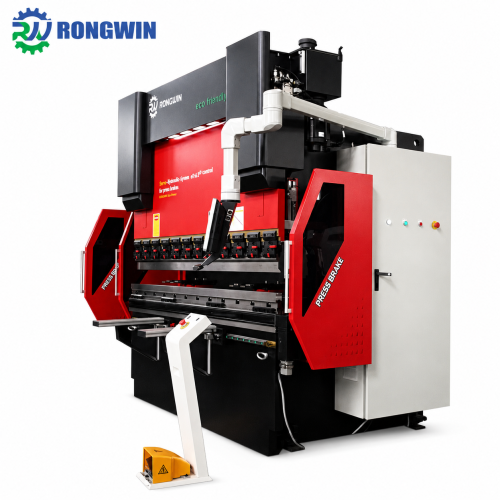

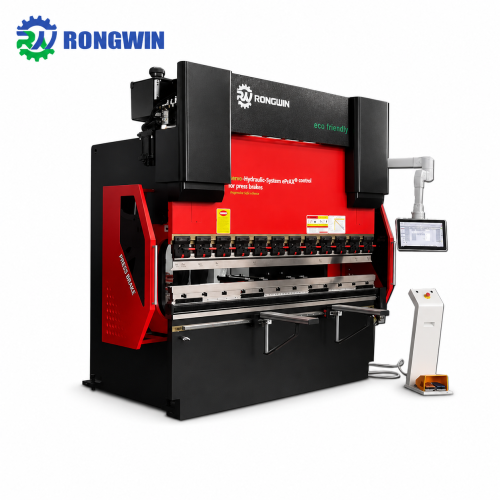

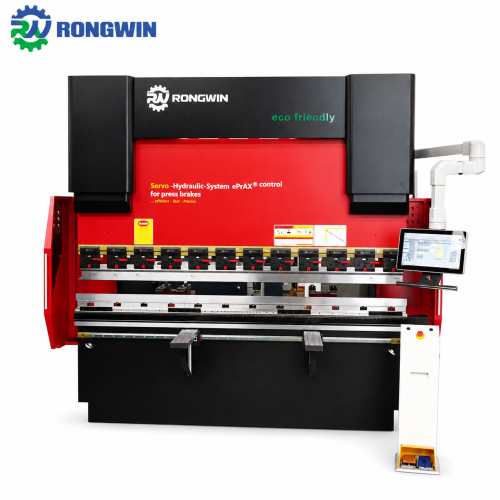

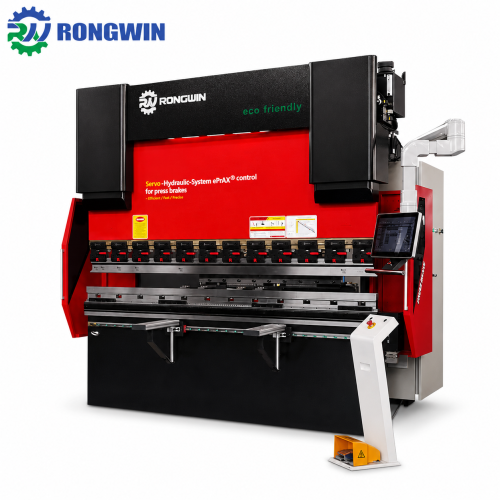

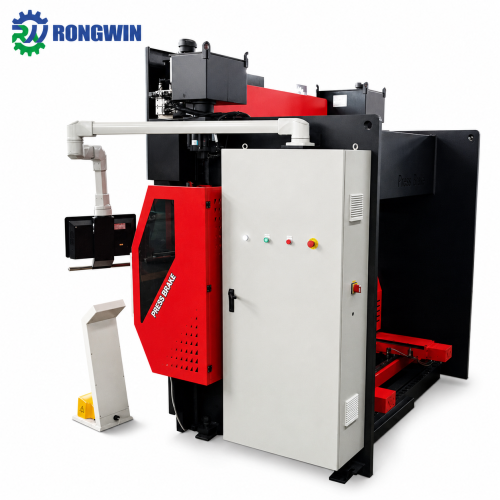

RWP-Hybrid Series High Efficiency Hybrid Servo Electro Hydraulic Press Brake Sheet Metal Bender
- Price
- US $26282-31007
- Model
- RWP-Hybrid Series
- MOQ
- 1 ton
Item specifics
- Machine Type
- CNC Type Hydraulic Press Brake
- Workbench length
- 1600 mm
- Motor power (kW)
- 5.5
- Degree of automation
- Semi-automatic
- Warranty
- 3 years
- Voltage
- According to customer
- Machine Type
- Plate Bending Machine
- Hydraulic System
- X Y axis hydraulic nc press brake machine
- Electrical components
- Schneider
Review
Description
RWP-Hybrid Series Key Advantages
Hybrid servo energy saving system reduces power consumption by up to 40% compared to conventional hydraulic press brakes, significantly lowering your operating costs while maintaining high output.
High efficiency bending cycle with rapid approach and return speeds, plus precise ram depth control, enables faster production and consistent part quality for both short runs and mass orders.
Robust electro hydraulic synchronization combined with servo motor drive ensures stable parallelism and repeatable bending accuracy across the full working length, even with stainless steel or high tensile materials.
User friendly NC controller offers simple programming and memory storage, allowing quick changeovers and minimal operator training, making this hybrid press brake ideal for workshops of all sizes.
CE certified machine with 3 year warranty, comprehensive technical documentation, and 24/7 online support from RONGWIN, a trusted hybrid press brake manufacturer and supplier from China.
Selling Point
1. Up to 70% Energy Saving.Advanced hybrid servo technology significantly reduces energy consumption compared with conventional hydraulic press brakes, helping lower long term operating costs.
2. Faster Bending Cycle.Rapid approach, bending and return speeds shorten cycle time and increase overall productivity for both small batch and mass production.
3. High Positioning Accuracy.Precise servo control delivers significantly higher positioning accuracy than traditional torsion bar press brakes, ensuring consistent bending results.
4. Electro Hydraulic Synchronization.Advanced electro hydraulic synchronization maintains stable ram parallelism across the full working length for reliable and repeatable bending accuracy.
5. Closed Loop Servo Control.Servo motors with closed loop speed control provide fast response, precise movement and stable performance throughout the bending process.
6. High Dynamic Performance.Optimized servo drive response improves machine dynamics, allowing faster movement and higher production efficiency without sacrificing accuracy.
7. Low Operating Cost.Reduced power consumption and efficient servo operation help minimize electricity usage and daily operating expenses while maintaining high output.
8. Ultra Low Noise Operation.Optimized hybrid servo technology reduces operating noise to approximately 50 dB, creating a quieter and more comfortable workshop environment.
9. User Friendly NC Control.The intuitive NC controller simplifies programming, parameter setting and program storage, reducing operator training time and enabling faster job changeovers.
10. Laser Safety Interlock Protection.Integrated laser safety protection with an interlock system enhances operator safety and helps ensure controlled machine operation during bending.
11. CE Certified and EU Compliant.The machine complies with applicable EU directives and CE safety requirements, supporting reliable operation and international market standards.
12. Reliable RONGWIN Service Support.RONGWIN provides a 3 year warranty, comprehensive technical documentation and 24/7 online technical support for dependable long term machine operation.
Press Brake | Nominal
Pressure
(mm) | Bending
Length
(mm) | Poles
distance
(mm) | Throat
depth
(mm) | SlipperStroke(mm) | Max
Opening
Height
(mm) | Main
motor
(KW) | Travel
(mm) | Weight
(Kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 500 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 500 | 4800 |
80T/2500 | 800 | 2500 | 2000 | 350 | 200 | 480 | 7.5 | 600 | 5700 |
|
100T/3200
|
1000
|
3200
|
2700 | 400 |
200/250
|
480/520 | 7.5 | 600 | 8500 |
|
100T/4000
|
1000
|
4000
|
3600 | 400 |
200/250
|
480/520 | 7.5 | 600 | 9300 |
|
160T/3200
|
1600
|
3200
|
2700 | 400 |
200/250
|
480/520 | 11 | 600 | 9500 |
160T/4000 | 1600 | 4000 | 3600 | 400 | 200/250 | 480/520 | 11 | 600 | 12100 |
|
200T/3200
|
2000
|
3200
|
2700 | 400 |
250
|
530 | 15 | 600 | 11000 |
200T/4000 | 2000 | 4000 | 3600 | 400 | 250 | 530 | 15 | 600 | 13500 |
250T/3200 | 2500 | 3200 | 2700 | 400 | 250 | 530 | 18.5 | 600 | 13000 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 600 | 15500 |
250T/5000 | 2500 | 5000 | 4300 | 400 | 250 | 530 | 22 | 600 | 18000 |
300T/3200 | 3000 | 3200 | 2700 | 400 | 300 | 580 | 22 | 600 | 19200 |
300T/4000 | 3000 | 4000 | 3600 | 400 | 300 | 580 | 22 | 600 | 22500 |
400T/4000 | 4000 | 4000 | 3600 | 400 | 320 | 580 | 30 | 600 | 25500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 600 | 31500 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 320 | 590 | 37 | 600 | 34500 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 320 | 590 | 37 | 800 | 43500 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 320 | 590 | 37 | 800 | 53000 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 320 | 640 | 45 | 800 | 57000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 320 | 640 | 45 | 800 | 68000 |
600T/7000 | 6000 | 7000 | 6000 | 500 | 320 | 640 | 45 | 800 | 79000 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 800 | 90000 |
800T/7000 | 8000 | 7000 | 6000 | 600 | 400 | 800 | 55 | 800 | 105000 |
800T/8000 | 8000 | 8000 | 7000 | 600 | 400 | 800 | 55 | 800 | 120000 |
1000T/6000 | 10000 | 6000 | 5000 | 600 | 400 | 800 | 2x37 | 800 | 100000 |
1000T/8000 | 10000 | 8000 | 6900 | 700 | 400 | 800 | 2x37 | 800 | 130000 |
1000T/10000 | 10000 | 10000 | 8000 | 700 | 400 | 800 | 2x37 | 800 | 150000 |
1200T/6000 | 12000 | 6000 | 4220 | 700 | 400 | 1000 | 2x45 | 1000 | 130000 |
1200T/7000 | 12000 | 7000 | 5220 | 700 | 400 | 1000 | 2x45 | 1000 | 160000 |
1600T/6000 | 16000 | 6000 | 4900 | 700 | 400 | 1000 | 2x55 | 1000 | 150000 |
1600T/7000 | 16000 | 7000 | 5900 | 700 | 400 | 1000 | 2x55 | 1000 | 170000 |
1600T/8000 | 16000 | 8000 | 6900 | 700 | 400 | 1000 | 2x55 | 1000 | 190000 |
1600T/10000 | 16000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 210000 |
2000T/8000 | 20000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | 260000 |
2000T/10000 | 20000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 290000 |
2000T/12000 | 20000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | 320000 |
2000T/14000 | 20000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | 350000 |
3000T/8000 | 30000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/10000 | 30000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/12000 | 30000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/14000 | 30000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
Can press brake programming software reduce bending errors?
Yes. Programming and simulation software can calculate bending sequences, detect possible collisions, estimate tool requirements and preview finished parts before production. This helps reduce material waste and machine setup time.
What safety systems should a modern press brake include?
Recommended safety features include laser protection, emergency stop buttons, rear safety guards, electrical interlocks, overload protection and safety monitoring systems. The final configuration should comply with local industrial safety requirements.
Is a servo electric press brake suitable for precision bending?
Yes. Servo electric models offer fast response, stable positioning, lower energy consumption and high repeat accuracy. They are especially suitable for small and medium parts requiring frequent setup changes and precise bending.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
What are the key differences between hydraulic and servo-electric press brakes?
Nanjing RONGWIN RWP-Hybrid combines hydraulic power with servo-electric technology for a hybrid CNC press brake solution. It uses YASKAWA servo motors, closed-loop speed control and an integrated hydraulic system to improve response, efficiency and precision while reducing energy use and oil consumption.
How do I calculate the required tonnage for a bending application?
The Nanjing RONGWIN RWP-Hybrid brochure does not provide a tonnage calculation formula. Required press brake tonnage should be determined according to material type, sheet thickness, bending length, tooling and V-die opening, then matched with the RWP-Hybrid machine’s pressing capacity and application requirements.
What are the advantages of using offline programming software for a bending machine?
Nanjing RONGWIN RWP-Hybrid supports SYNTEC offline software with DXF and 3D CAD import, full-scale programming, 2D/3D automatic bend sequence calculation and machine setup preparation. This reduces programming time, improves press brake utilization and helps optimize bending sequences before production.
How does a CNC press brake work compared to manual models?
Nanjing RONGWIN RWP-Hybrid uses CNC-controlled Y1/Y2 ram axes, X/R/Z back gauge axes and V-axis automatic crowning. Compared with manual press brakes, the CNC system automates positioning, bend sequencing and compensation, improving repeatability, precision and production efficiency.
Which Press Brake Brands Are Known for Durability?
The brochure does not compare or rank press brake brands. Nanjing RONGWIN RWP-Hybrid is engineered using SOLIDWORKS 3D CAD, CAE stress analysis and finite element analysis, while its Syntec CNC system and high-quality construction are designed to support stable performance and long product life.
What factors determine the overall cost of a new metal forming press?
For Nanjing RONGWIN RWP-Hybrid, overall press brake cost depends on machine capacity, CNC controller, axis configuration, back gauge system, tooling, safety system and offline software. Options such as 3+1 to 8+1 axes, SYNTEC 3D control, WILA tooling and Laser Safe IRIS affect the final configuration.
