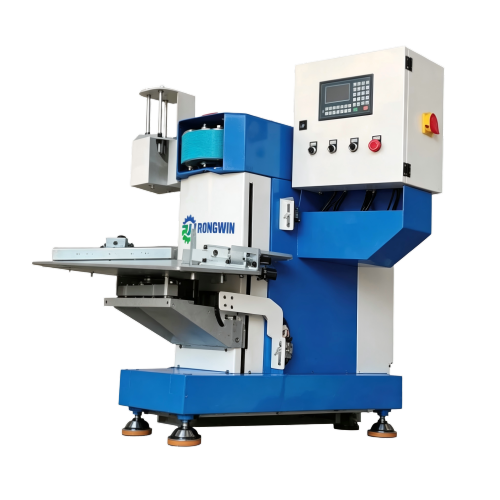

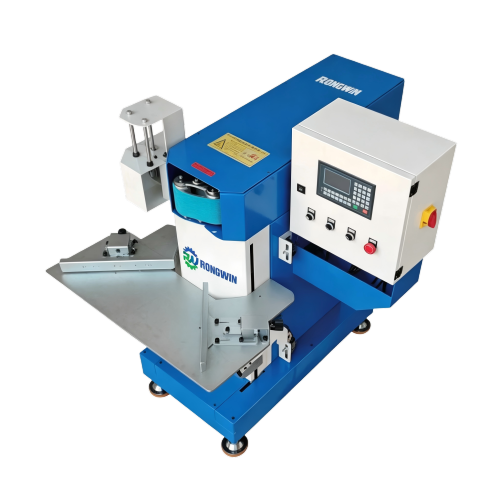

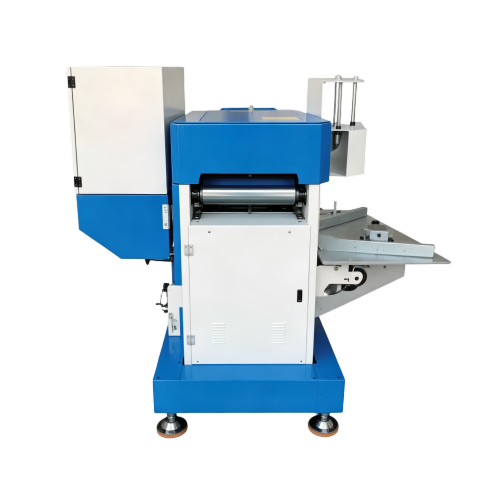

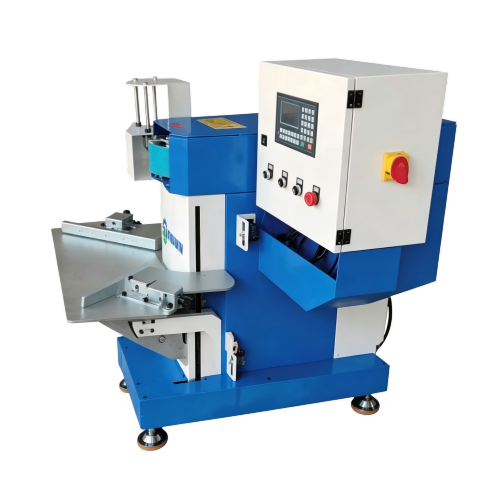

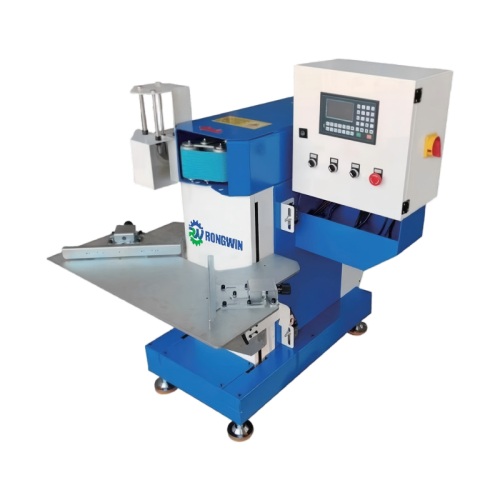

Vertical corner automaticpolishing machine -- Rw-czMJ-3-400
- Model
- Rw-czMJ-3-400
Item specifics
- Model
- RW-CZMJ-3-4OO
- Power
- 2.8 kw
- Dimensions(Length x Width x Height]
- 1620*1050*1260 mm
- Weight
- Approximately 280 kg
- Sandbelt model
- 2100X100*Grit (80/100/120/180/220/320)mm
- Grinding direction
- Vertical direction
- Effective Grinding Distance
- ≤400 mm
- Brand of Electrical Components in the Control System
- Delixi; Chint
- Control System
- Multi-task Motion Controller one unit
Review
Description
Vertical Corner Automatic Polishing Machine
The Vertical CNC Corner Grinding Machine is an automated device designed for grinding edges and corners of small and medium-sized workpieces. It features CNC-controlled vertical lifting, enabling one-time grinding of workpiece edges and corners up to 420mm height.
Request a Quote →Performance Characteristics
Edge Height ≤400mm
Ideal for parts with edge height up to 400mm, one-time grinding.
R-Angle Grinding R1~15mm
Precisely grinds R angles of part edges within 1mm to 15mm radius.
CNC Vertical Lifting
Programmable control for consistent, repeatable grinding depth.
Versatile Workpiece Support
Suitable for boxes, furniture, doors, windows, and kitchenware.
Technical Specifications
| Model | RW-CZMJ-3-400 |
|---|---|
| Max Edge Height | ≤ 400 mm |
| R-Angle Grinding Range | R1 ~ R15 mm |
| Control System | CNC with vertical lift control |
| Automation Level | Fully automatic cycle from clamping |
| Power Supply | 3-phase, customizable |
Applicable Scope
- Grinding edges and corners of various medium/small boxes
- Grinding edges and corners of medium/small wooden furniture
- Grinding edges and corners of doors, windows, kitchenware
- Electrical cabinets, sports equipment edge finishing
- Metal fabrication and general manufacturing
Why Choose the RW-CZMJ-3-400?
Eliminate manual corner finishing with precise CNC automation. Increase consistency and reduce rework on high-value parts.
Need a Customized Grinding Solution?
Contact our engineers to discuss your specific workpiece dimensions.
