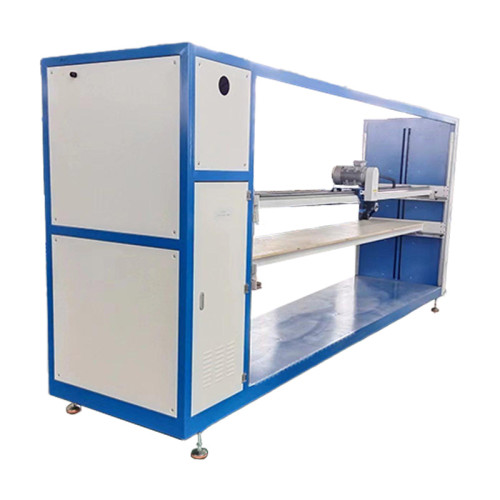

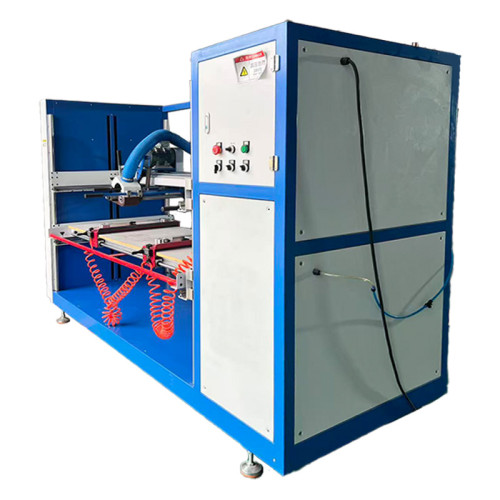

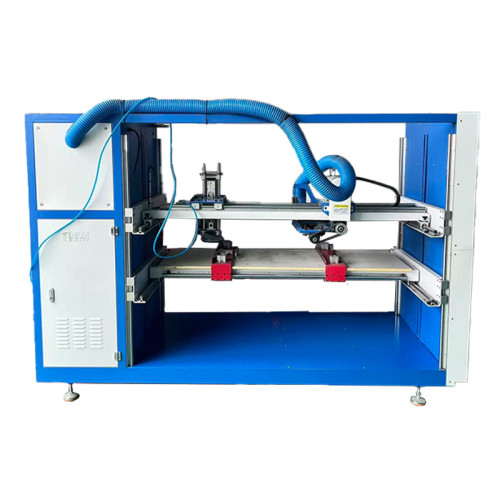

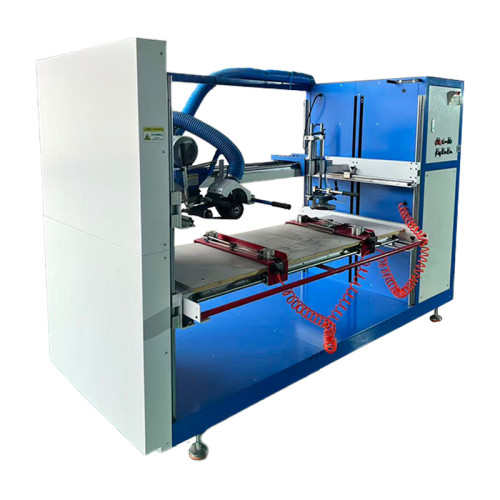

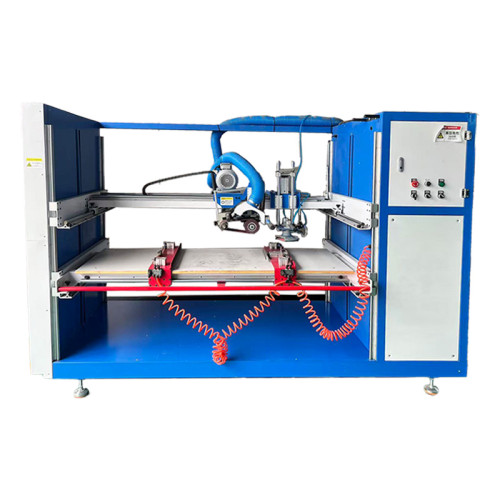

Metal wire drawing machine RW-LSJ-3-1200/1700/2200/3000
- Model
- RW-LSJ-3-1200/1700/2200/3000
Item specifics
- Model
- RW-LSPJ-2-1200/1700 /2200/2500/3000
- Power
- 2.5 kw
- Dimensions(Length x Width x Height)
- 2600/3000/3600/3880/4400*1250*1730/1970mm
- Weight
- Approximately 480~570 kg
- Wire drawing wheel
- 120*100mm
- Effective Grinding Distance
- 1200/1700/2200/2500/3000 mm
- Brand of Electrical Componentsin the Control System
- Delixi; Chint
Review
Description
Metal Wire Drawing Machine
The manual wire drawing machine is designed for polishing and wire drawing the surface of sheet metal enclosures. It is particularly suitable for creating consistent brushed finishes on stainless steel and aluminum enclosure boxes. During operation, only one ordinary worker is needed to stabilize the workpiece—no polishing skills required—greatly reducing labor costs and physical demands.
Request a Quote →Performance Characteristics
Up to 3000mm Length
Suitable for surface wire drawing of workpieces with length ≤3000mm.
Low-Skill Operation
Worker only stabilizes the part; no polishing expertise required.
High Load Capacity
Platform maximum load ≤400KG; can be customized to customer requirements.
Customizable Sizes
Multiple length models available: 1200, 1700, 2200, 2500, 3000mm.
Technical Parameters
| Model | RW-LSPJ-2-1200/1700/2200/2500/3000 |
|---|---|
| Power | 2.5 kW |
| Dimensions (L×W×H) | 2600~4400 × 1250 × 1730~1970 mm (varies by model) |
| Weight | Approx. 480 ~ 570 kg |
| Wire Drawing Wheel | Φ120 × 100 mm |
| Effective Grinding Distance | 1200 / 1700 / 2200 / 2500 / 3000 mm |
| Electrical Components | Delixi; Chint |
Applicable Scope
- Wire drawing of edges and surfaces of large/medium box bodies
- Polishing and wire drawing of large solid wood furniture surfaces
- Edge and surface finishing for doors and windows
- Aluminum and stainless steel products in kitchenware industries
- Electrical cabinet surface brushing
Why Choose the RW-LSJ-3 Series?
Replace costly skilled polishers with any general worker. Achieve uniform, high-quality brushed finishes across large enclosures without physical strain.
Simplify Your Wire Drawing Process
Contact us for a quote or to discuss the right size for your production.
