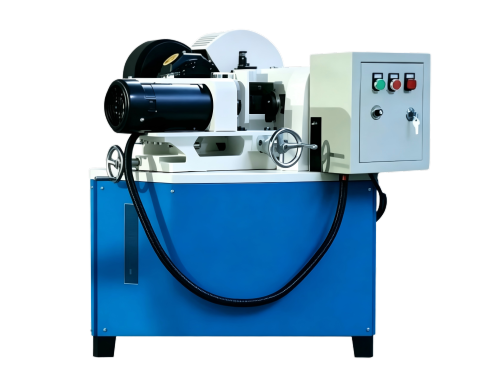

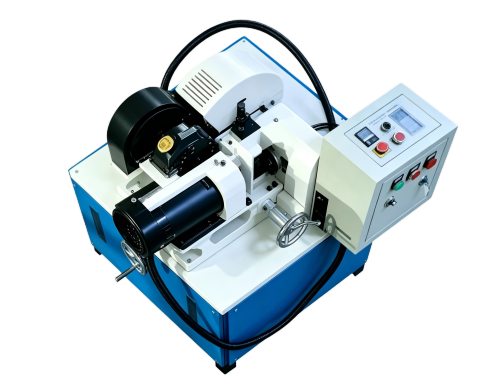

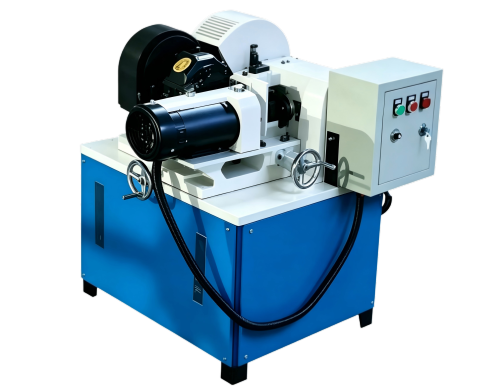

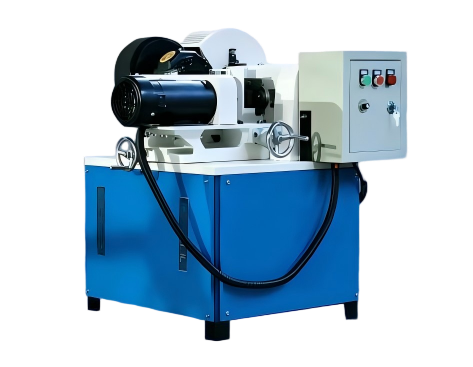

Square Tubepolishing machine --Rw-JzFF-100
- Model
- Rw-JzFF-100
Item specifics
- Product Model
- RW-JZFF-1OO
- Maximum square tubespecifications for polishing
- 120*120/160*160/200*200mm(can be customized according to user requirements)
- Minilum square tubespecifications for polishing
- 10*10mm (can be customized according to user requirements)
- Polishing length
- 9m/min(can be customized according to user needs)
- Steel pipe feed speed
- 1-18 (m/min)
- Number of grinding heads
- 2/4/8/16/24
- Grinding head motor power
- 4 kw
- Equipped with polishingwheel outer diameter
- 250mm
- gross weight
- 700kg/1500kg/2200kg/4000kg/7000kg
- Dimensions
- 1.2*1.5*1.2 /2*1.5*1.53.6*1.5*1.5/6.2*1.5*1.5 /9.2*1.5*1.5
- Feed motor power
- 0.75kw/1.5kw/2.2kw/3kw
- Grinding head speed
- 2800(r/min )
Review
Description
Square Tube Polishing Machine
The square tube polishing machine uses rotating polishing heads or abrasive belts to rub the surface of square tubes at high speed. It removes oxide layers, rust, and contaminants, leaving a smooth, even surface and enhancing aesthetics. Ideal for square tubes, square steel, and strip steel.
Request a Quote →Performance Characteristics
Up to 200×200mm Tubes
Maximum square tube size 120×120 / 160×160 / 200×200mm, fully customizable.
Variable Feed Speed
Steel pipe feed speed from 1 to 18 m/min for optimal finish control.
Modular Grinding Heads
Available with 2, 4, 8, 16, or 24 grinding heads to match production needs.
Multi-Wheel Compatibility
Compatible with nylon, hemp, cloth, PVC, wool wheels, and diamond impellers.
Technical Parameters
| Product Model | RW-JZFF-100 |
|---|---|
| Max Square Tube | 120×120 / 160×160 / 200×200 mm (customizable) |
| Min Square Tube | 10×10 mm (customizable) |
| Polishing Length | 9 m/min (customizable) |
| Feed Speed | 1 ~ 18 m/min |
| Number of Grinding Heads | 2 / 4 / 8 / 16 / 24 |
| Grinding Head Motor Power | 4 kW |
| Feed Motor Power | 0.75 / 1.5 / 2.2 / 3 kW |
| Grinding Head Speed | 2800 r/min |
| Polishing Wheel Outer Diameter | 250 mm |
| Gross Weight | 700 ~ 7000 kg (varies by configuration) |
| Dimensions (approx.) | 1.2×1.5×1.2 up to 9.2×1.5×1.5 m |
Main Uses and Scope of Application
- Rust removal, wire drawing, and 8K mirror polishing of square tubes and profiles
- Square steel, strip steel, and various metal outer surfaces
- Dry polishing with abrasive cloth, diamond impellers, and polishing wheels
- Compatible with nylon, hemp, cloth, PVC, and wool wheels
- Multi-step polishing of different thicknesses by changing wheels
- Special-shaped cross-section profiles polishing capable
Why Choose the RW-JZFF-100?
From light wire drawing to high-end 8K mirror finish, one machine handles all your square tube surface needs. Modular head design grows with your production.
Need a Custom Square Tube Polishing Setup?
Tell us your tube dimensions and finish requirements. We'll configure the perfect machine.
