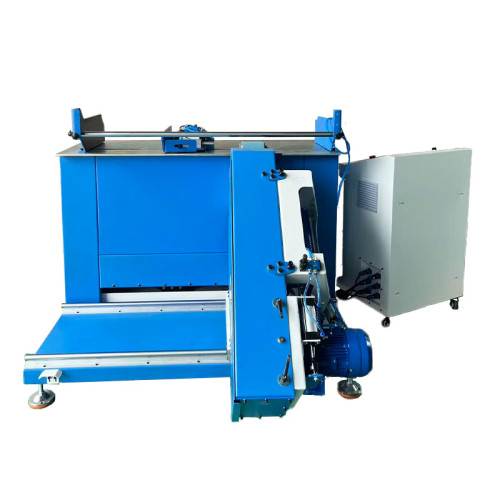

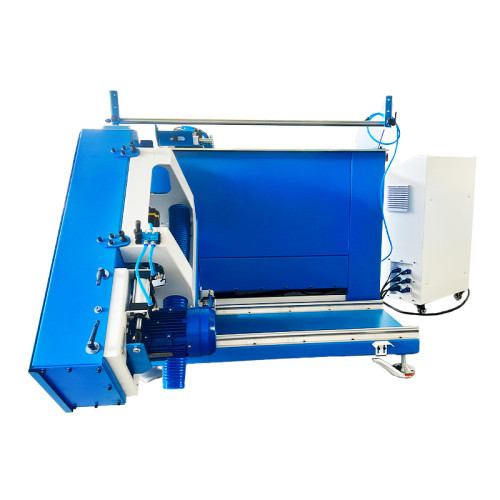

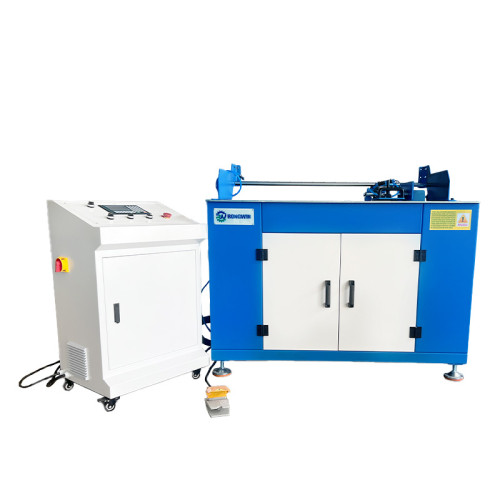

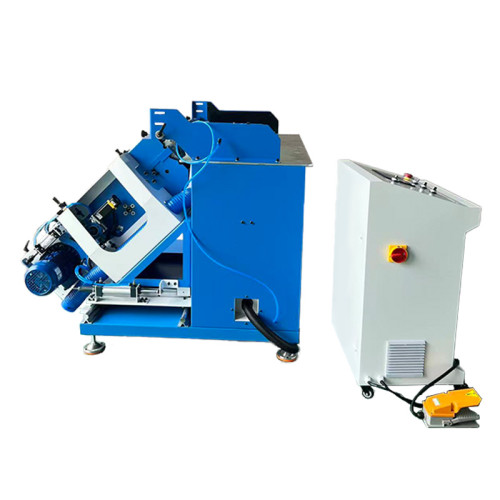

Horizontal Corner Automatic PolishingMachine--RW-SPMJ-5-900/1500/2000
- Model
- RW-SPMJ-5-900/1500/2000
Item specifics
- Model
- RW-SPMJ-3-900/1500
- Power
- 3.2 kw
- Dimensions (Length x Width x Height)
- 1350/1950*1570*1160 mm
- Weight
- Approximately 265 kg
- Belt Length
- 2100x100 mm
- Effective Grinding Distance
- 900/1500 mm
- Brand of Electrical Components in the Control System
- Delixi; Chint
- Control System
- Multi-Task Control System one unit
Review
Description

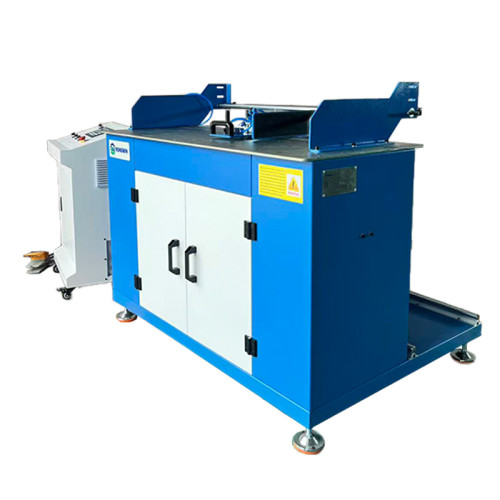

Horizontal Corner Automatic Polishing Machine
The RW-SPMJ-5 series is an automated horizontal edge and corner grinding machine specifically designed for processing workpieces with large edge and corner dimensions. It excels at grinding welded edges and corners of large sheet metal boxes and enclosures. Featuring fully automated operation—from workpiece clamping to final grinding—this machine dramatically improves efficiency and consistency while reducing labor costs.
Request a Quote →Performance Characteristics
Wide Application Range
Suitable for grinding workpieces with corner width ≥50mm; especially ideal for welded corners and flat surfaces of medium to large sheet metal enclosures.
R-Angle Grinding
Grinds the outer R-angle of parts, achieving R1~15mm radius grinding with consistent quality.
Customizable
Custom sizes and configurations are available according to specific customer requirements.
Optional Dust Extraction
External dust collection system effectively removes grinding dust, improving operator safety and environmental compliance.
Technical Specifications
| Model | RW-SPMJ-5-900 | RW-SPMJ-5-1500 | RW-SPMJ-5-2000 |
|---|---|---|---|
| Grinding Effective Stroke | 900 mm | 1500 mm | 2000 mm |
| Corner Width Requirement | ≥ 50 mm | ||
| R-Angle Grinding Range | R1 ~ R15 mm | ||
| Suitable Materials | Stainless steel, carbon steel, aluminum alloy, and other metal materials | ||
| Control System | PLC with touch screen interface | ||
| Power Supply | Three-phase, AC380V ±10% | ||
| Optional Features | External dust extraction system | ||
Applicable Scope
- Grinding edges, corners, and small planes of various large and medium-sized metal boxes and cabinets
- Grinding edges, corners, and small planes of various large solid wood furniture pieces
- Grinding edges, corners, and small planes of doors, windows, kitchen utensils, electrical cabinets, and sports equipment
- Welded seam finishing and R-angle grinding for electrical control cabinets
- Surface treatment for metal door frames, window frames, and elevator panels
Why Choose the RW-SPMJ-5 Series?
This machine replaces manual grinding of workpiece edges, R-angles, and small flat surfaces — achieving fully automated grinding operations. It significantly improves efficiency over traditional manual polishing while delivering superior and highly consistent quality.
