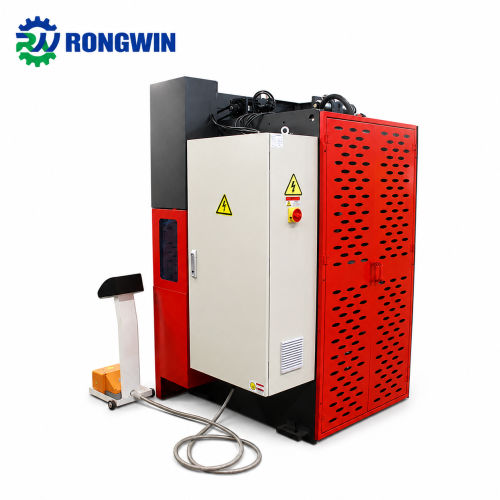

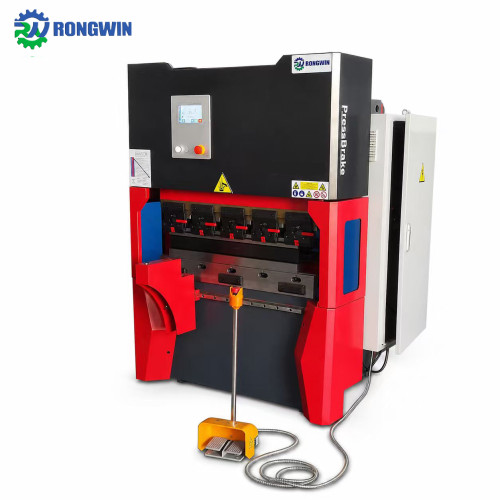

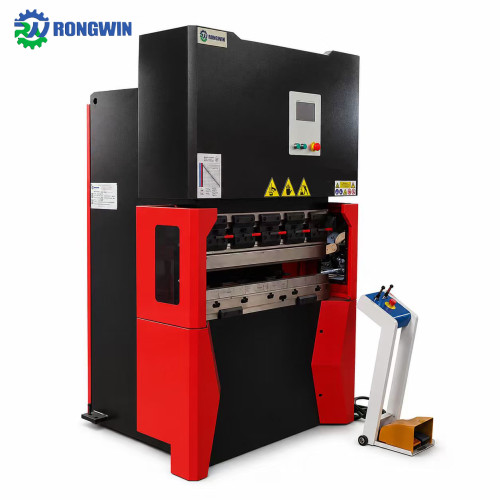

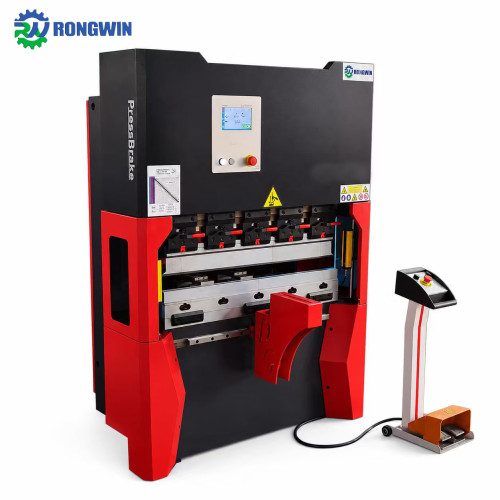

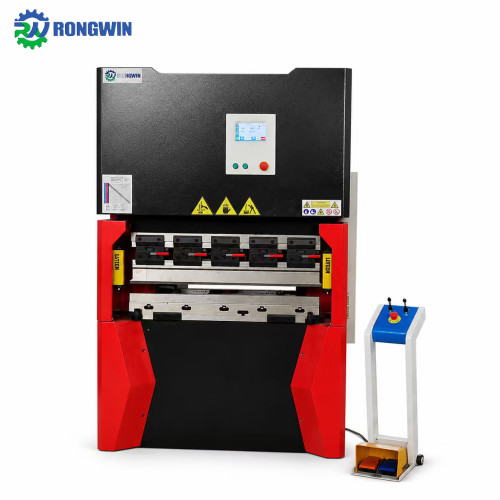

RWP-NC Series Small Economical NC Torsion Bar Press Brake Machine for Sheet Metal Bending Small Fabrication Shop
- Price
- US $2880-12255
- Model
- RWP-NC series
- MOQ
- 1 ton
Item specifics
- Slider stroke (mm)
- 300
- Throat depth (mm)
- 180
- Workbench width (mm)
- 1000
- Motor power (KW)
- 3
- Core component warranty period
- 1 Year
Review
Description
RWP-NC Series Key Advantages
Equipped with a user-friendly NC numerical control system, the RWP-NC allows intuitive angle programming without requiring professional training. Operators can get started quickly, significantly reducing labor costs. As a complete RONGWIN-branded machine, it guarantees reliable quality and outstanding value for small to medium workshops.
Adopting a mechanical torsion bar synchronization structure, the machine uses a torsion shaft to connect the left and right side cylinders, ensuring forced synchronous movement. This design guarantees parallel ram operation and consistent bending angles, making it especially suitable for high volume processing of 90° workpieces.
The entire frame is constructed from all steel welded plates and undergoes heat treatment to eliminate internal stress. This provides exceptional rigidity and stability, preventing deformation even under long term heavy duty use, and ensures a prolonged service life.
The compact integrated hydraulic control system minimizes pipe connections, offers a wide speed adjustment range, and operates smoothly and reliably. The top driven ram design simplifies maintenance and reduces downtime.
Press Brake | Nominal
Pressure
(mm) | Bending
Length
(mm) | Poles
distance
(mm) | Throat
depth
(mm) | SlipperStroke(mm) | Max
Opening
Height
(mm) | Main
motor
(KW) | Travel
(mm) | Weight
(Kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 500 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 500 | 4800 |
80T/2500 | 800 | 2500 | 2000 | 350 | 200 | 480 | 7.5 | 600 | 5700 |
|
100T/3200
|
1000
|
3200
|
2700 | 400 |
200/250
|
480/520 | 7.5 | 600 | 8500 |
|
100T/4000
|
1000
|
4000
|
3600 | 400 |
200/250
|
480/520 | 7.5 | 600 | 9300 |
|
160T/3200
|
1600
|
3200
|
2700 | 400 |
200/250
|
480/520 | 11 | 600 | 9500 |
160T/4000 | 1600 | 4000 | 3600 | 400 | 200/250 | 480/520 | 11 | 600 | 12100 |
|
200T/3200
|
2000
|
3200
|
2700 | 400 |
250
|
530 | 15 | 600 | 11000 |
200T/4000 | 2000 | 4000 | 3600 | 400 | 250 | 530 | 15 | 600 | 13500 |
250T/3200 | 2500 | 3200 | 2700 | 400 | 250 | 530 | 18.5 | 600 | 13000 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 600 | 15500 |
250T/5000 | 2500 | 5000 | 4300 | 400 | 250 | 530 | 22 | 600 | 18000 |
300T/3200 | 3000 | 3200 | 2700 | 400 | 300 | 580 | 22 | 600 | 19200 |
300T/4000 | 3000 | 4000 | 3600 | 400 | 300 | 580 | 22 | 600 | 22500 |
400T/4000 | 4000 | 4000 | 3600 | 400 | 320 | 580 | 30 | 600 | 25500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 600 | 31500 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 320 | 590 | 37 | 600 | 34500 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 320 | 590 | 37 | 800 | 43500 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 320 | 590 | 37 | 800 | 53000 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 320 | 640 | 45 | 800 | 57000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 320 | 640 | 45 | 800 | 68000 |
600T/7000 | 6000 | 7000 | 6000 | 500 | 320 | 640 | 45 | 800 | 79000 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 800 | 90000 |
800T/7000 | 8000 | 7000 | 6000 | 600 | 400 | 800 | 55 | 800 | 105000 |
800T/8000 | 8000 | 8000 | 7000 | 600 | 400 | 800 | 55 | 800 | 120000 |
1000T/6000 | 10000 | 6000 | 5000 | 600 | 400 | 800 | 2x37 | 800 | 100000 |
1000T/8000 | 10000 | 8000 | 6900 | 700 | 400 | 800 | 2x37 | 800 | 130000 |
1000T/10000 | 10000 | 10000 | 8000 | 700 | 400 | 800 | 2x37 | 800 | 150000 |
1200T/6000 | 12000 | 6000 | 4220 | 700 | 400 | 1000 | 2x45 | 1000 | 130000 |
1200T/7000 | 12000 | 7000 | 5220 | 700 | 400 | 1000 | 2x45 | 1000 | 160000 |
1600T/6000 | 16000 | 6000 | 4900 | 700 | 400 | 1000 | 2x55 | 1000 | 150000 |
1600T/7000 | 16000 | 7000 | 5900 | 700 | 400 | 1000 | 2x55 | 1000 | 170000 |
1600T/8000 | 16000 | 8000 | 6900 | 700 | 400 | 1000 | 2x55 | 1000 | 190000 |
1600T/10000 | 16000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 210000 |
2000T/8000 | 20000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | 260000 |
2000T/10000 | 20000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 290000 |
2000T/12000 | 20000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | 320000 |
2000T/14000 | 20000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | 350000 |
3000T/8000 | 30000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/10000 | 30000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/12000 | 30000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/14000 | 30000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
How can I evaluate the durability of a press brake?
Check the machine frame structure, welding process, heat treatment, machining accuracy, hydraulic components, electrical parts and controller brand. A reliable manufacturer should also provide inspection records, testing videos and warranty terms.
What support should a professional press brake supplier provide?
A dependable supplier should provide machine selection advice, tooling recommendations, operating manuals, installation guidance, programming training, spare parts support, remote diagnostics and maintenance assistance throughout the machine service period.
Can a CNC press brake produce complex bending parts?
Yes. A multiaxis back gauge, advanced CNC controller, suitable tooling and offline programming software allow the machine to process complex profiles with multiple angles, different flange dimensions and demanding accuracy requirements.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
