RONGWIN Customizable Professional Pipe Cutting Machine | Metal with Durable Gear and Laser Source
- Price
- US $5000-4800
- Model
- Professional Pipe Cutting Machine
- MOQ
- 1 piece
Item specifics
- Laser Type
- Fiber Laser
- Applying Materials
- Metal/Plywood/Stone
- Degree of oldness
- New
- country of origin
- China
- Industrial laser brand
- IPG
- Core selling point
- Long Service Life
- Warranty
- 3 years
- Operation Mode
- Pulsed
- Configuration
- Gantry Type
Review
Description

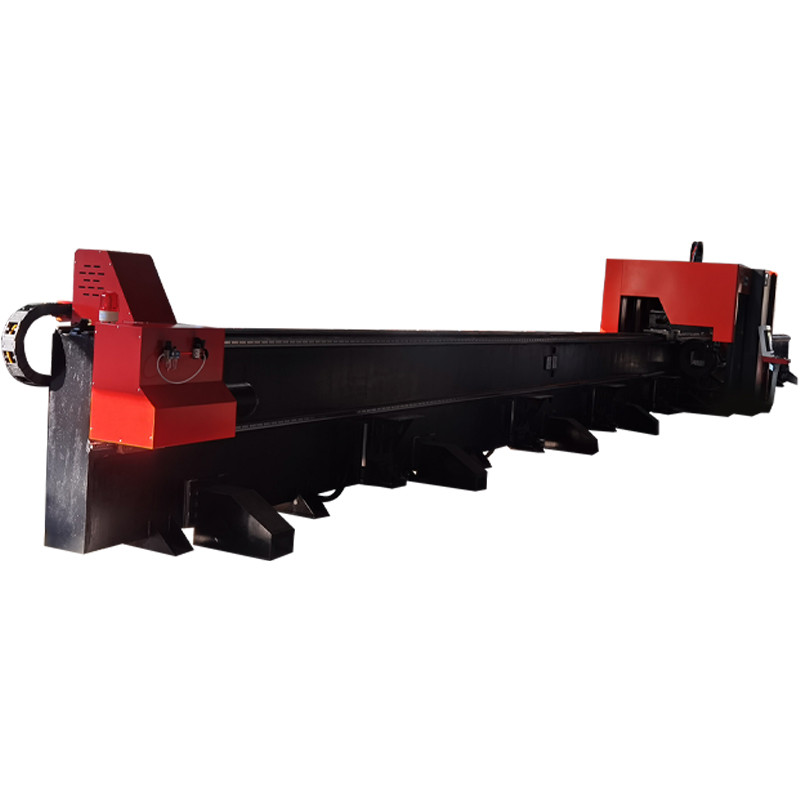

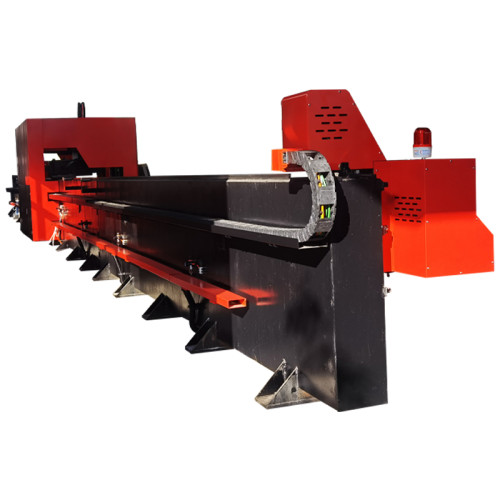

Professional Pipe Cutting Machine introduction

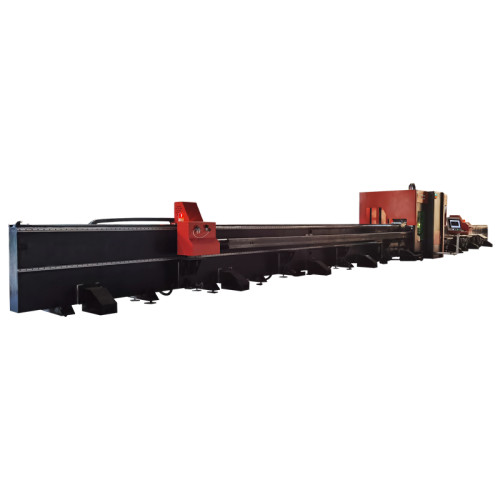

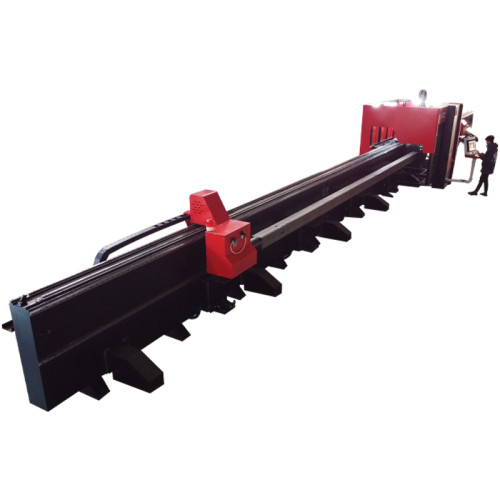

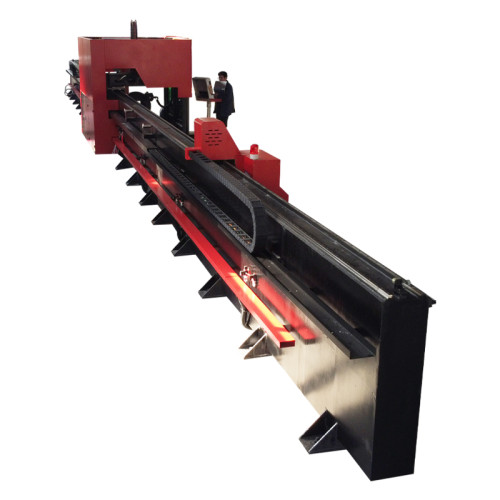

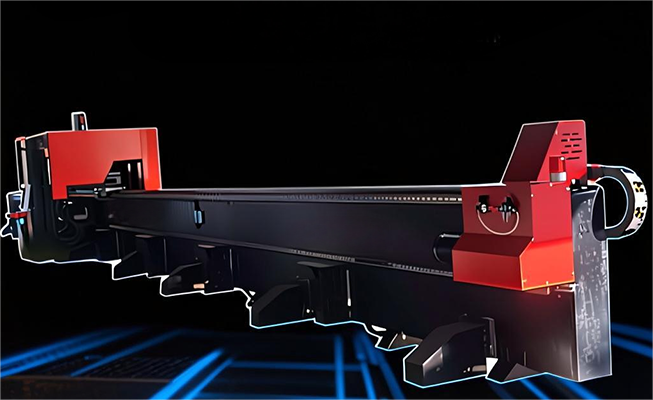

Multi-Function Pipe Laser Cutting Machine with 7 Axes for Precise Cutting of Round, Square, Rectangular, and Elliptical Pipes
he special pipe laser cutting machine consists of 7 shafts Feature It can realize the cutting of round,square,rectangular and elliptical pipes.
It can realize the one-time forming and processing of 6-meter pipe,and can be equipped with 9-meter and 12-meter pipe cutting machines with different pipe lengths and diameters.
The equipment is matched with feeding shaft and pulling shaft which can greatly reduce the waste of processing tailings.
It can cut multiple pipes with different directions and diameters on the main pipe. It can cut variable angle groove surface.
It is known as pipe cutting machine and material expert in the industry.

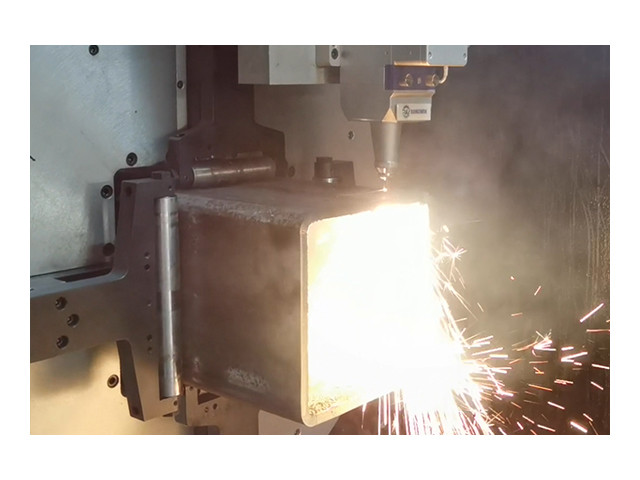

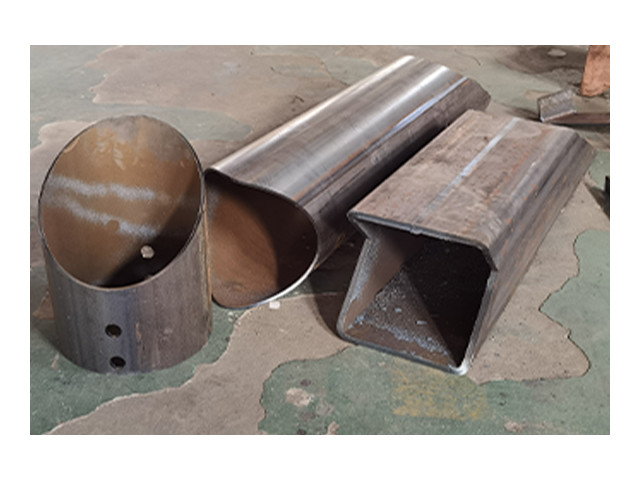

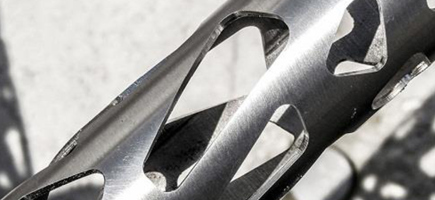

Professional Pipe Cutting Machine Application Scenario
Professional Pipe Cutting Machine Advantages
Feature 1

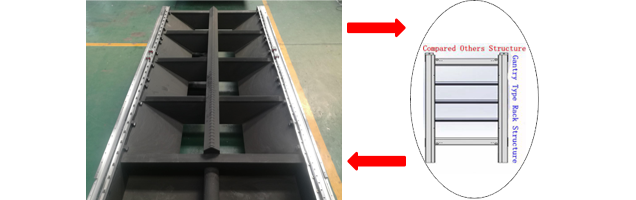

Guide pass Steel plate integral welding
1. The main frame is made of full steel plate welding to ensure that the model is stable for a long time without deformation

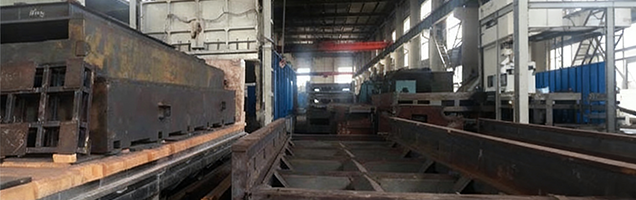

2. The bed is annealed by a large annealing furnace
3. The bed is formed once through imported gantry milling
4. Using the gantry rack double guide rail, double servo drive structure
5. Improve the stability and rigidity of the Y-axis cross-beam
6. Ensure the high accuracy and high dynamic performance of the Y-axis crossbeam movement
7. The Y-axis beam runs at high speed and smoothly, greatly reducing the gas consumption
Feature 2

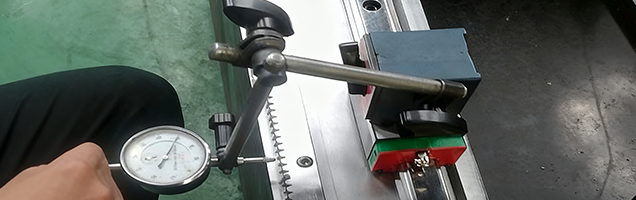

High precision components

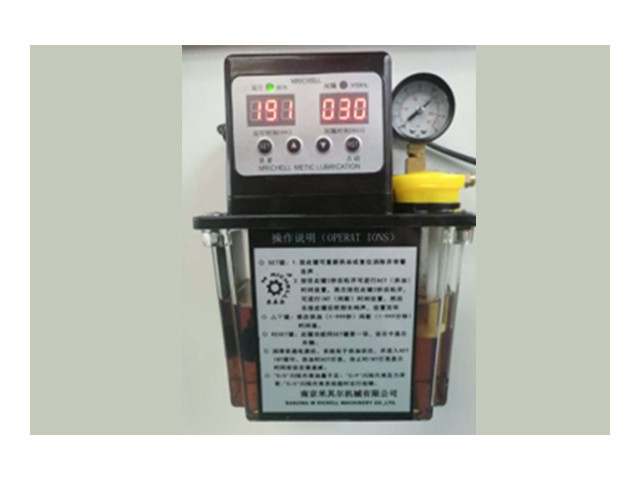

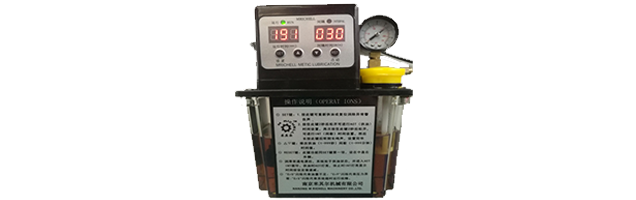

Machine tool is equipped with automatic refueling

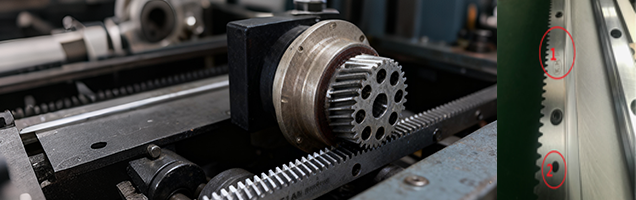

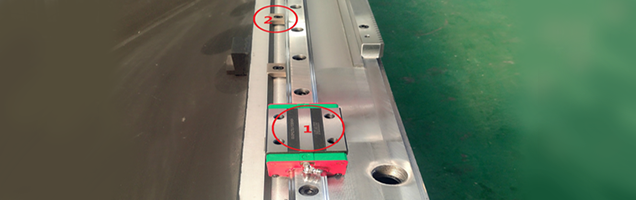

pump：Automatic lubrication system for Liner guide and
Rack and pinion.which can easily lubricate smoothly and automatically, so that can ensure flexibility and stably of transmission system. Free maintenance and extend the lifetime of working tables.
Professional Pipe Cutting Machine Technical Parameters
Laser pipe Cutting Machine offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
|
Model
|
RWG-60131
|
RWG-6016D | RWG-6022D |
RWG-6035D
|
Other
|
|
Cut pipe length
|
6000mm
|
6000mm | 6000mm |
6000mm
|
9000mm/12000mm/etc
|
Cut pipe diameter | φ0-130mm | φ10-160mm | φ10-220mm | φ25-350mm | φ230/520/560/etc |
Laser power | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000W/30000wW/other | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000W/30000wW/other | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000W/30000wW/other | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000W/30000wW/other | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000W/30000wW/other |
Setting accuracy | ≤+ 0.03mm/min | ≤+ 0.03mm/min | ≤+ 0.03mm/min | ≤+ 0.03mm/min | ≤+ 0.03mm/min |
|
Repeat positioning precision
|
≤+ 0.02mm/min
|
≤+ 0.02mm/min | ≤+ 0.02mm/min |
≤+ 0.02mm/min
|
≤+ 0.02mm/min
|
Maximum positioning speed | 120m/min | 120m/min | 120m/min | 120m/min | 120m/min |
A/P rotation of axes | N*360° | N*360° | N*360° | N*360° | N*360° |
Parameters within this range reflect the wide applicability of the Laser pipe Cutting Machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
Professional Pipe Cutting Machine Details Display

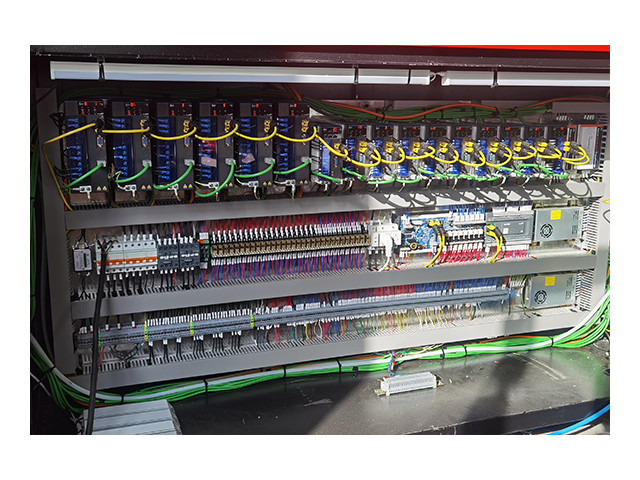

Electrical cabinet

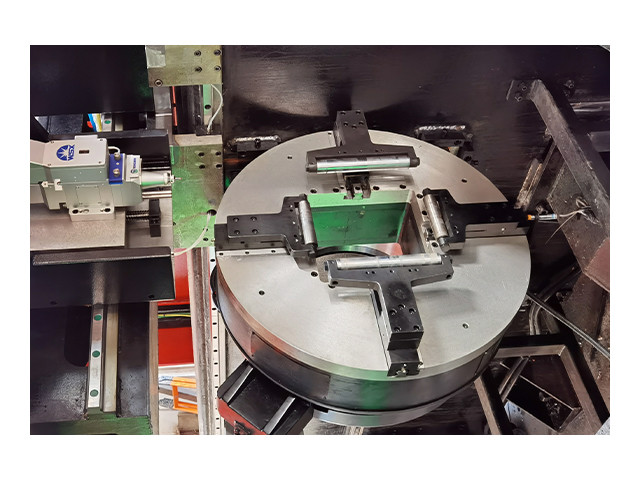

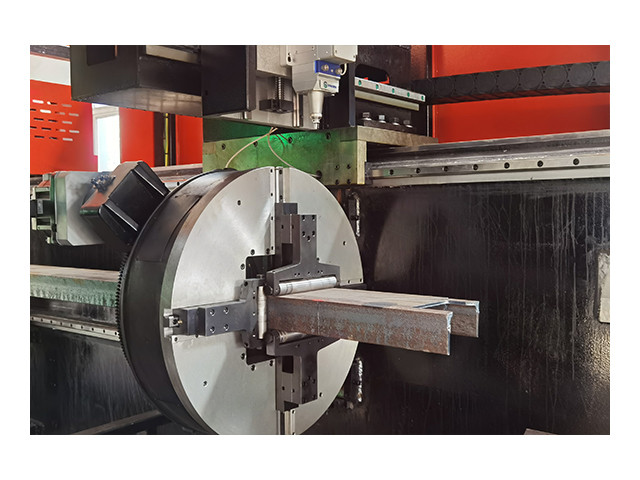

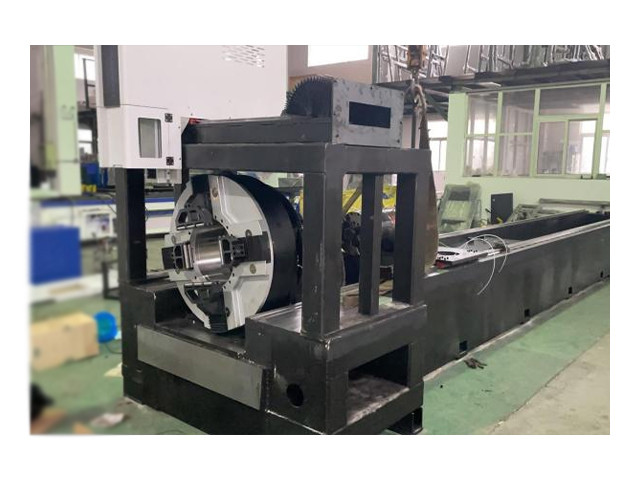

Chuck

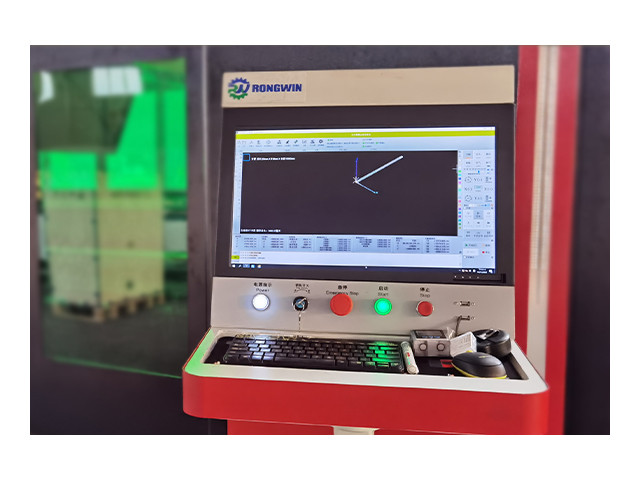

Control system

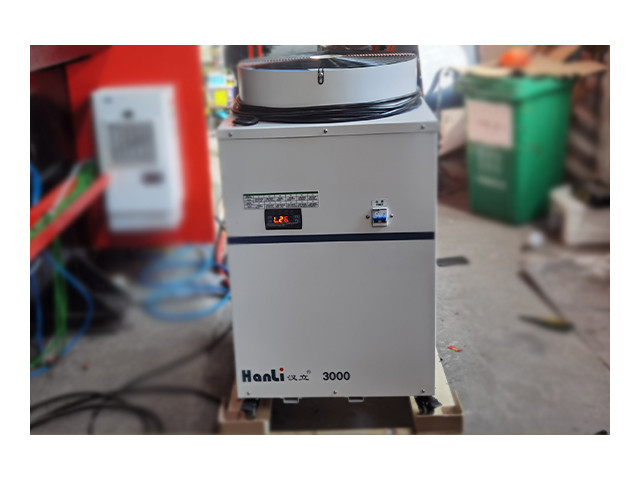

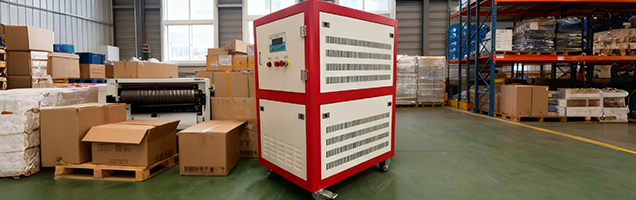

Water cooling
Professional Pipe Cutting Machine FAQ
What materials can the laser pipe cutting machine cut?
The laser pipe cutting machine is capable of cutting various materials, including carbon steel, stainless steel, aluminum, brass, copper, and more.
What is the maximum pipe length and diameter the machine can handle?
he RWG-12000Gx220-3000W Laser Pipe Cutting Machine can handle pipes up to 12 meters in length and a maximum diameter of 220mm.
How precise is the cutting process?
The machine offers high cutting precision, ensuring smooth, burr-free edges and accurate cuts to meet high-quality standards.
Is the machine compatible with different pipe types?
Yes, it can cut various pipe types, including round, square, rectangular, and other profiles.
