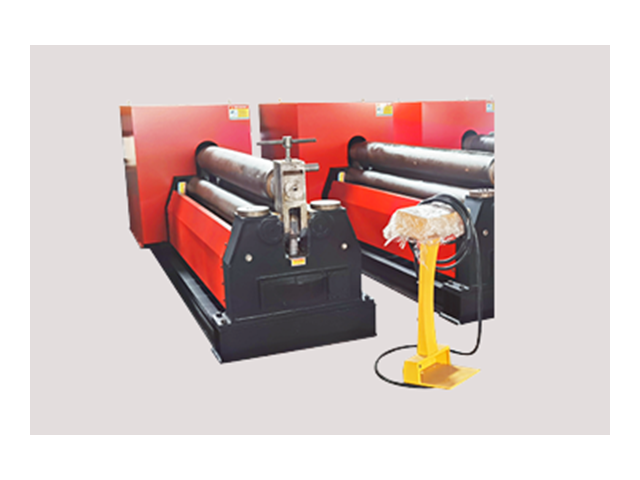

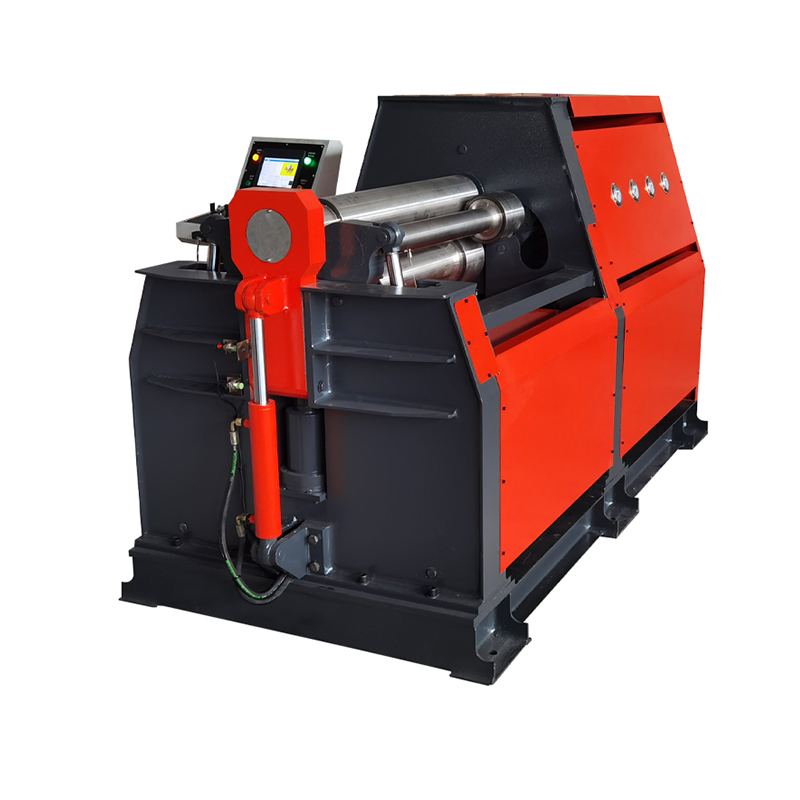

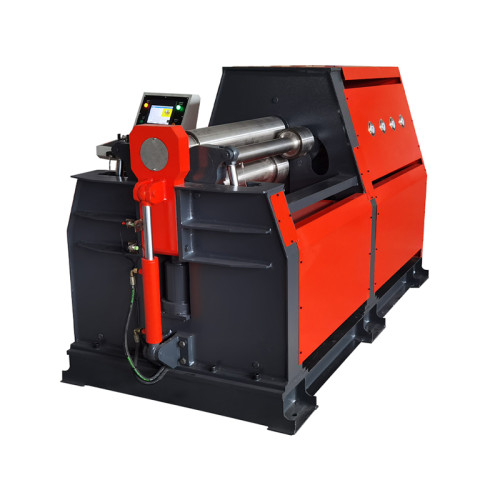

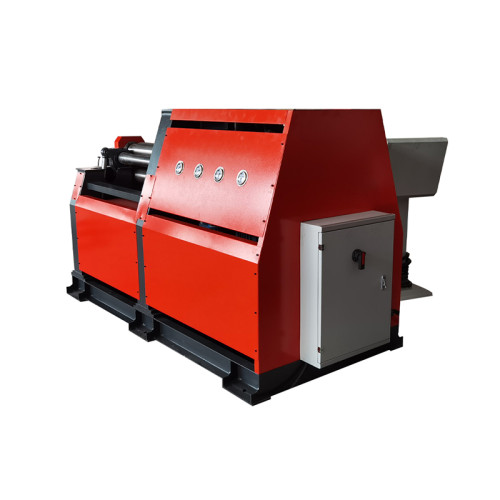

Stainless plate bending rolling machine with motor and gearbox | For end forming
- Price
- US $6000-5000
- Model
- plate rolling machine
- MOQ
- 1 piece
Item specifics
- Product Name
- Plate Rolling Bending Machine
- Function
- Roller-Bending
- Application
- Steel Plate Sheet Rolling
- Keyword
- Plate Rolling Machine
- Usage
- Metal Sheet Folding Rolling
- Type
- W11/W11S/W12NC
- Max Rolling Thickness
- 6mm~200mm
- Port
- Shanghai
Review
Description

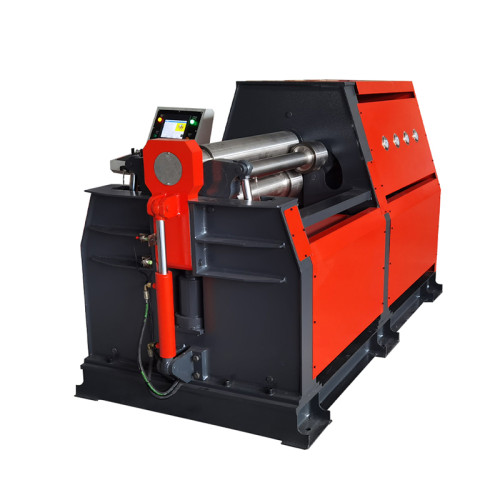

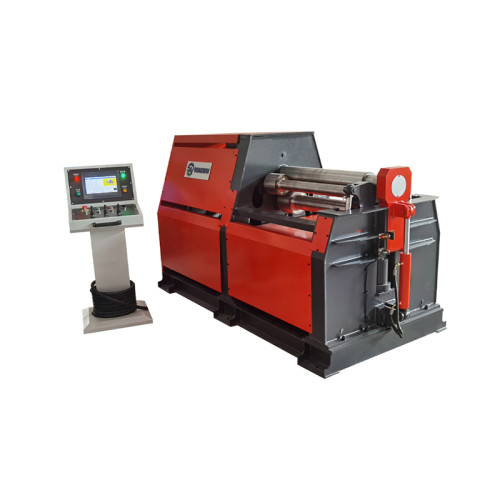

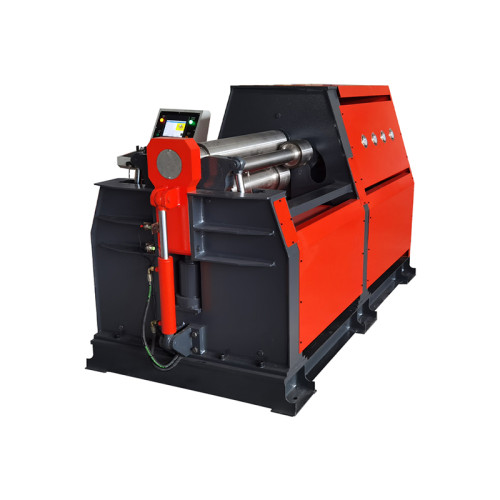

Plate Bending Rolling Machine Introduction
Rongwin Plate Bending Machines: Versatile Solutions for Various Plate Shaping Needs
Rongwin manufactures various plate bending machines, including mechanical and hydraulic three-roller, upper-roller universal, and four-roller types, designed for continuous bending of plates into O, U, multi-segment R, and other shapes to meet diverse customer needs.

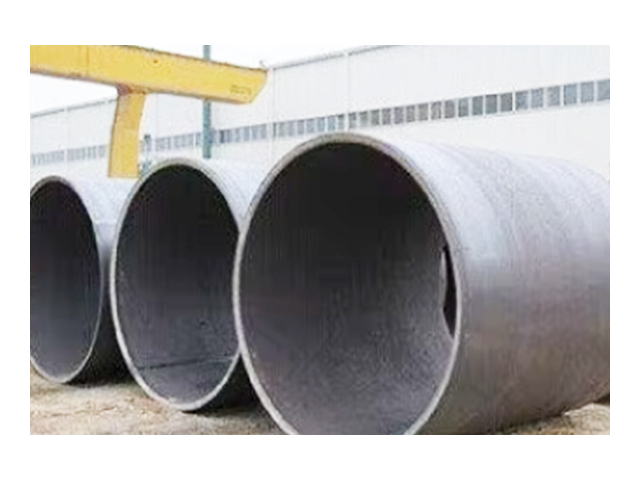

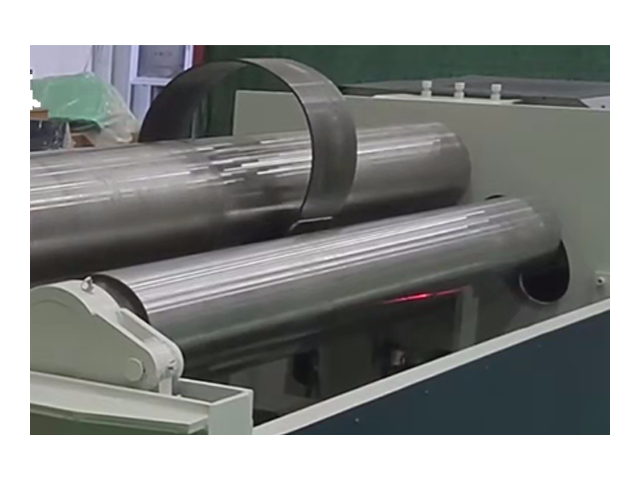

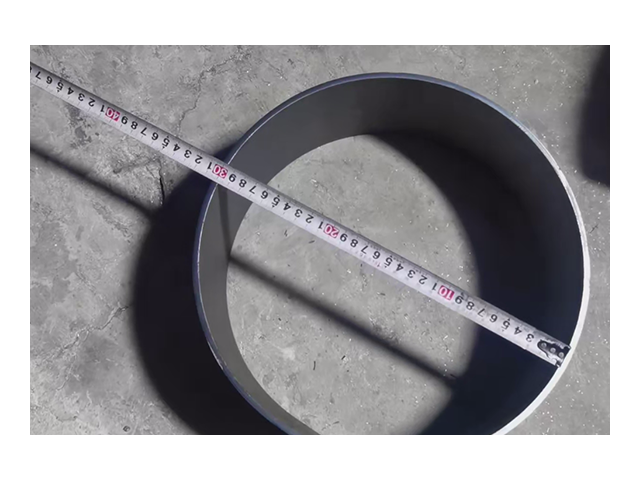

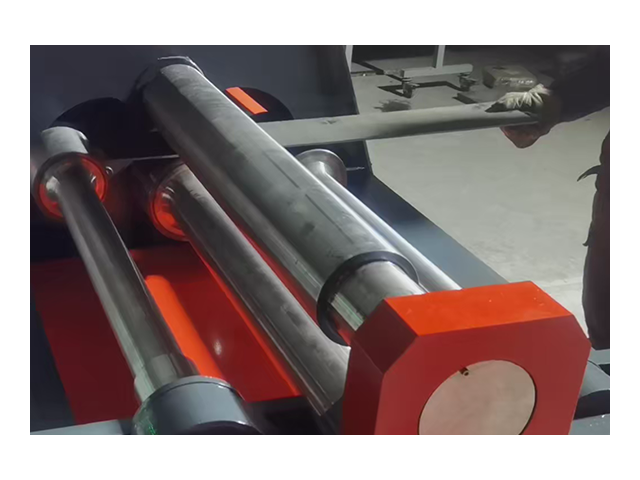

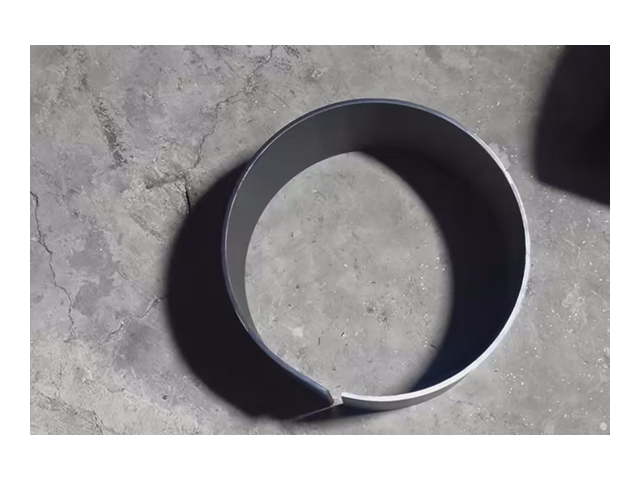

Plate Bending Rolling Machine Application Scenario
Plate Bending Rolling Machine Advantages
Feature 1
Durable
1. Steel plate welding parts
2. Adopting a frame structureThe bearing capacity is threetimes that of a regular bracket.
Feature 2
Secure
1. Hard tooth surface Reducer ZSY series asthe main drive
2. All gearboxes are welded with steel plates
3. Install brake system
Plate Bending Rolling Machine Technical Parameters
Plate rolling machine series offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Type | Max.rollingthickness(mm) | Max.pre-rollingthickness(mm) | Platewidth(mm) | Diameter of upper roller(mm) | Mainmotorpower(kw) |
W12NC-25x2000 | 25 | 20 | 2000 | 350 | 22 |
W12NC-25x2000 | 25 | 20 | 2500 | 400 | 37 |
W12NC-30x2000 | 30 | 25 | 2500 | 300 | 37 |
|
W12NC-30x2000
|
30
|
25
|
2500 | 400 |
37
|
|
W12NC-30x2000
|
30
|
25
|
3000 | 550 |
45
|
|
W12NC-40x2000
|
40
|
32
|
3000 | 610 |
55
|
W12NC-50x2000 | 50 | 40 | 3000 | 670 | 55 |
|
W12NC-60x2000
|
60
|
50
|
3000 | 730 |
75
|
W12NC-70x2000 | 70 | 60 | 3000 | 780 | 75 |
W12NC-80x2000 | 80 | 65 | 3000 | 820 | 90 |
W12NC-90x2000 | 90 | 75 | 3000 | 880 | 90 |
W12NC-100x2000 | 100 | 80 | 3000 | 900 | 110 |
Parameters within this range reflect the wide applicability of the Plate rolling machine series shearing machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
Plate Bending Rolling Machine Details Display
System

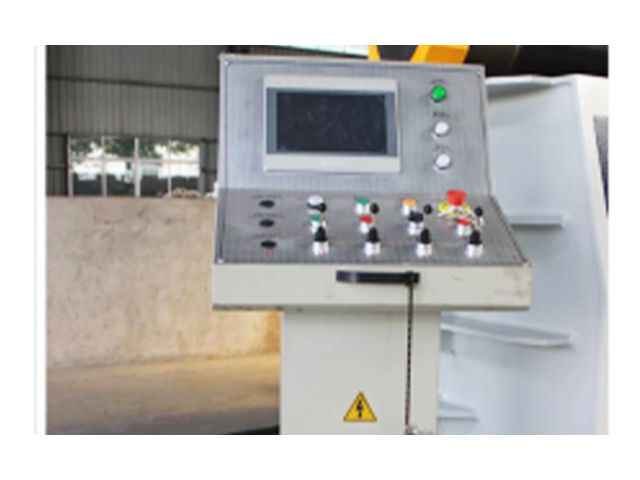

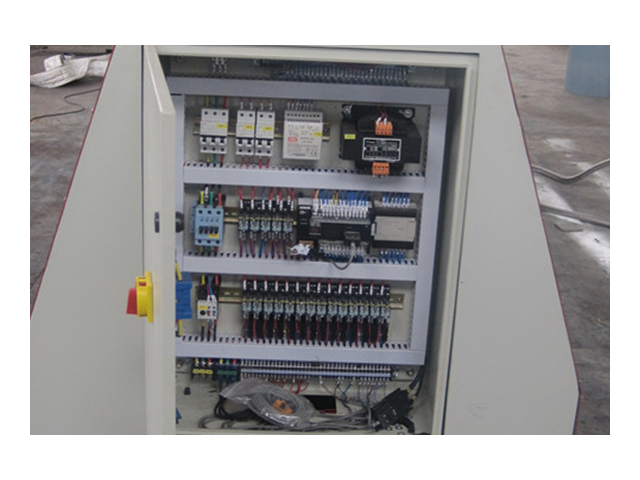

Electrical cabinet

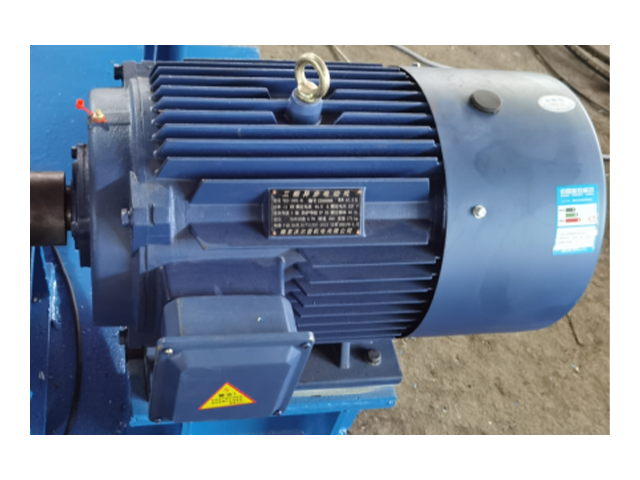

Motor

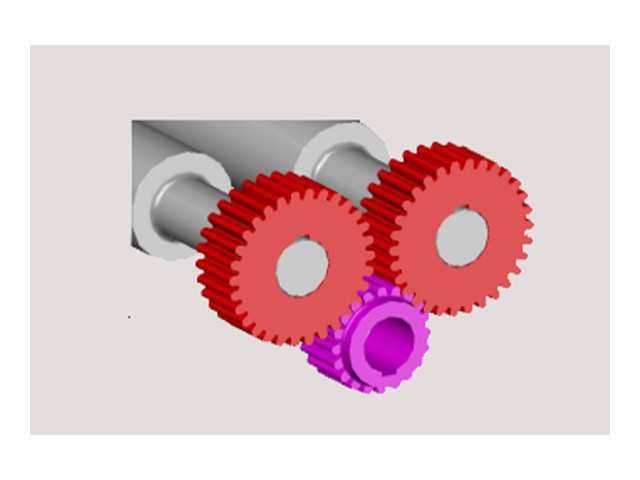

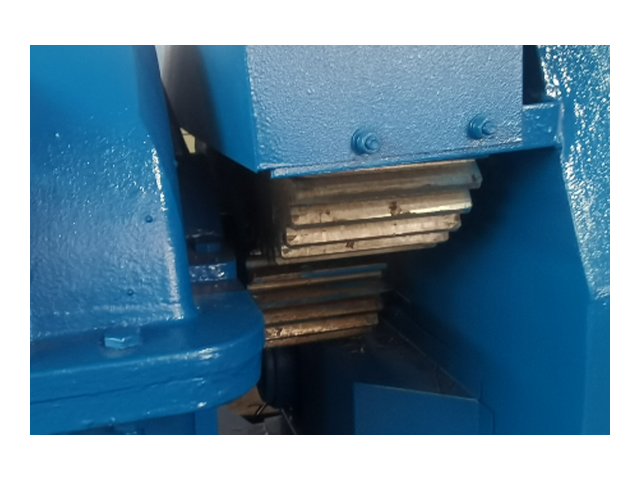

Gear
Plate Bending Rolling Machine FAQ
What is the coil capacity of the Plate Bending Rolling Machine?
The coil capacity will be specified by the manufacturer and could be listed as the maximumweight or coil diameter the machine can process. lf you're referring to a specific machine,you would need to check its technical specifications for the exact coil capacity.
What materials can the Plate Bending Rolling Machine ?
The machine is designed to cut a wide range of metals, including carbon steel, stainless steel, aluminum, and other non-ferrous materials.
How is the blade clearance adjusted on the Plate Bending Rolling Machine ?
The blade clearance is adjustable, allowing for precise cutting based on the thickness of the material being processed. This ensures clean, accurate cuts with minimal burr.
What are the key features of the Plate Bending Rolling Machine ?
Key features include an advanced hydraulic system, a user-friendly control interface, adjustable blade clearance, and a robust construction designed for long-term durability and stable performance.
