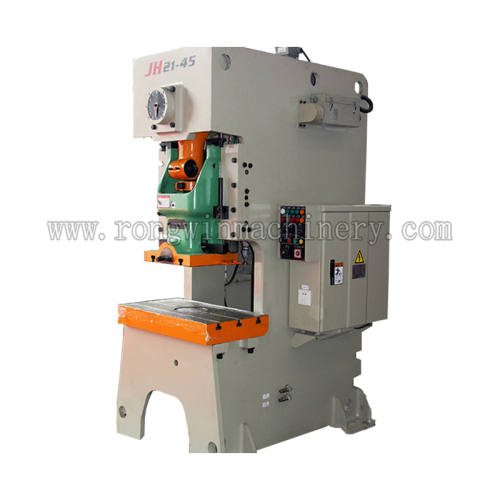

Hot Seller JH21 Pneumatic power press | open-type, high precision, motor pump core great price.
- Price
- US $20000-8000
- Model
- JH21-45
- MOQ
- 1 piece
Item specifics
- Product name
- Power press machine
- Application
- Metal sheet stamping
- Keyword
- Pneumatic power press
- Brand
- Rongwin
- Color
- Optional color
- Type
- Mechanical eccentric
- Model
- JH21
- Power(W)
- 7.5KW
- Material
- Steel material
Review
Description

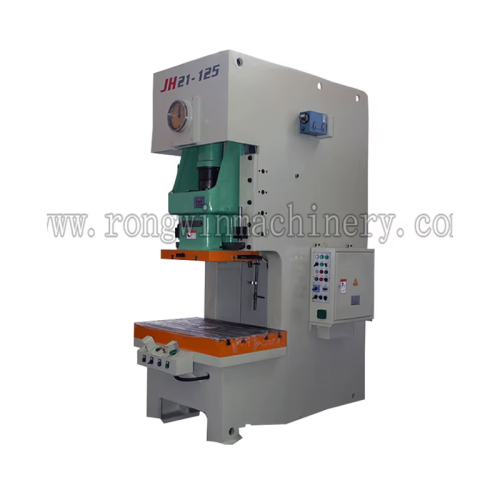

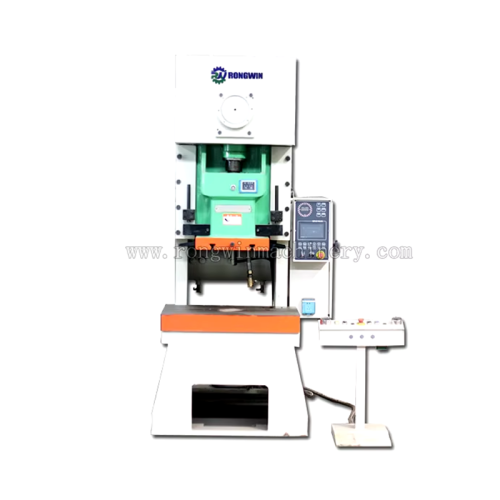

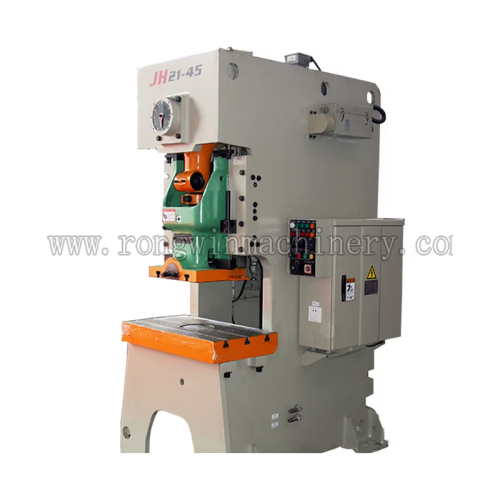

JH21 Series power press Pneumatic Punching Machine
JH21 Series Pneumatic Punching Machine
The JH21 Series Pneumatic Punching Machine is a state-of-the-art, high-performancemachine designed for precision metal forming and punching applications. With its open.type fixed bench design, this punching machine is ideal for high-speed operations andensures consistent accuracy in punching thin and thick metal sheets. quipped with apneumatic system, it operates efficiently, providing optimal force and power for variousindustrial tasks.

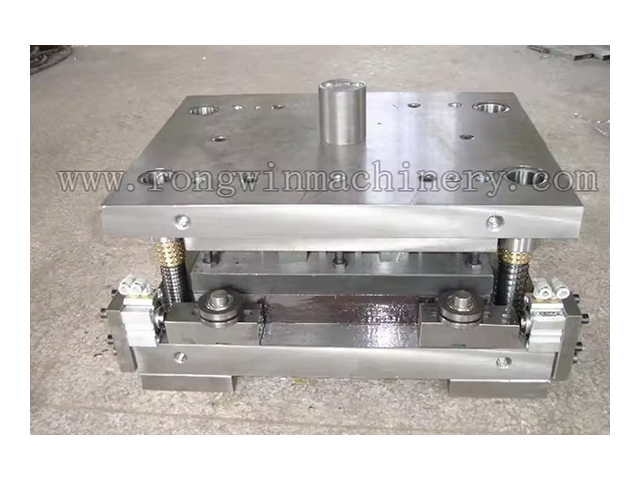

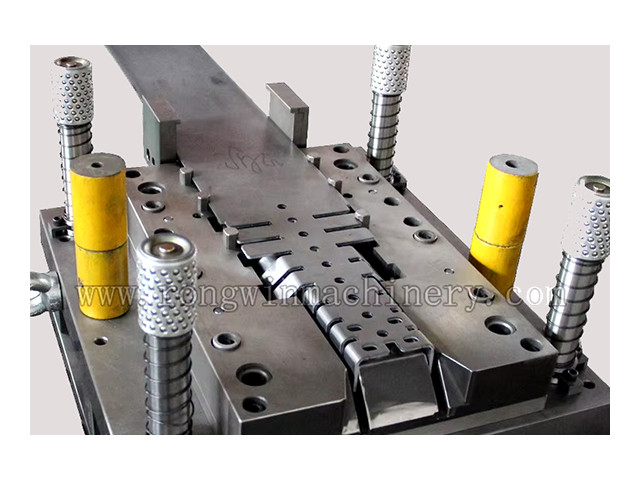

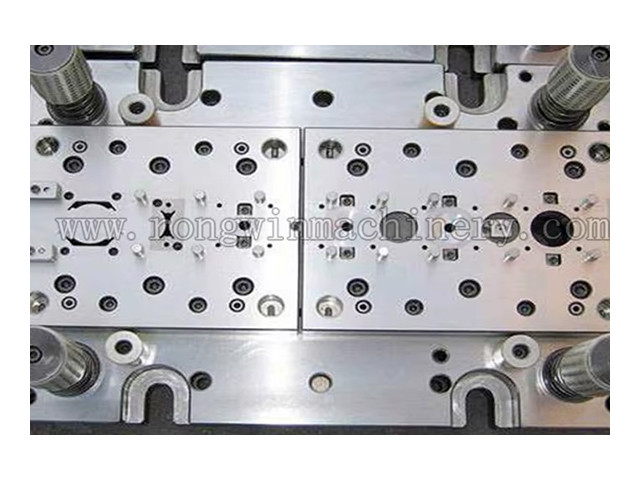

Customized Production Of Various Stamping Molds
JH21 Series Of Power Press Has The Following Advantages
Feature
1. The steel plate welded body has good rigidity and stable accuracy.
2. Adopt dry or wet pneumatic friction clutch and brake, the action is sensitive and reliable.
3. The large gears and gear shafts are precisely ground, and the machine tool has low operating noise.
4. Slider six-sided guide rail, with pneumatic balancing device, stable operation and accurate accuracy.
5. The hydraulic overload protection device is adopted to effectively protect the press and mold.

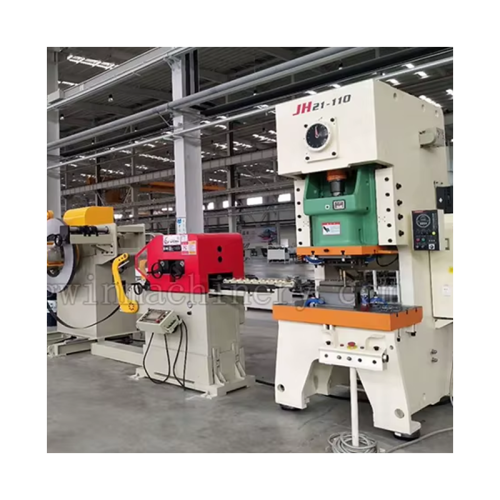

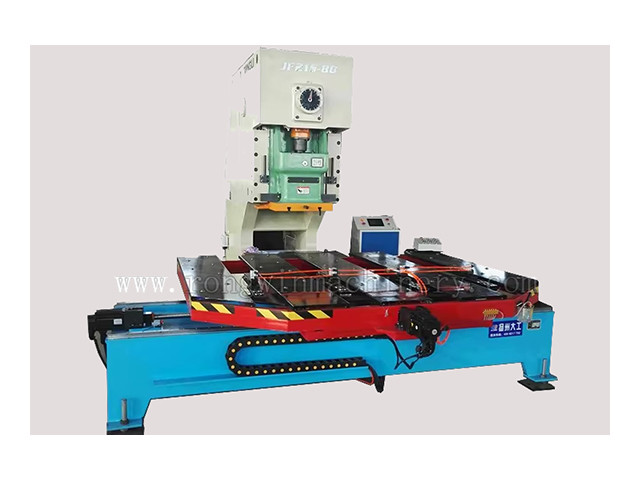

6. After adopting PLC control and automatic feeding device, it can form a single-machine automatic or multi-machine automatic stamping production line.
7. In addition to the fixed speed, this model has two infinitely variable speed travel options, which are more suitable for stamping process requirements and improve production efficiency.
Technical Specifications
JH21 series pneumatic punching machine ：
Type Specification | Nominal force(KN) | Full Force point(mm) | Slide block stroke(mm) | number of stroke(time/min) | Miax die set helght(mm) | Die set height adjustment(mm) | Distence from slide blockcenterto the frsme(mm) | Workable dimensions
(L·Rx F*B) | Weight (Kg) |
JH21-25 | 250 | 3 | 80 | 60-100 | 265 | 50 | 210 | 700*400 | 2600 |
JH21-45 | 450 | 3.2 | 120 | 50-80 | 300 | 60 | 225 | 810*440 | 3500 |
JH21-60 | 600 | 4 | 140 | 60-110 | 330 | 70 | 270 | 870*520 | 5500 |
|
JH21-80
|
800
|
4.5
|
160 | 55-100 |
355
|
80 | 310 | 950*600 | 7500 |
|
JH21-125
|
1250
|
5
|
180 | 50-95 |
390
|
90 | 350 | 1100*680 | 11000 |
|
JH21-160
|
1600
|
6
|
200 | 40-75 |
440
|
110 | 390 | 1170*760 | 15200 |
JH21-200 | 2000 | 7 | 250 | 40-75 | 510 | 110 | 430 | 1390*840 | 20500 |
Parameters within this range reflect the wide applicability of the JH21 Series Pneumatic Punching Machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
JH21 Series Power Press Optional Allocation

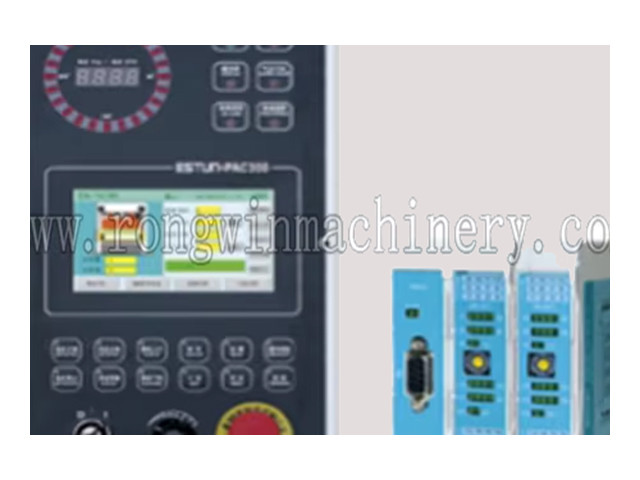

PAC-300 CNC system

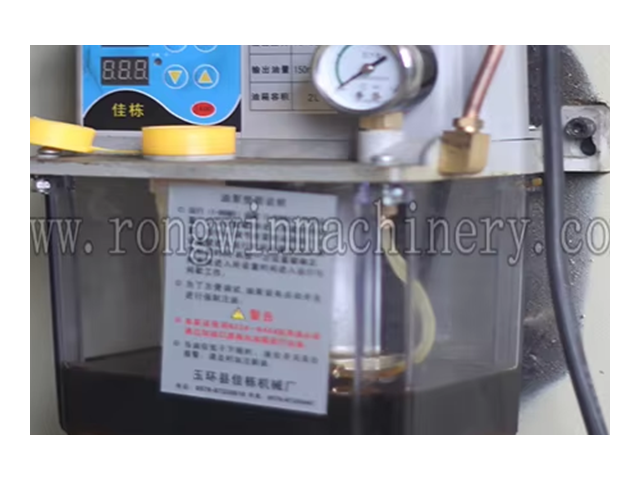

Auto lubrication device

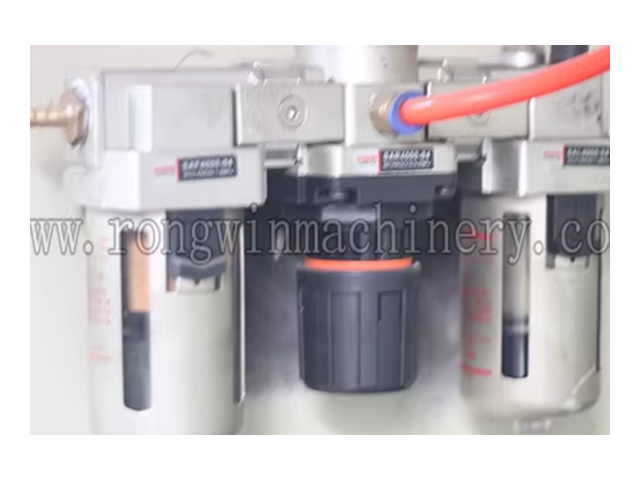

Air distribution system

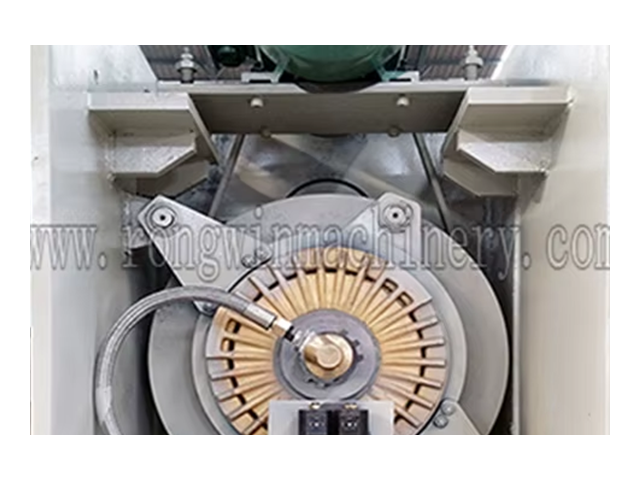

Main motor pneumatic friction clutch

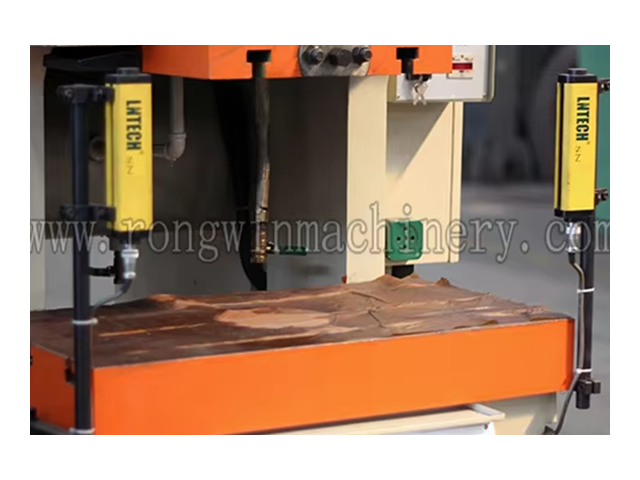

Photo-electronic safety device

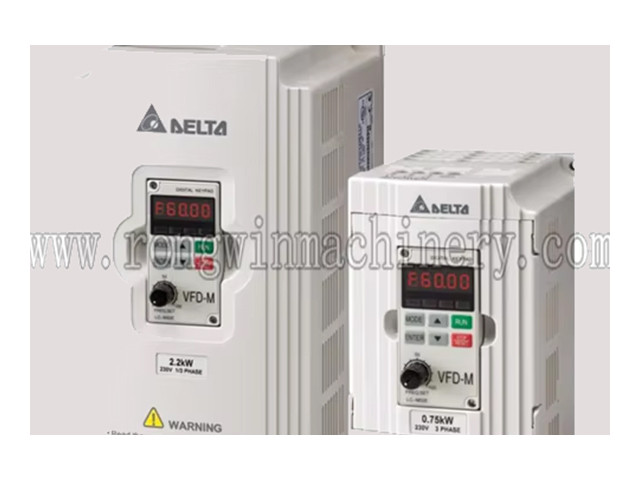

Variable-frequency drive and motor
JH21 Series Pneumatic Punching Machine Faq
What are the main advantages of the JH21 Series Pneumatic Punching Machine electro-hydraulic synchronization system?
Electro-hydraulic
What types of materials can the JH21 Series Pneumatic Punching Machine process?
JH21 series pneumatic punching machine is suitable for bending various metal plates such as stainless steel, carbon steel, aluminum, etc.
What are the main features of the JH21 Series Pneumatic Punching Machine ?
Key features include:
The steel plate welded body has good rigidity and stable accuracy.
Adopt dry or wet pneumatic friction clutch and brake, the action is sensitive and reliable.
Can the JH21 Series Pneumatic Punching Machine be customized to meet specific needs?
Yes, the JH21 series pneumatic punching machine can be customized with various options, such as automatic backgauge, crowning system
