The Complete Guide to Servo Press Brakes: Working Principles, Advantages, Cost Analysis, and Selection Guide

The Servo Press Brake—particularly the All-Electric Servo Press Brake and the Electro-Hydraulic Servo Hybrid Press Brake—represents the most significant technological leap in bending technology over the past two decades. By replacing or optimizing power-hungry hydraulic pumps with high-torque AC servo motors, precision planetary roller screws, and closed-loop optical encoder feedback, servo press brakes achieve unprecedented bending accuracy, cut power consumption by up to 50% to 70%, eliminate hydraulic oil degradation risks, and slash cycle times by 30% or more.

This comprehensive guide delivers an in-depth technical analysis of servo press brake engineering, comparative performance metrics against hydraulic systems, a rigorous Total Cost of Ownership (TCO) calculation model, and practical selection guidelines for manufacturing professionals worldwide.

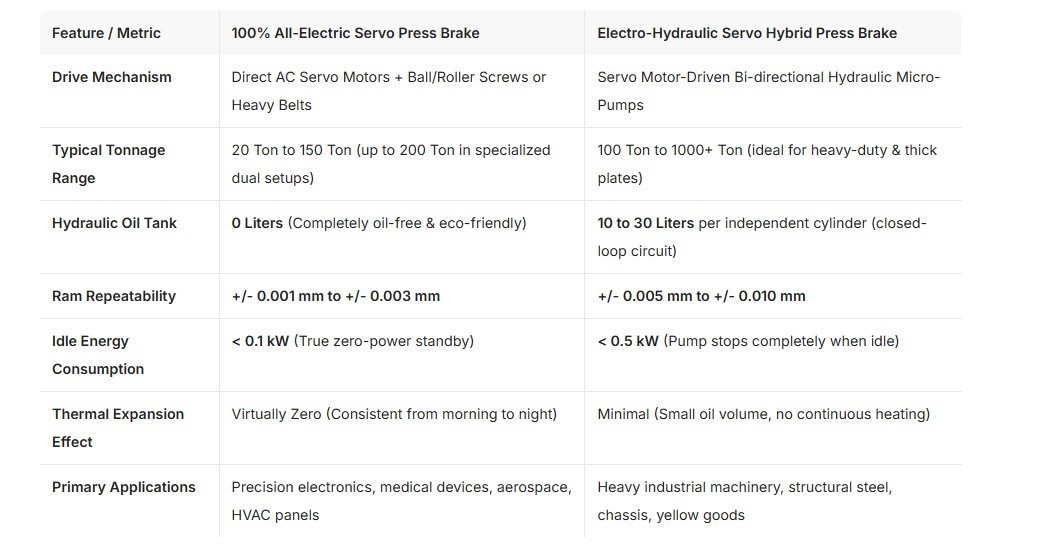

At its fundamental level, a press brake forms sheet metal by driving a punch (upper tooling) into a V-shaped die (lower tooling). While traditional machines rely on continuous hydraulic oil pressurization regulated by proportional valves, an all-electric servo press brake utilizes direct electromechanical servo transmission.

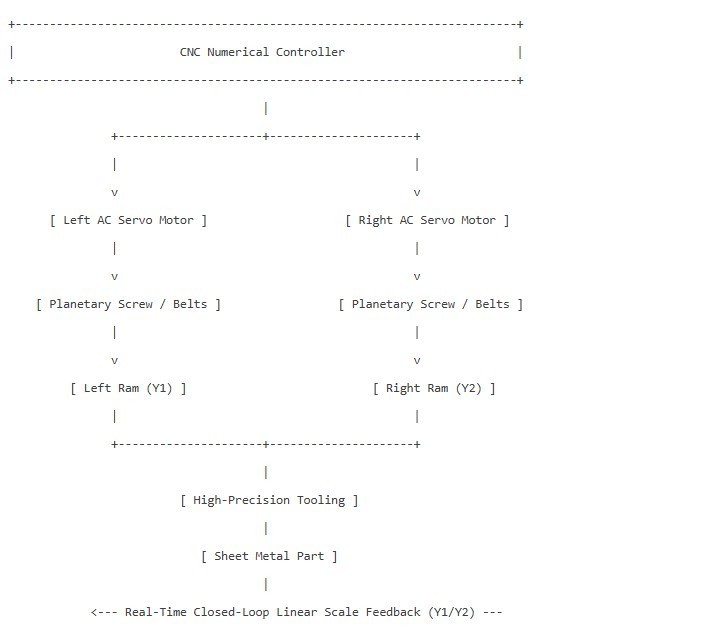

When the operator initiates a bending cycle:

1. The CNC numerical controller calculates the exact stroke depth (Y1/Y2 axes positioning) based on material thickness, tensile strength, V-die opening width, and programmed bending angle.

2. Dual synchronized AC brushless servo motors deliver direct, instantaneous torque to heavy-duty ball screws, planetary roller screws, or high-tensile belt-pulley pulley clusters.

3. The rotational motion of the servo motors is converted into linear downward motion of the upper ram (or upward motion of the lower bed) with micrometer-level precision.

4. Optical linear scales mounted on independent C-frames measure the real-time position of the ram, feeding data back to the CNC at kHz frequencies to ensure closed-loop synchronization between the left (Y1) and right (Y2) cylinders.

The single greatest operational difference between hydraulic and servo press brakes lies in their power-on profile:

Traditional Hydraulic Press Brake:

●The main asynchronous AC motor runs continuously at full speed (typically 7.5 kW to 37 kW) from the moment the machine is powered on, regardless of whether the operator is bending, loading parts, inspecting angles, or changing tools. Energy is continuously dissipated as heat into the hydraulic oil reservoir.

Servo Press Brake:

●The servo motors consume electricity

only during active motion

. When the ram is stationary, holding a sheet, or in standby mode between bends, electrical draw drops to near zero (< 5% of rated power). During the deceleration and upward return stroke, modern regenerative servo drives can even recover kinetic energy back into the electrical grid or capacitor banks.

Servo electric press brakes eliminate hydraulic thermal drift completely. Equipped with linear encoders with 0.001 mm resolution, the direct mechanical transmission ensures that the first bend produced at 8:00 AM matches the 10,000th bend produced at 10:00 PM down to fractions of a degree.

●Approach Speed:Up to 200 mm/s to 220 mm/s (vs. 100–120 mm/s for hydraulic).

●Working Bending Speed:10 mm/s to 25 mm/s with stepless programmable speed modulation.

●Return Speed:Up to 200 mm/s, dramatically shortening idle cycle times.

In high-mix precision production with 4 to 8 bends per workpiece, a servo press brake typically delivers a 30% to 45% increase in daily parts throughput.

●Noise Level:Traditional hydraulic units generate constant 75 dB(A) to 85 dB(A) pump noise. All-electric servo press brakes operate at under 62 dB(A), creating an ergonomic, whisper-quiet workshop environment.

●Zero Oil Leakage:Eliminating 150 to 400 liters of hydraulic oil avoids periodic oil replacement, filter disposal, sealing ring blowouts, and valve contamination. This makes all-electric servo machines indispensable for cleanroom environments such as medical equipment, pharmaceutical casings, and food-grade stainless steel fabrication.

When applying high tonnage across a 2-meter or 3-meter bed, both the upper ram and lower bed naturally experience micro-deflection, which traditionally causes "canoe-shaped" bending defects (over-bent ends and under-bent centers).Modern servo press brakes utilize CNC motorized mechanical crowning systems driven by dedicated servo motors, or multi-point hydraulic wedge matrices that automatically adjust the lower table curve in real-time based on calculated bending tonnage, workpiece length, and material elasticity.

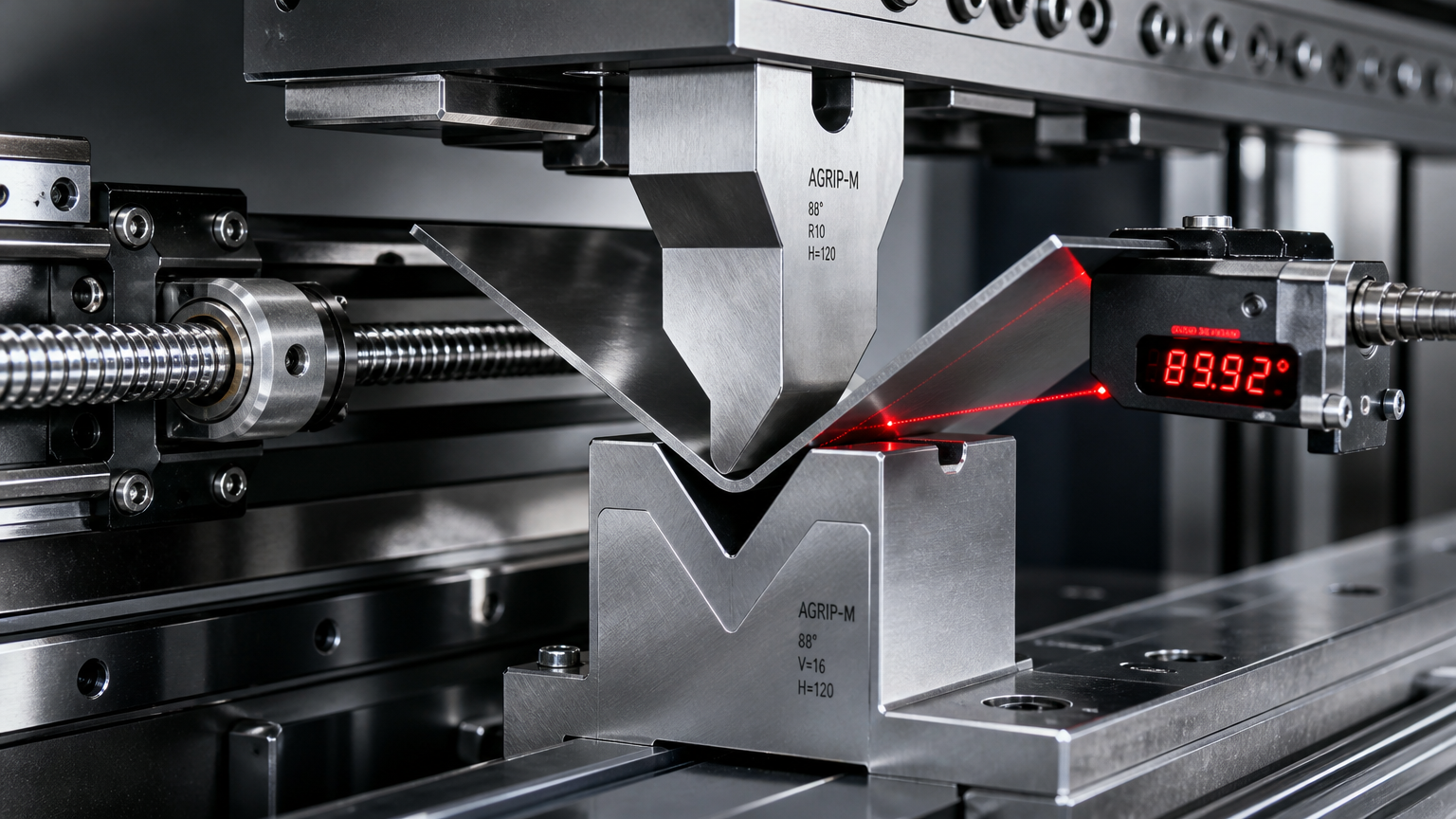

Material sheet thickness tolerances and rolling direction variances inevitably introduce angle fluctuations. Leading servo press brakes integrate non-contact laser optical angle measurement heads that scan the bending angle in real time during the stroke. If the detected angle deviates from the target (e.g., 90.0 deg), the CNC controller dynamically computes the material's instant springback coefficient and applies micro-correction before the punch releases, guaranteeing first-part accuracy with zero scrap.

To support rapid bending sequences, servo press brakes are outfitted with 4-axis, 5-axis, or 6-axis (X, R, Z1, Z2, X1, X2) backgauges powered by high-speed servo motors and precision linear guideways. Backgauge positioning speeds exceed 500 mm/s with positioning accuracy within +/- 0.02 mm, enabling seamless processing of complex stepped, tapered, or asymmetrical parts.

Equipped with open industrial communication protocols (OPC UA, MQTT, EtherCAT), modern servo machines seamlessly communicate with Manufacturing Execution Systems (MES). Plant operators can monitor real-time energy consumption, stroke count, tool wear status, OEE (Overall Equipment Effectiveness), and schedule predictive maintenance before mechanical failures occur.

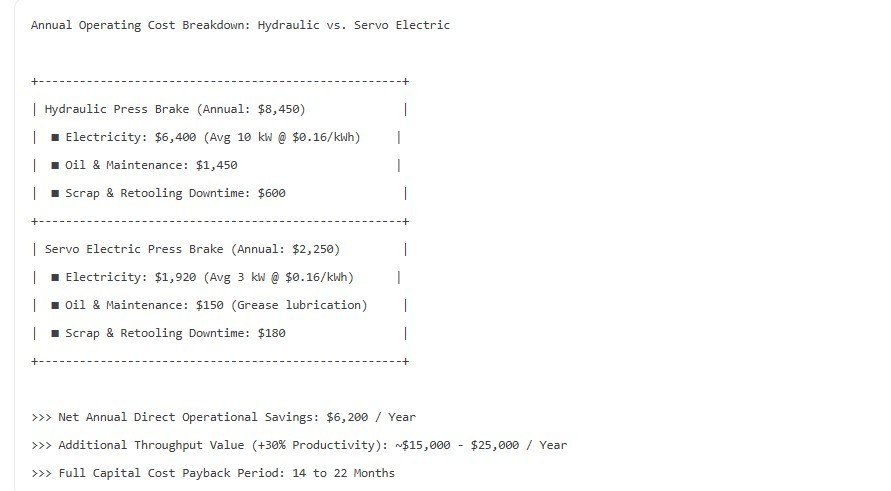

Let us examine a standard manufacturing scenario for a 60-Ton, 2000 mm press brake operating on a two-shift schedule (4,000 operational hours per year):

2.Maintenance & Fluid Elimination:Zero hydraulic oil purchases ($600/change), zero filter replacements, and zero seal kit overhauls.

3.Scrap Rate Reduction:Real-time angle control reduces test-bend scrap by 70%, saving valuable sheet metal stock (especially on stainless steel, aluminum, and copper alloys).

4.Tooling Longevity: Smooth, shock-free servo deceleration protects delicate hardened punch tips and V-die shoulders from hydraulic pressure spikes.

●Automated Centralized Lubrication:Ensure ball screws and linear guideways receive metered high-grade synthetic grease at programmed stroke intervals.

●Tooling Inspection & Alignment:Regularly verify upper-punch and lower-die centering to prevent asymmetric side-loading on servo mechanical drives.

●Environmental Management:Maintain electrical cabinet dust filters, ensuring cooling fans function properly to protect servo drives and CNC hardware from shop metal dust.

●Periodic Scale Calibration:Clean optical linear glass scales and check reading head air-purge pressure every 6 months to prevent micro-contamination.

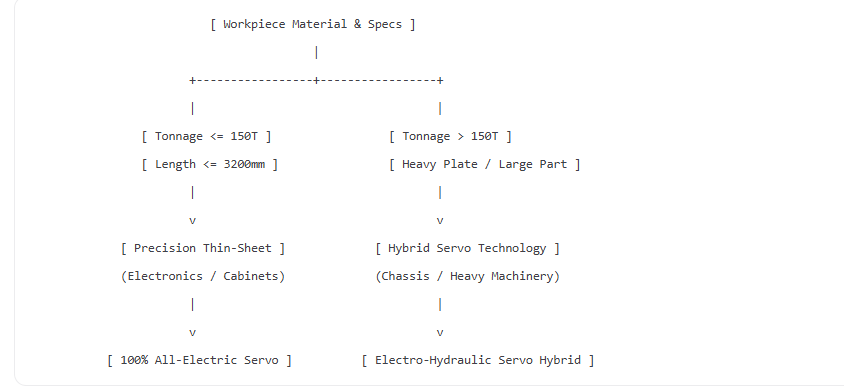

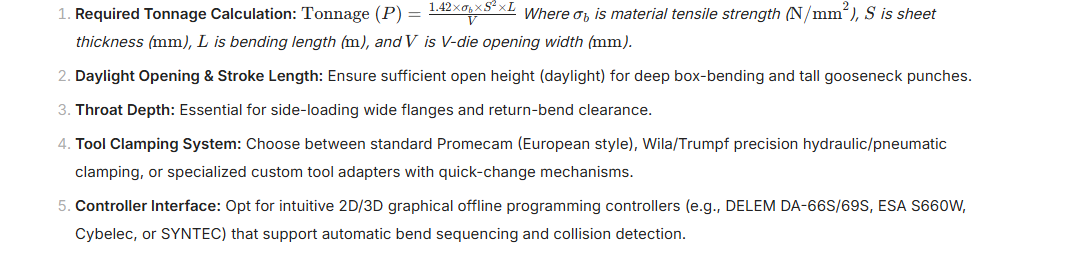

For fabricators looking to elevate their manufacturing capabilities, investing in servo press brake technology delivers the ultimate trifecta: uncompromised precision, unmatched speed, and industry-leading energy efficiency.
