In today's fast-evolving sheet metal fabrication industry, precision, cycle speed, and operational cost-efficiency define manufacturing competitiveness. As workpieces become more complex and tolerances tighten, traditional torsion bar press brakes are rapidly being replaced by advanced electro-hydraulic synchronous CNC press brakes.
In today's fast-evolving sheet metal fabrication industry, precision, cycle speed, and operational cost-efficiency define manufacturing competitiveness. As workpieces become more complex and tolerances tighten, traditional torsion bar press brakes are rapidly being replaced by advanced electro-hydraulic synchronous CNC press brakes.
Whether you are bending high-precision stainless steel chassis, architectural panels, heavy industrial machinery structures, or custom enclosures, choosing the right CNC hydraulic press brake machine is the single most critical investment for your workshop.

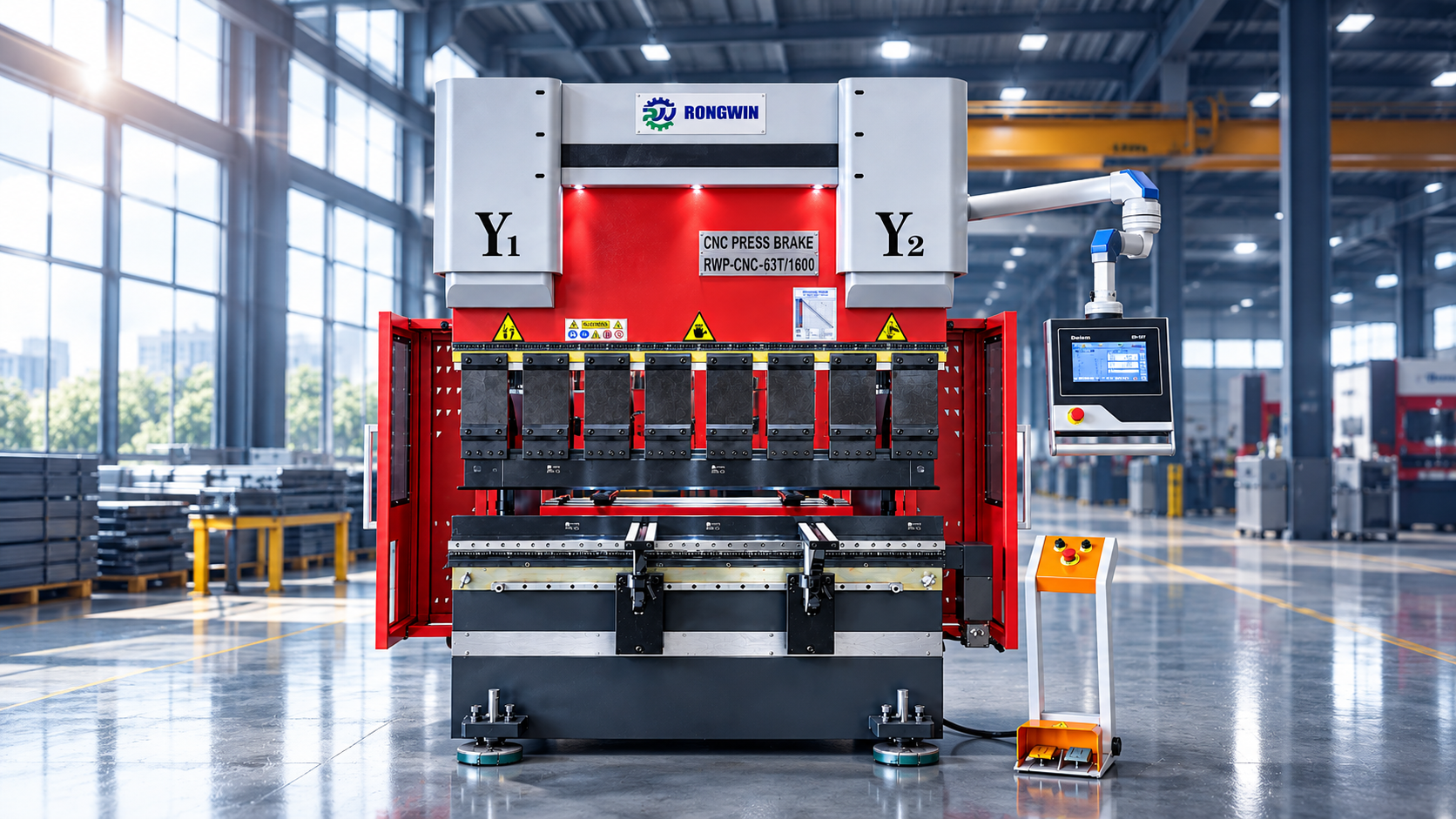

In this comprehensive guide, we dive into the engineering breakthroughs behind RONGWIN’s RWP-CNC (WF67K-E Series) Electro-Hydraulic Synchronous CNC Press Brake, exploring closed-loop servo hydraulics, nanometer-level optical feedback, mechanical deflection compensation, and Industry 4.0 smart factory integration.
1. What is an Electro-Hydraulic Synchronous CNC Press Brake?
An electro-hydraulic synchronous CNC press brake utilizes independent closed-loop proportional valve systems and dual optical grating scales on both side frames ($Y_1$ and $Y_2$ axes) to dynamically monitor and adjust cylinder position in real-time.
Unlike mechanical torsion bar machines that rely on a rigid connecting bar, electro-hydraulic synchronization ensures:
True Real-time Parallelism: Independent dual-cylinder position feedback prevents ram tilting, even under severe off-center loading.
Nanometer-Level Positioning Accuracy: Repeatability reaches $\pm 0.01\text{ mm}$, meeting the most demanding aerospace, medical, and electronic enclosure standards.
Flexible Multi-Stage Bending: Full programmability of approach speed, pressing speed, decompression, and return stroke.
2. Core Engineering Innovations of RONGWIN RWP-CNC / WF67K-E Series
The RONGWIN RWP-CNC / WF67K-E Series represents the pinnacle of modern metal press brake machinery, combining heavy-duty mechanical rigidity with world-class international components.
+-----------------------------------------------------------------------------------+ | RONGWIN RWP-CNC Core Technology Matrix | +-----------------------------------------------------------------------------------+ | [ closed-Loop Control ] -> Germany Rexroth Valves + Italy GIVI Optical Scale |
| [ Deflection Compensation ] -> CNC Dynamic Mechanical Crowning (V-Axis) |
| [ Smart Drives & Power ] -> Yaskawa / Inovance Servo + Voith / Eckerle Pump |
| [ Precision Tooling ] -> WILA Hydraulic Clamping / 42CrMo Hardened Tooling |
| [ Optical Operator Safety ] -> Lazersafe IRIS / DSP Laser Protection System |
| [ Industry 4.0 Connectivity] -> 2D/3D CAD/CAM Offline Programming & Real-time OEE|
1) Germany Rexroth Closed-Loop Servo Hydraulic System
At the heart of the RWP-CNC is a high-response Germany Rexroth closed-loop hydraulic system, integrated with proprietary high-flow prefilling valves and synchronization valve blocks. Coupled with Germany ECKERLE / VOITH low-noise pumps and Inovance/Yaskawa servo drive motors, the machine offers:
Up to 35% Energy Savings: The servo-driven pump only delivers oil upon demand, drastically reducing idle power consumption.
Ultra-Quiet Operation: Working noise is suppressed below 50 dB, creating a safer and more pleasant workshop environment.
Extended Hydraulic Life: Lower oil temperatures and Japanese NOK premium seal rings eliminate oil leakage and prolong oil change intervals.
2) Optical Synchronization via GIVI / FORGO Linear Scales
High-precision optical grating scales from Italy GIVI (or Spain FORGO) are mounted on dedicated "C-frames" isolated from main frame deflection. The CNC controller continuously samples $Y_1/Y_2$ position data at millisecond intervals, automatically correcting any deviation to maintain exact ram parallelism.

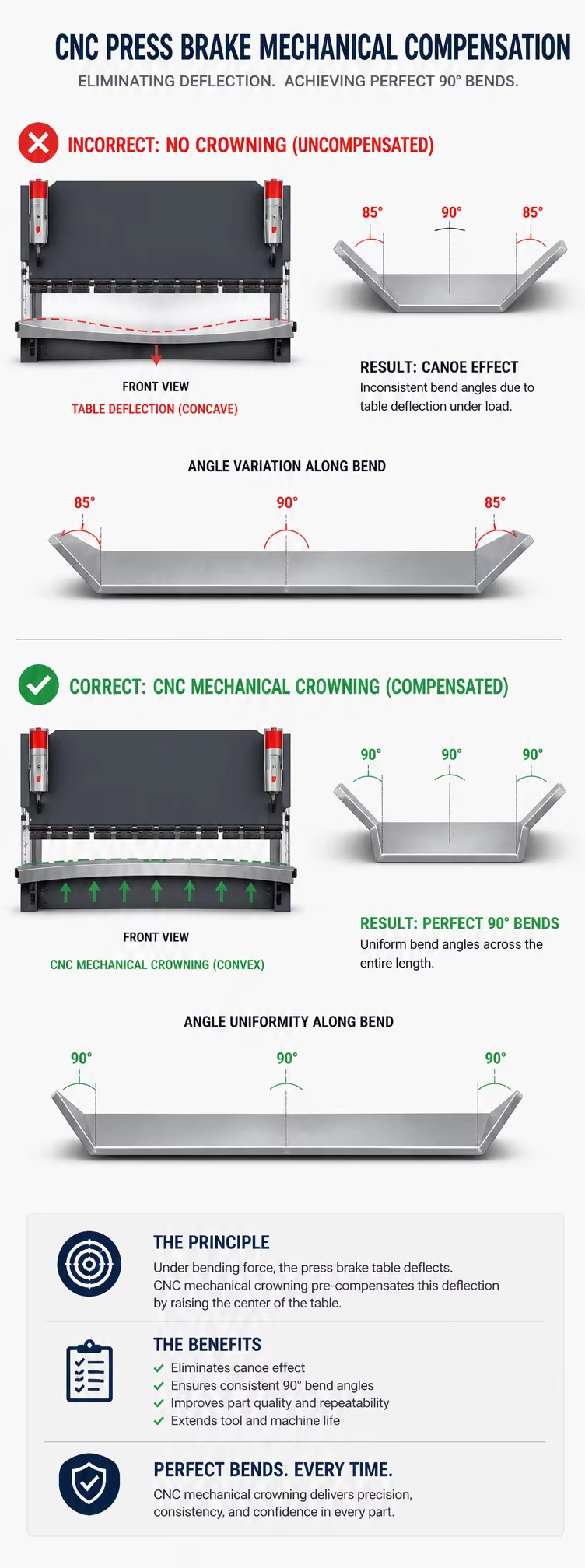

3) CNC Mechanical Crowning (Dynamic Table Compensation)
When bending high-tonnage or long-length sheet metal, the ram and worktable naturally undergo elastic deflection, which often causes "canoe-shaped" angles (under-bending in the center, correct angles at ends).
RONGWIN’s CNC Mechanical Compensation Table uses precision multi-wedge electric crowning driven directly by the CNC controller.
The system calculates the theoretical deflection curve based on material thickness, length, tensile strength, and die V-opening, guaranteeing a uniform $90^\circ$ angle across the entire workpiece length.
Deflection Comparison: [ Incorrect Preload / No Crowning ]: 85° (Left) --- 90° (Center) --- 85° (Right) -> ❌
Rejected Part [ Proper CNC Mechanical Crowning ]: 90° (Left) === 90° (Center) === 90° (Right) -> ✅ Perfect Uniformity
4) Heavy-Duty Multi-Axis Backgauge (NSK Ball Screws & Linear Guides)
Speed and positioning accuracy at the backgauge determine bend cycle times:
Configuration: Standard 2-Axis ($X, R$) up to advanced 4-Axis ($X, R, Z_1, Z_2$) and 6-Axis ($X_1, X_2, R_1, R_2, Z_1, Z_2$) backgauge options.
Drive Mechanism: Driven by digital AC servo motors and **NSK heavy-duty high-DN ball screws** with precision linear rails, ensuring backgauge repeatability of $\pm 0.01\text{ mm}$.

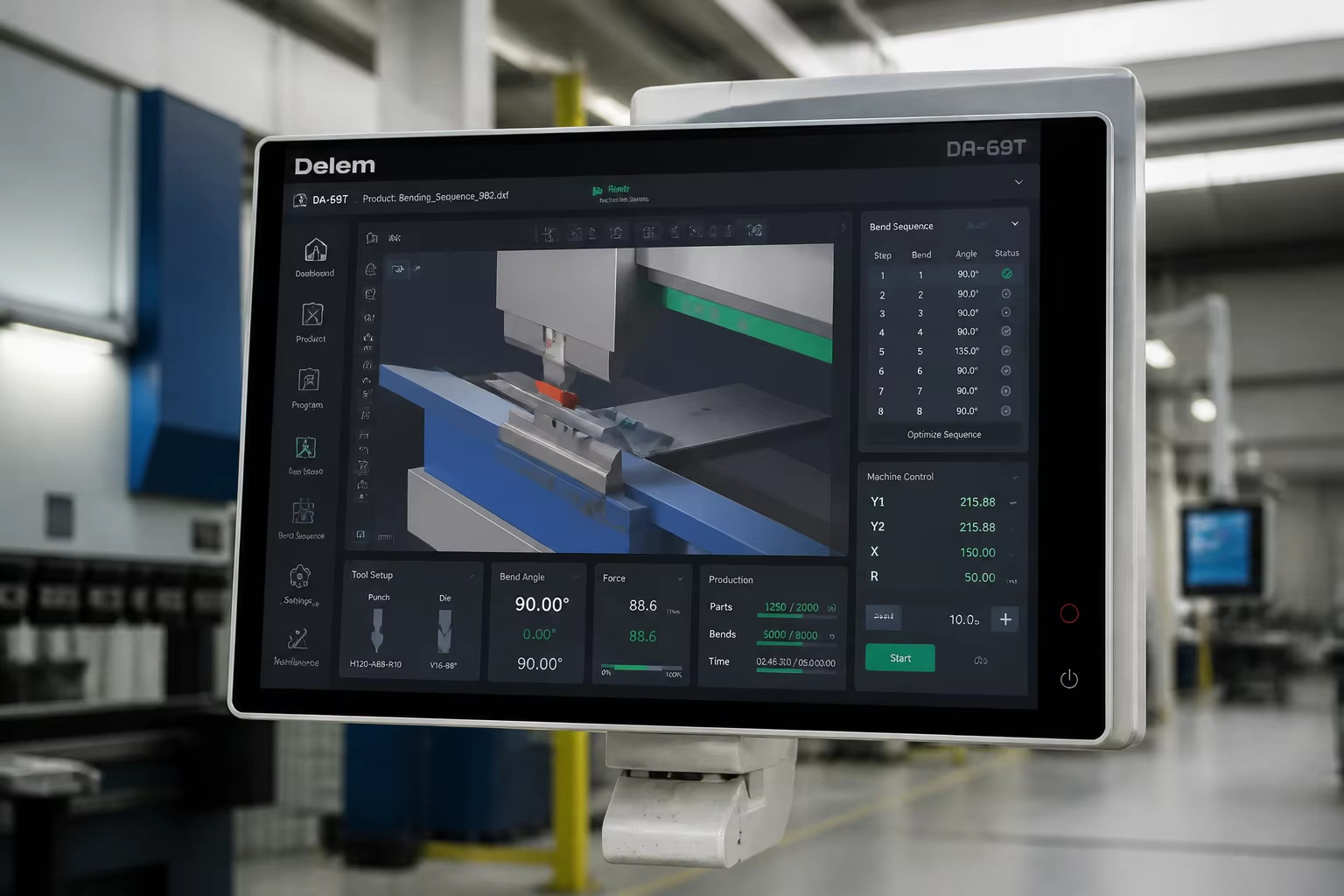

3. CNC Controller & Offline 3D Software: Bridging CAD to Bend
To help you configure the optimal industrial press brake machine for your specific production needs, review the standard and optional component matrix below:
| Category | Standard Configuration | Premium Optional Upgrades |
| Hydraulic Valves | Germany Rexroth Closed-Loop System | High-Speed Proportional Servo Package |
| Main Pump | Germany ECKERLE / VOITH Pump | Dual-Servo Pump System |
| Servo System | Inovance / Yaskawa AC Servo Drivers & Motors | Multi-Axis Tandem Synchronization |
Scale Feedback | Italy GIVI / Spain FORGO Linear Encoders | High-Resolution Magnetic Scales |
Tool Clamping | High-Strength Fast Mechanical Clamping | WILA Hydraulic Tooling Clamping System |
Safety Guards | Side & Rear Protective Doors + Interlock | Lazersafe IRIS Optical Camera System / DSP Laser |
Angle / Sheet Support | Front Sliding Support Arms (2 pcs) | CNC Sheet Follower (Bending Assist) |
Robotics | Foot Pedal Mobile Console | 6-Axis Robotic Bending Cell Integration |
5. Technical Specifications: Comprehensive Model Range (40T to 3000T)
From compact precision benders to massive heavy-plate tandem setups, RONGWIN provides a complete spectrum of hydraulic press brake machines:
Model (WF67K-Series) | Nominal Pressure (kN) | Bending Length (mm) | Column Distance (mm) | Throat Depth (mm) | Ram Stroke (mm) | Max Opening (mm) | Motor Power (kW) | Weight (kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 4800 |
100T/3200 | 1000 | 3200 | 2700 | 400 | 200/250 | 480/520 | 7.5 | 8500 |
160T/3200 | 1600 | 3200 | 2700 | 400 | 200/250 | 480/520 | 11 | 9500 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 15500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 31500 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 90000 |
1200T - 3000T | 12000 - 30000 | Up to 14000 | Custom | Up to 700 | Up to 400 | 1000 | $2 \times 45 - 2 \times 55$ | Heavy-Duty Tandem |
Note: Custom throat depth, extended daylight opening, and tandem press brake configurations (e.g., $2 \times 600\text{T}/6000\text{mm}$) are fully customizable upon request.
6. How to Select the Right Press Brake for Your Sheet Metal Application
When evaluating a press brake for sale, consider the following four fundamental calculation factors:
1. Required Tonnage Calculation:
$$P = \frac{1.42 \times \sigma_b \times S^2 \times L}{V}$$
(Where $\sigma_b$ is material tensile strength in $\text{N/mm}^2$, $S$ is sheet thickness in mm, $L$ is bending length in m, and $V$ is lower die opening in mm).*Always include a 20–30% safety margin for high-tensile materials like stainless steel or Hardox.
2. Throat Depth & Daylight Opening:
Deep boxes, cabinet doors, and channel profiles require deeper throat clearance (e.g., $400\text{ mm} - 600\text{ mm}$) and taller daylight openings to avoid part interference.
3. Number of CNC Controlled Axes:
3+1 Axis ($Y_1, Y_2, X + V$): Standard high-precision sheet metal forming.
4+1 Axis ($Y_1, Y_2, X, R + V$): Variable flange heights with automatic finger height adjustment.
6+1 / 8+1 Axis: Complex multi-step box bending with stepped tooling and tapered parts.
4. Tooling Compatibility:
Ensure your press brake supports European standard, Promecam, or WILA New Standard hydraulic tool clamping for quick 15-second tool setup changes.
7. Frequently Asked Questions (FAQ)
Q1: What is the main difference between an NC torsion bar press brake (WD67Y/WD67K) and an electro-hydraulic CNC press brake (WF67K-E)?
A: Torsion bar machines use a mechanical shaft to force synchronization, which cannot compensate for off-center loads or deflection, resulting in lower repeatability ($\pm 0.1\text{ mm}$). Electro-hydraulic press brakes (WF67K-E) use dual linear optical scales and independent Rexroth servo valves for active closed-loop feedback, achieving $\pm 0.01\text{ mm}$ precision, multi-axis control, and automatic crowning.
Q2: Why is CNC mechanical crowning better than hydraulic cylinder crowning in the lower table?
A: Hydraulic crowning cylinders can experience seal degradation, uneven pressure distribution over time, and oil temperature variations. Mechanical CNC crowning uses a motor-driven precision dual-wedge mechanism across the entire bed length, delivering permanent, micron-accurate curve compensation that is directly synchronized with the CNC controller.
Q3: What safety standards do RONGWIN press brakes comply with?
A: All RONGWIN press brakes are fully certified under CE standards, complying with European Machinery Directive 2006/42/EC. We integrate optical laser safety systems such as Lazersafe IRIS or DSP Laser Guards, optical interlocks on side and rear gates, and dual-circuit safety relays.
Q4: Does RONGWIN provide lifetime service and operator training?
A: Yes. RONGWIN operates on the "Partner for Life" commitment. Every machine includes comprehensive operational manuals, pre-shipment FAT video inspections, on-site/remote commissioning guidance, 3-year warranty on core components, and lifetime access to spare parts and custom tooling design.
8. Partner with RONGWIN: Smart Custom Sheet Metal Solutions
As an industry-leading China press brake manufacturer with 15+ years of OEM/ODM expertise and installations in over 150 countries, Nanjing RONGWIN Machinery Technology Co., Ltd. delivers turnkey sheet metal fabrication equipment tailored to your exact manufacturing challenges.
Whether you need a single high-precision CNC brake press, a customized tandem system, or an automated robotic bending cell:
